KTM 300 EXC TPI 2019 Repair Manual

18 ENGINE
234
Guideline
Piston/cylinder - mounting clearance (All 250 models)
New condition 0.050 … 0.074 mm
(0.00197 … 0.00291 in)
Wear limit 0.10 mm (0.0039 in)
Piston/cylinder - mounting clearance (All 300 models)
New condition 0.050 … 0.085 mm
(0.00197 … 0.00335 in)
Wear limit 0.10 mm (0.0039 in)

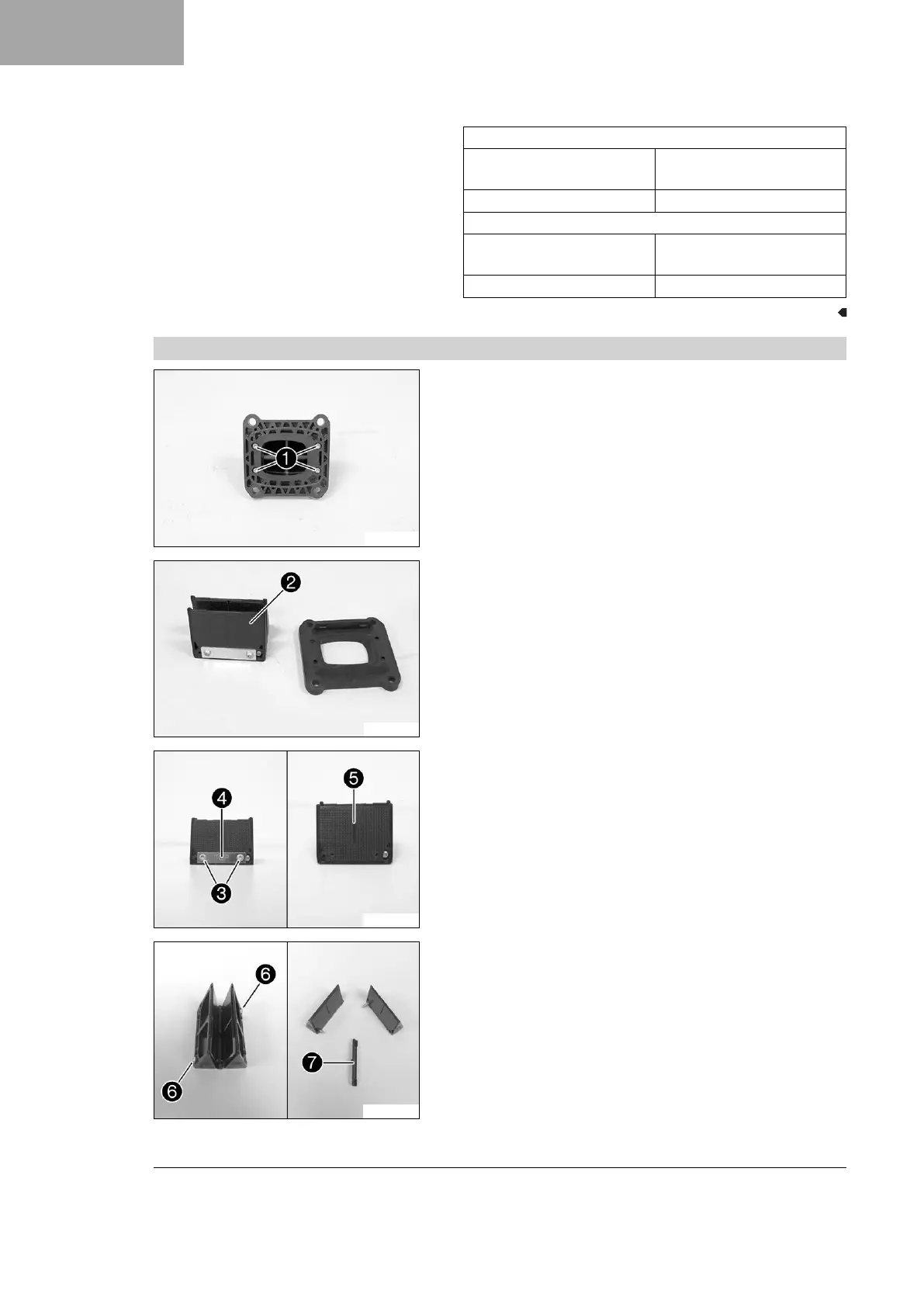

18.5.16 Disassemble the reed valve housing
311407-10
–
Remove screws
1
.
311409-10
–
Remove the reed valve housing
2
from the support plate.
G01317-10
–
Remove screws
3
on both sides.
–
Take off clamping plate
4
on both sides.
–
Remove the outer reed valve
5
on both sides.
G01318-10
–
Remove screws
6
.
–
Separate the reed valve holders. Remove holding strip
7
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
