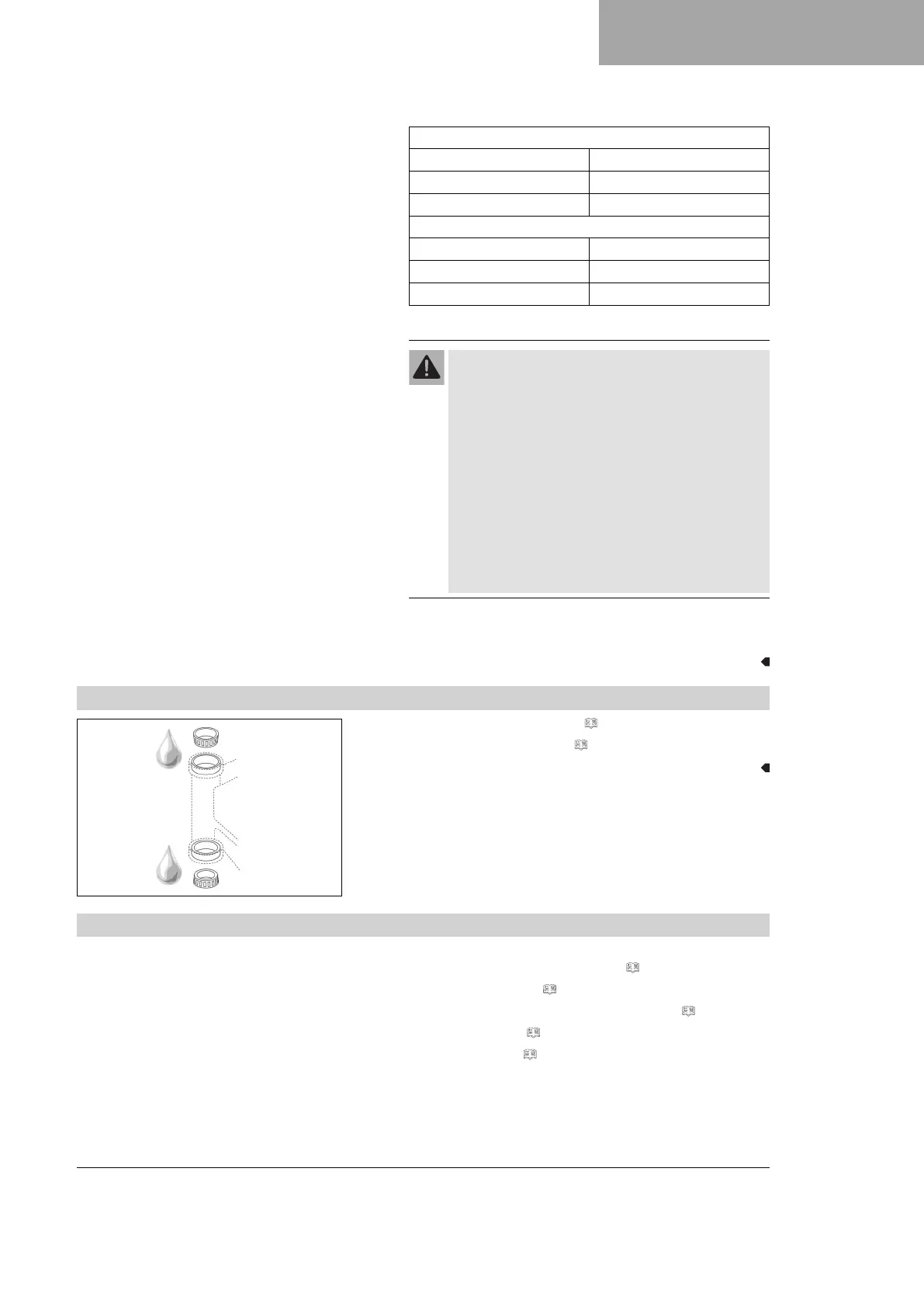

KTM 300 EXC TPI 2019 Repair Manual

FORK, TRIPLE CLAMP 6
37
Guideline
Rebound damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Alternative 2
Warning
Danger of accident Modifications to the suspen-
sion setting may seriously alter the handling char-
acteristic.
Extreme modifications to the suspension setting
may cause a serious deterioration in the handling
characteristic and overload components.
– Only make adjustments within the
recommended range.
–
Ride slowly to start with after making adjust-
ments to get the feel of the new handling char-
acteristic.
– Set the adjusters to the positions determined upon
removal.
6.10.9 Lubricating the steering head bearing
H02387-01
– Remove the lower triple clamp. ( p. 37)
– Install the lower triple clamp. ( p. 38)
6.10.10 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
– Remove the front wheel. ( p. 141)
– Remove the headlight mask with the headlight. ( p. 135)
– Remove the fork legs. ( p. 17)
– Remove front fender. ( p. 134)
–
Remove the handlebar cushion.
