KTM 300 EXC TPI 2019 Repair Manual

17 LIGHTING SYSTEM, INSTRUMENTS
182

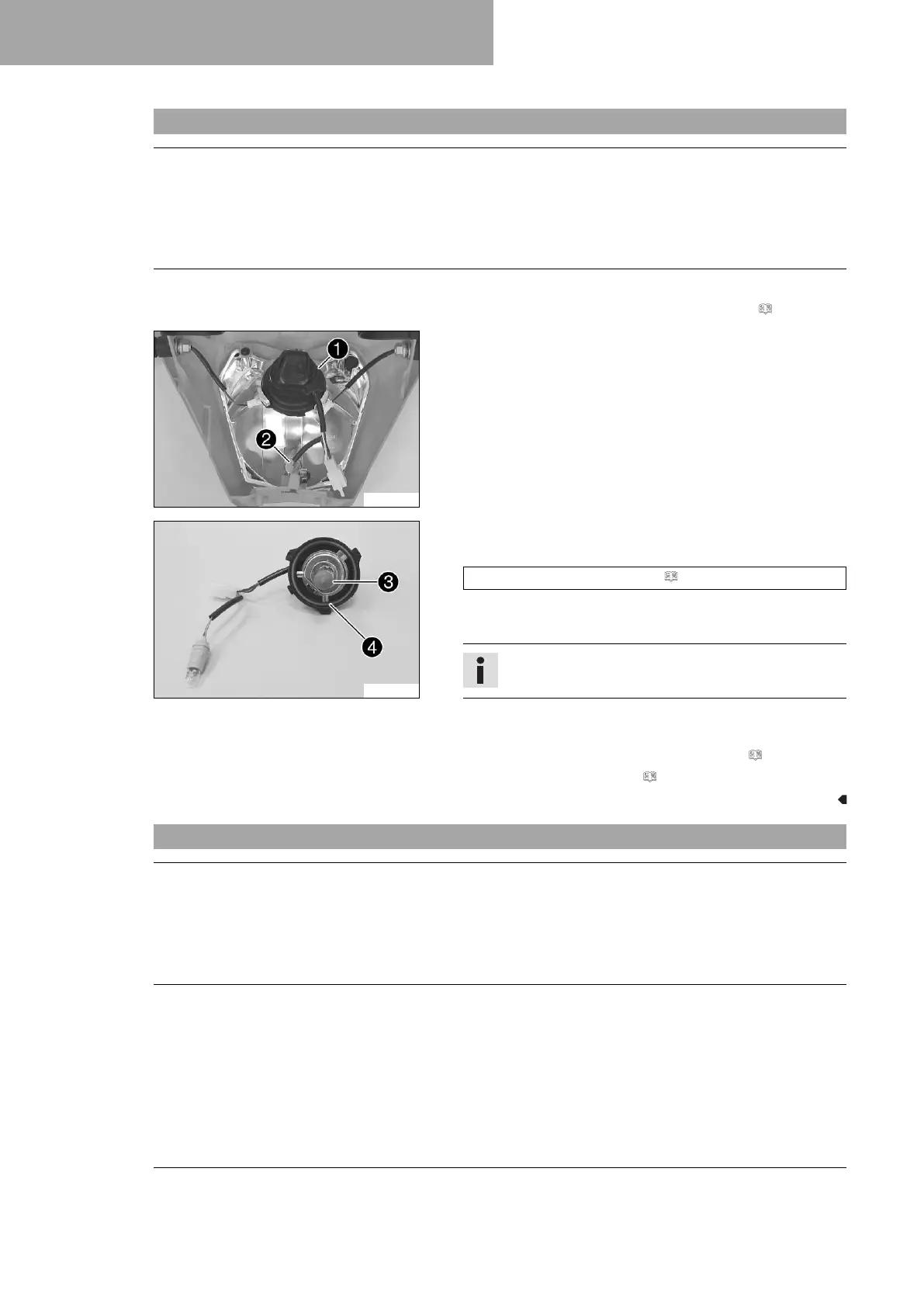

17.1 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the brightness.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
–
Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 135)
E00358-10
Main work
–
Turn protection cap
1
together with the underlying bulb
socket counterclockwise all the way and remove it.
–
Pull bulb socket
2
of the position light out of the reflector.
E00359-10
–
Pull out headlight bulb
3
.
– Insert the new headlight bulb.
Headlight (HS1/socket BX43t) ( p. 317)
– Insert the protection cap with the bulb socket into the reflector
and turn it clockwise all the way.
Info
Ensure that O-ring
4
is seated properly.
– Insert the bulb socket of the position light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 135)
– Check the headlight setting. ( p. 183)
17.2 Changing the turn signal bulb (All EXC models)
Note
Damage to reflector Grease on the reflector reduces the brightness.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
