KTM 300 EXC TPI 2019 Repair Manual

FORK, TRIPLE CLAMP 6
51
B03584-10

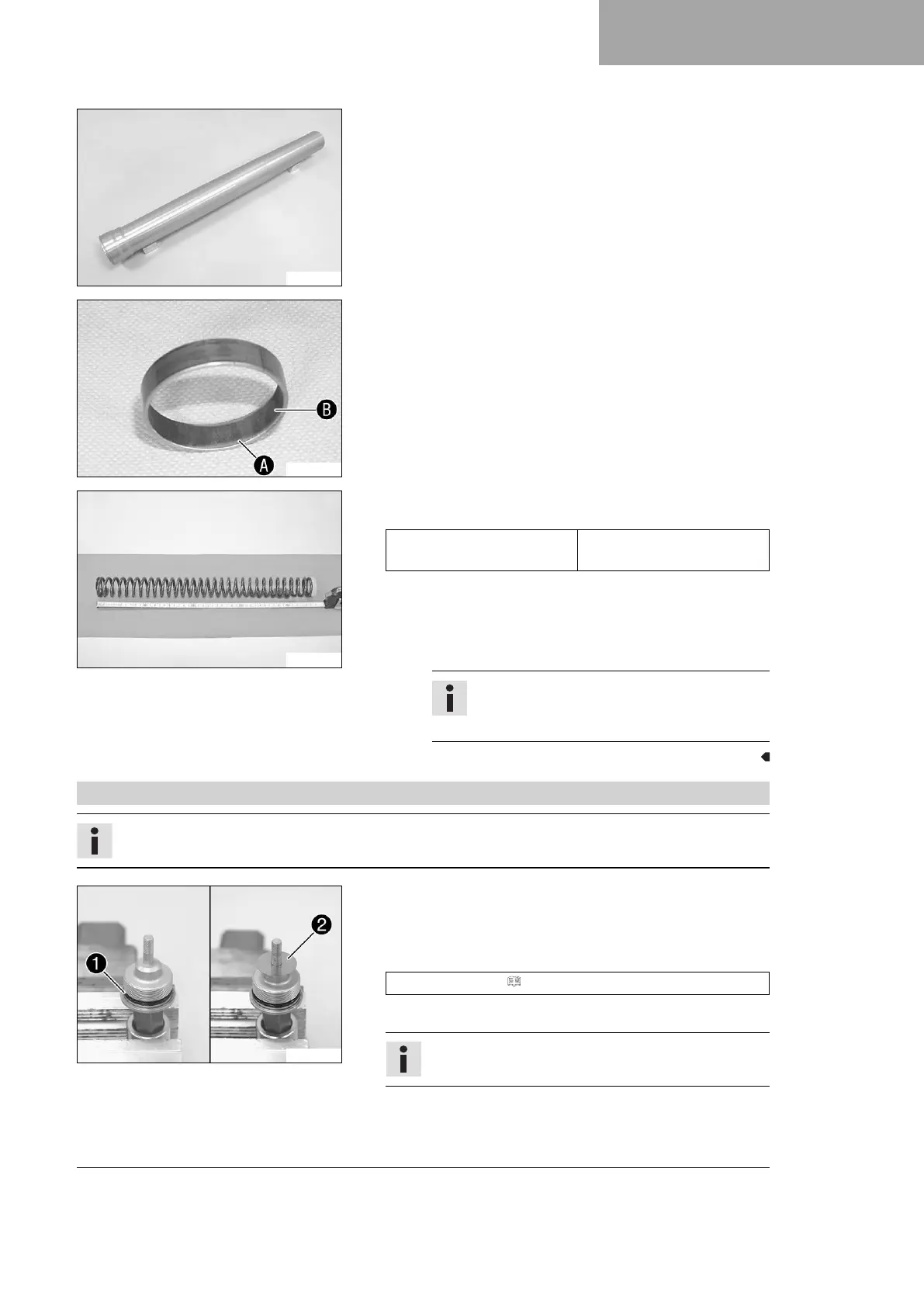

– Check the outer tube for damage.
» If damage is found:
– Change the outer tube.
200665-10
– Check the surface of the sliding bushings.
»
When bronze-colored layer
A
becomes visible under glid-
ing layer
B
:
– Change the guiding bushes.
B04555-10
– Check the spring length.
Guideline
Spring length with preload
spacer(s)
474 mm (18.66 in)
» If the measured value is greater than the specified value:
– Reduce the thickness of the preload spacers.
» If the measured value is less than the specified value:
– Increase the thickness of the preload spacers.
Info
There may only be one preload spacer installed,
or none at all.
6.11.6 Assembling the tap compression
Info
The procedures are the same on both fork legs.
B04508-10
– Mount the tap compression on a suitable hexagon socket and
clamp into a vise.
–
Mount O-ring
1
.
– Grease O-ring.
Lubricant (T158) ( p. 360)
–
Mount shim stack
2
.
Info
Mount the smaller shims below.
