18 ENGINE
256

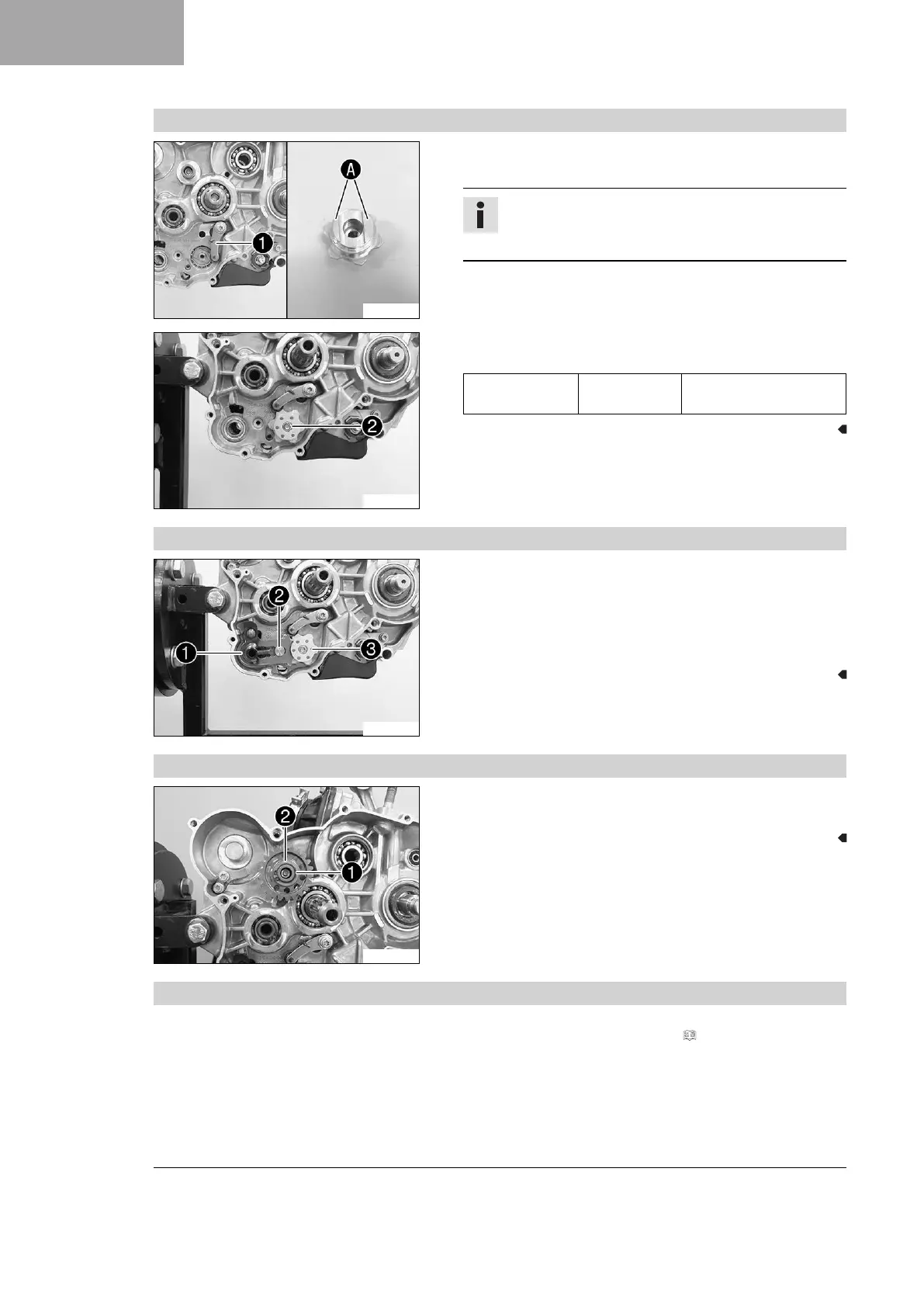

18.6.11 Installing the shift drum locating unit
D04473-10
–
Press locking lever
1
to the left and position the shift drum
locating unit.
Info
The flat surfaces
A
of the shift drum locating unit are
not symmetric.
– Relieve tension from the locking lever.
D04470-11
–
Mount and tighten screw
2
.
Guideline
Screw, shift
drum locating
M6 10 Nm (7.4 lbf ft)
Loctite
®
243™
18.6.12 Installing the shift shaft
D04469-11
–
Slide shift shaft
1
with the washer into the bearing seat.
–
Push sliding plate
2
away from shift drum locating unit
3
.
Insert the shift shaft all the way.
– Let the sliding plate engage in the shift drum locating unit.
– Shift through the transmission.
18.6.13 Installing the intermediate kick starter gear
D04468-10
– Mount intermediate kick starter gear.
–
Mount lock ring
1
with washer
2
.
18.6.14 Installing the kick starter shaft
Preparatory work
– Preassemble the kick starter shaft. ( p. 248)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
