KTM 300 EXC TPI 2019 Repair Manual

FORK, TRIPLE CLAMP 6
33

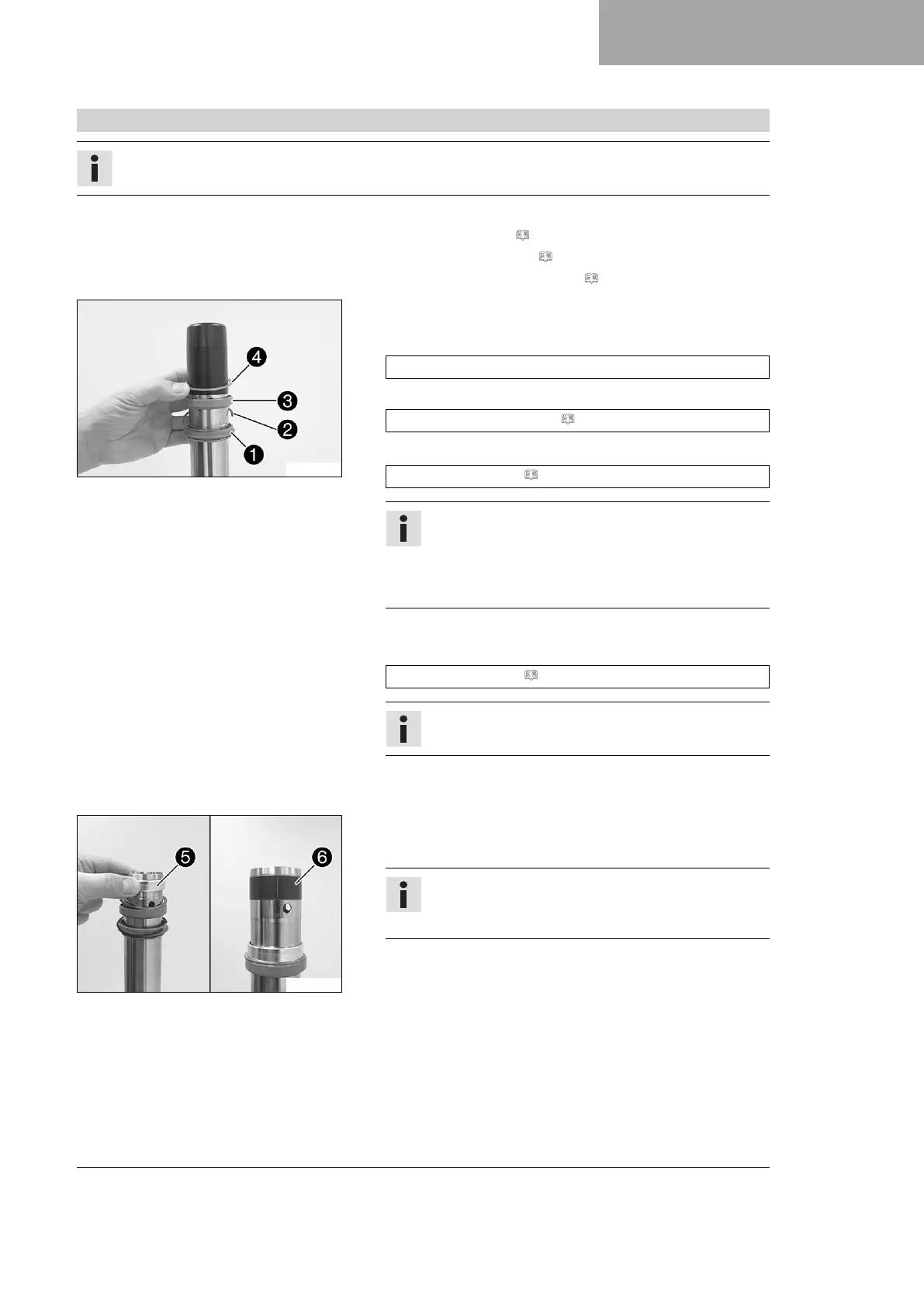

6.10.8 Assembling the fork legs
Info
The operations are the same on both fork legs.
Preparatory work
– Check the fork legs. ( p. 27)
– Assemble the cartridge. ( p. 29)
– Assemble the tap compression. ( p. 28)
R00037-10
Main work
– Clamp the inner tube using the axle clamp.
Guideline
Use soft jaws.
– Mount the special tool.
Protecting sleeve (T1401) ( p. 373)
–
Grease and push on dust boot
1
.
Lubricant (T14034) ( p. 360)
Info
Always change the dust boot, seal ring, lock ring, and
support ring.
Mount the sealing lip with the spring expander facing
down.
–
Push on lock ring
2
.
–
Grease and push on seal ring
3
.
Lubricant (T14034) ( p. 360)
Info
Sealing lip downward, open side upward.
–
Push on support ring
4
.
– Remove the special tool.
B03539-11
–
Push on lower sliding bushing
5
.
–
Mount upper sliding bushing
6
.
Info
Without using a tool, pull the stack slightly apart by
hand.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
