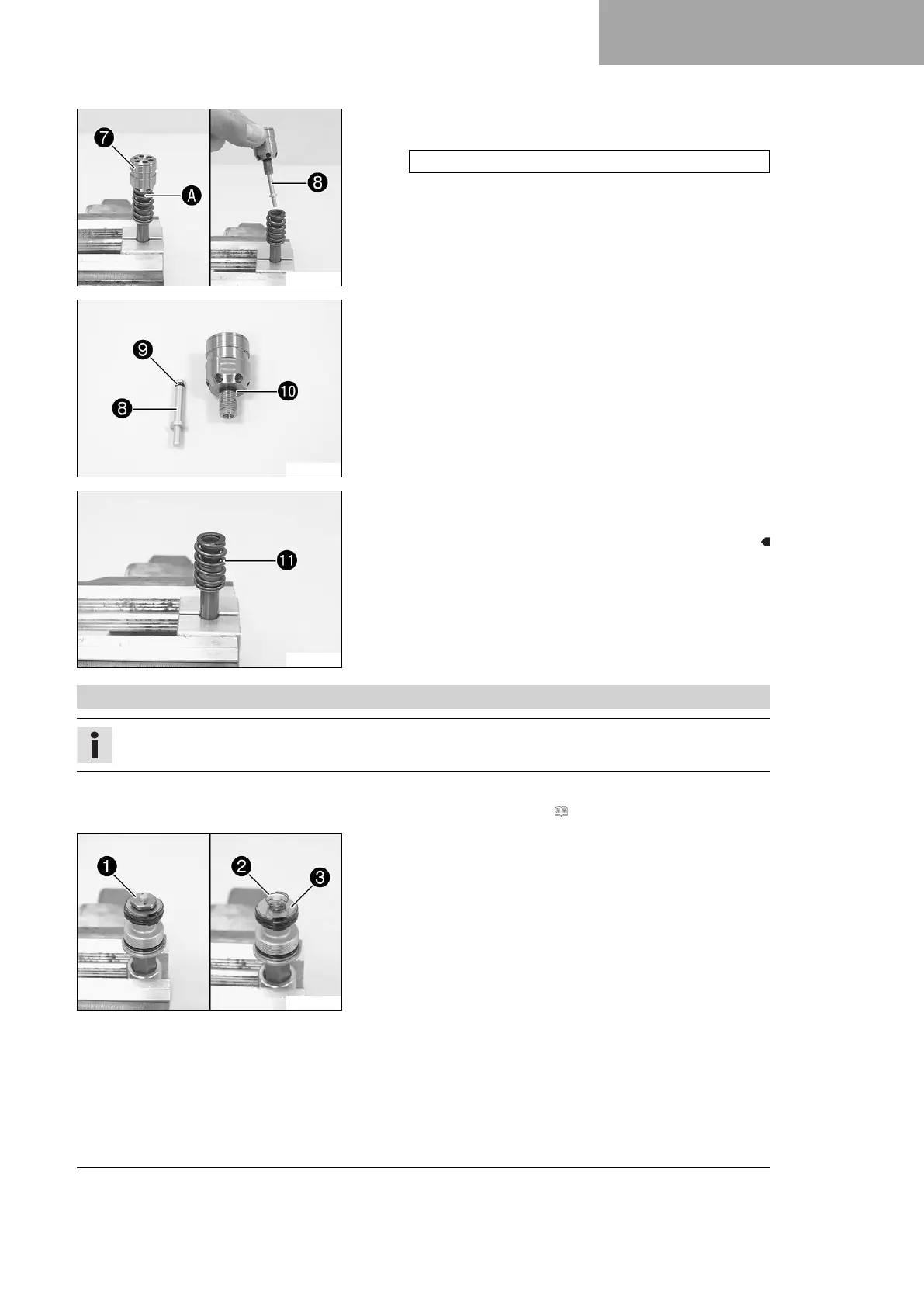

FORK, TRIPLE CLAMP 6
49
B04535-10
Warm up the piston rod in area
A
.
Guideline
50 °C (122 °F)
Remove piston
7
with setting needle
8
.
B04536-10
Pull setting needle
8
out of the piston.
Remove O-rings
9
and
bk
.
B04537-10
Remove spring
bl
.
Unclamp the piston rod.
6.11.4 Disassembling the tap compression
Info
The procedures are the same on both fork legs.
Preparatory work
Disassemble the fork legs. ( p. 43)
B04504-10
Main work
Mount the tap compression on a suitable hexagon socket and
clamp into a vise.
Remove nut
1
.
Remove spring
2
.
Remove washer
3
.
