KTM 300 EXC TPI 2019 Repair Manual

18 ENGINE
252
D04493-11
–

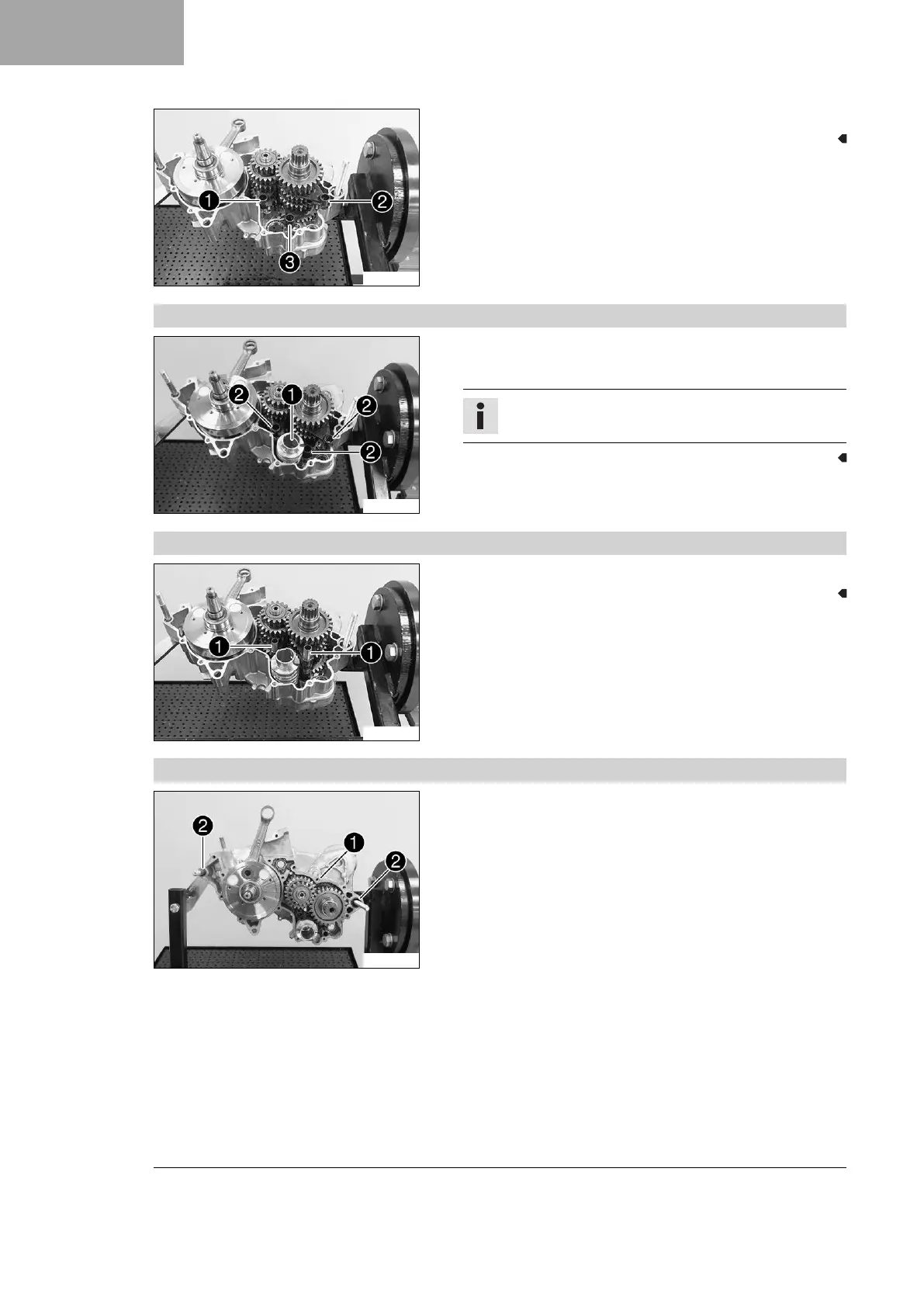

Position shift forks
1
,
2
, and
3
in the sliding gears.
18.6.4 Installing the shift drum
D04492-11
–
Push shift drum
1
into the bearing seat.
–
Position shift forks
2
in the shift grooves.
Info
Do not misplace the shift rollers.
18.6.5 Installing the shift rails
D04491-10
–
Mount shift rails
1
.
18.6.6 Installing the left engine case section
D04490-10
– Coat the sealing area thinly with grease.
–
Mount engine case gasket
1
.
–
Check that dowels
2
are seated correctly.
