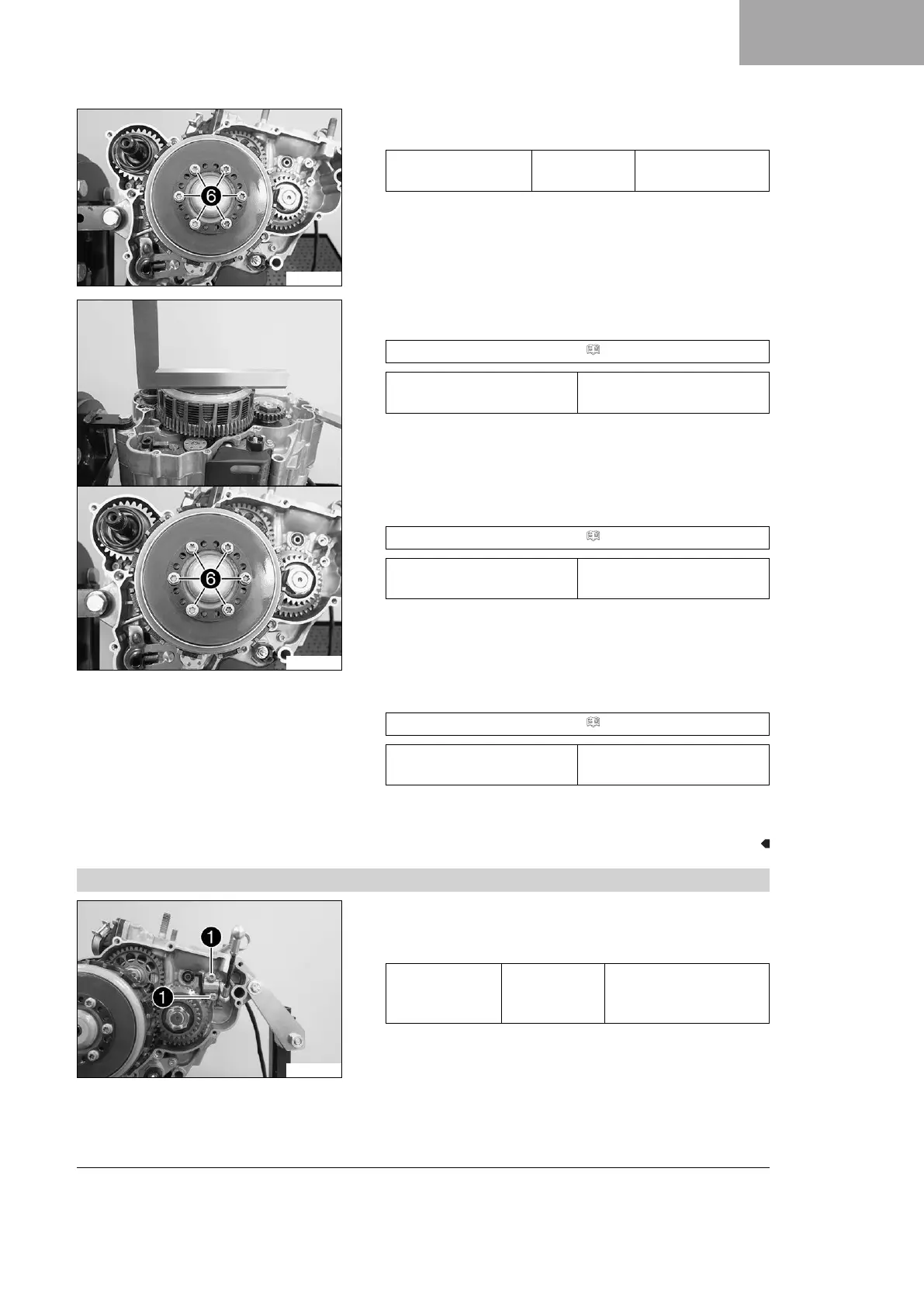

KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
261
D04446-11
–
Mount screws
6
and tighten in a crisscross pattern.
Guideline
Screw, clutch spring
retainer
M5 6 Nm (4.4 lbf ft)
D04447-10
– Using a straightedge and the special tool, check the spring
washer for distortion.
Feeler gauge (59029041100) ( p. 369)
Spring washer distortion 0 … 0.10 mm (0 …
0.0039 in)
» If the specified value is not reached:
–
Remove screws
6
and mount the spring retainer with
marking II.
– Using a straightedge and the special tool, check the spring
washer for distortion.
Feeler gauge (59029041100) ( p. 369)
Spring washer distortion 0 … 0.10 mm (0 …
0.0039 in)
» If the specified value is not reached:
–
Remove screws
6
and mount the spring retainer with
marking III.
– Using a straightedge and the special tool, check the spring
washer for distortion.
Feeler gauge (59029041100) ( p. 369)
Spring washer distortion 0 … 0.10 mm (0 …
0.0039 in)
» If the specified value is not reached:
– Change the clutch facing discs.
18.6.18 Installing the clutch cover
D04445-11
– Position the bearing support with the angle lever and linkage.
–
Mount and tighten screws
1
.
Guideline
Screw, exhaust
control bearing
support
M5 6 Nm (4.4 lbf ft)
Loctite
®
243™
