KTM 300 EXC TPI 2019 Repair Manual

FORK, TRIPLE CLAMP 6
23
B03525-14
–

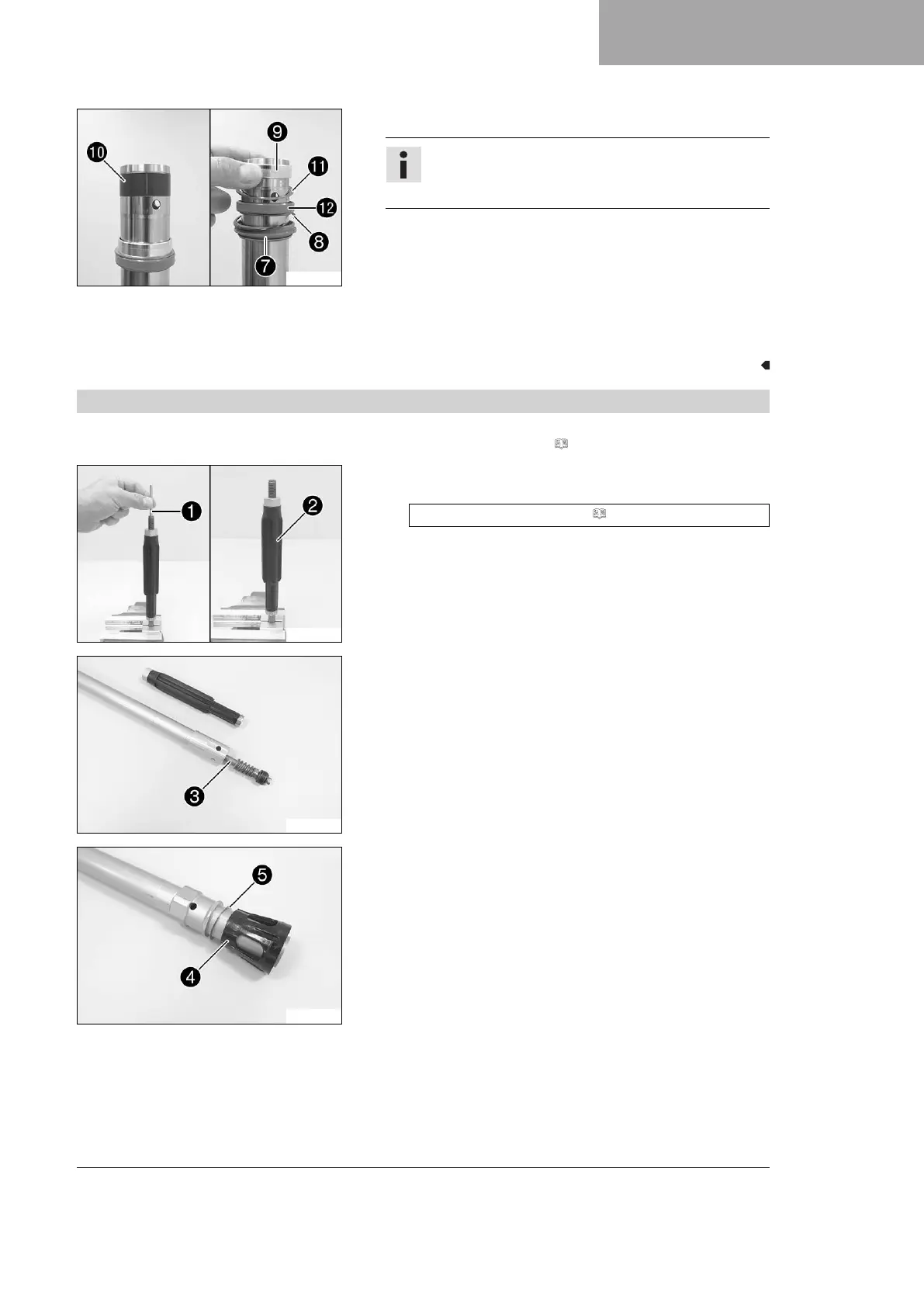

Remove upper sliding bushing
bk
.
Info
Without using a tool, pull the stack slightly apart by
hand.
–
Take off lower sliding bushing
9
.
–
Take off support ring
bl
.
–
Take off seal ring
bm
.
–
Take off lock ring
8
.
–
Take off dust boot
7
.
– Unclamp the fork leg.
6.10.3 Disassembling the cartridge
Preparatory work
– Disassemble the fork legs. ( p. 20)
B04517-10
Right cartridge
– Clamp the piston rod with the special tool.
Clamping stand (T14016S) ( p. 374)
–
Remove adjusting tube
1
.
–
Remove fluid barrier
2
from the piston rod.
B04532-10
–
Take piston rod
3
out of the cartridge.
B04533-10
–
Take spring seat
4
and washer
5
off of the cartridge.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
