KTM 300 EXC TPI 2019 Repair Manual

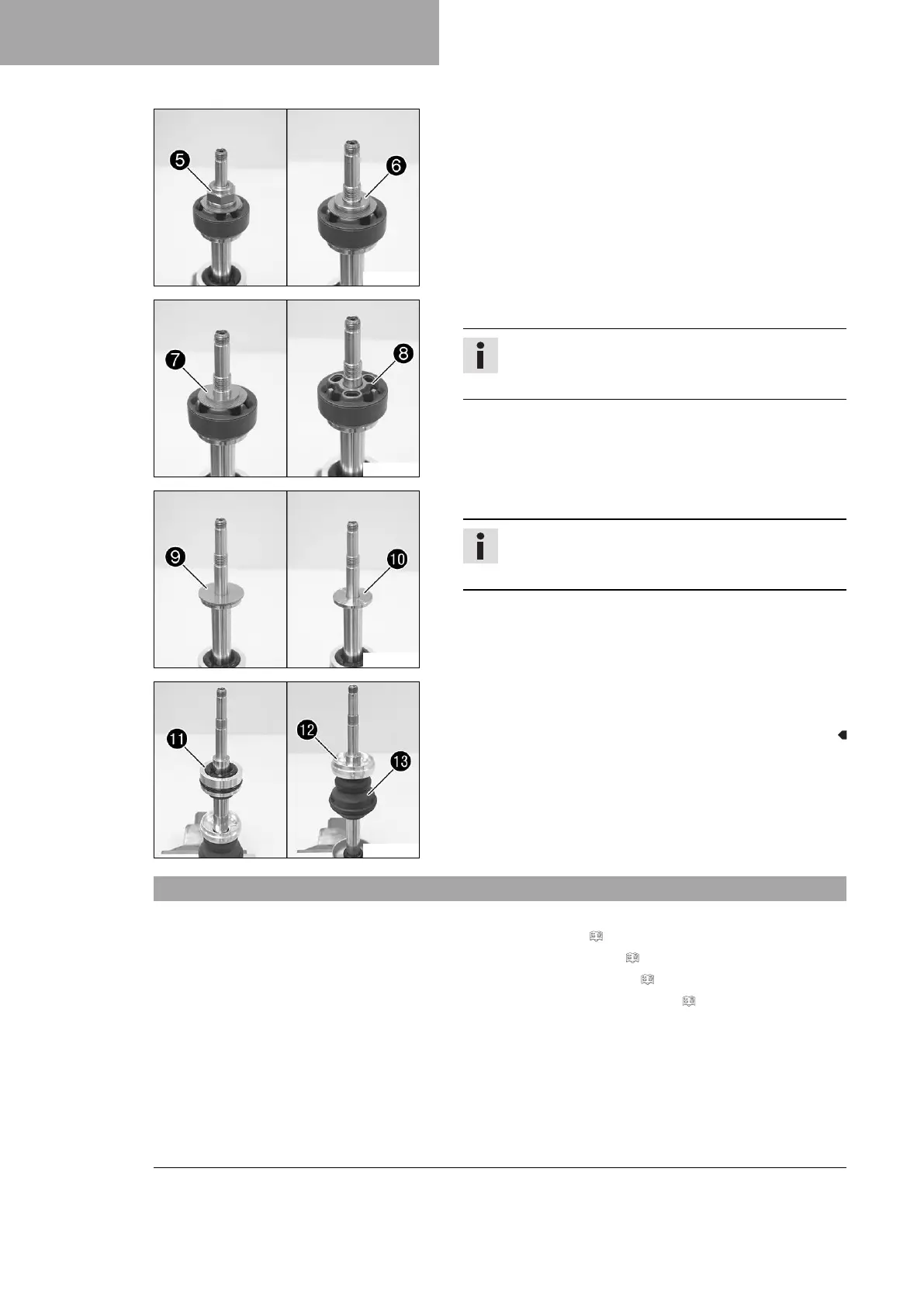

9 SHOCK ABSORBER, SWINGARM
88
B04481-10
–
Remove nut
5
.
–
Remove washer
6
.
B04482-10
–
Remove rebound shim stack
7
.
Info
Guide the rebound shim stack onto a screwdriver and
put them to one side together.
–
Remove piston
8
.
B04483-10
–
Remove compression shim stack
9
.
Info
Guide the compression shim stack onto a screwdriver
and put them to one side together.
–
Remove rebound washer
bk
.
B04484-10
–
Remove seal ring retainer
bl
.
–
Remove locking cap
bm
and rubber buffer
bn
.
9.16 Replacing the pilot bushing
Preparatory work
– Remove the spring. ( p. 84)
– Disassemble the damper. ( p. 85)
– Disassemble the piston rod. ( p. 87)
– Disassemble the seal ring retainer. ( p. 86)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
