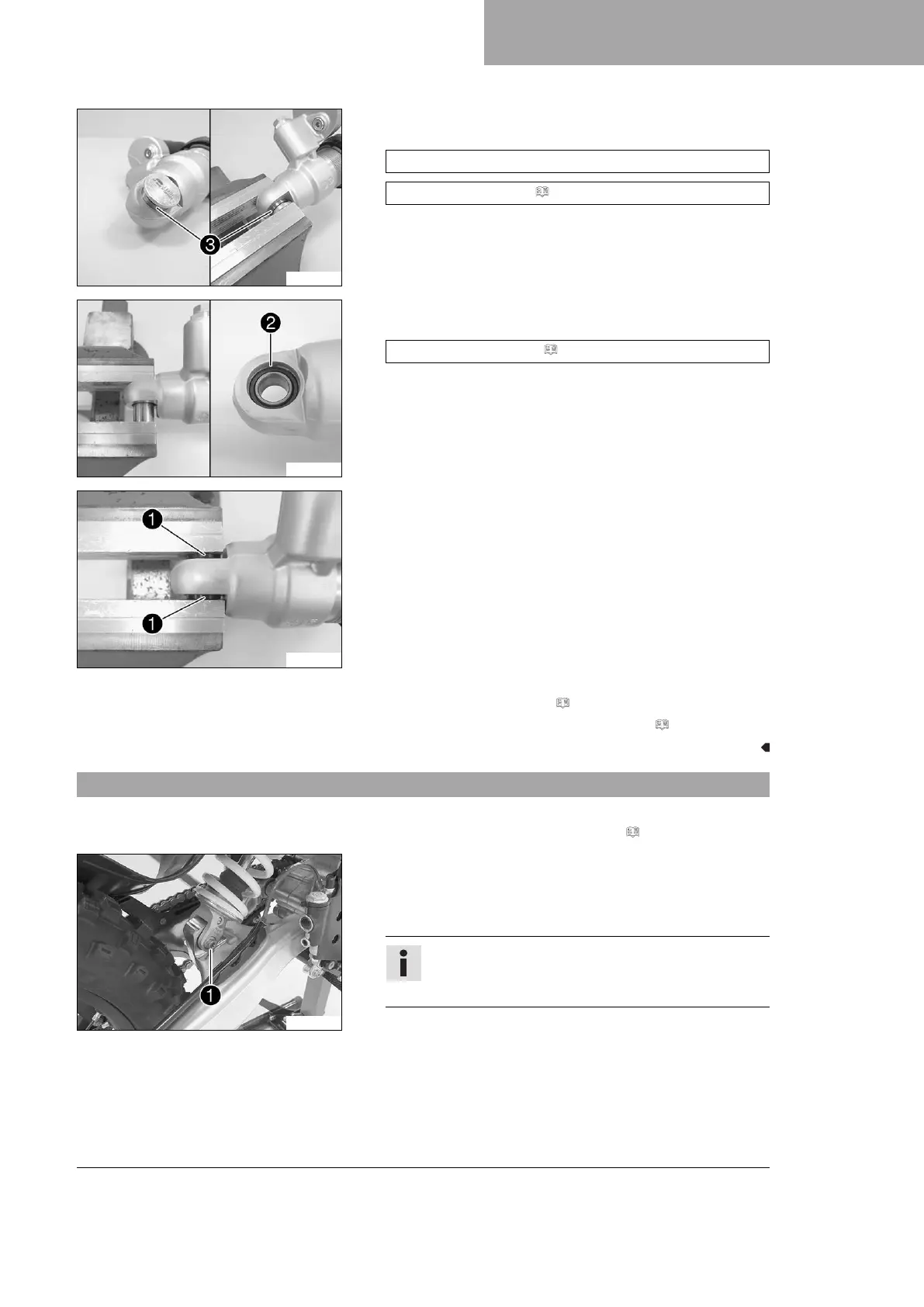

SHOCK ABSORBER, SWINGARM 9
103
B04459-11
–
Position the new heim joint
3
and the special tool.
Guideline
Use soft jaws.
Pressing tool (T1206) ( p. 373)
– Press the heim joint all the way in.
B04456-10
– Press the heim joint against the lock ring using the special
tool.
Pressing tool (T1207S) ( p. 373)
–
Mount second lock ring
2
.
B04458-11
–
Position both collar bushings
1
and press in.
Finishing work
– Install the shock absorber. ( p. 83)
– Remove the motorcycle from the lift stand. ( p. 12)
9.29 Changing the heim joint on the swingarm
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
R02806-10
Main work
–
Remove screw
1
and lower the rear wheel with the swingarm
as far as possible without blocking the rear wheel. Secure the
rear wheel in this position.
Info
Raise the wheel slightly to make it easier to remove the
screw.
– Swing the shock absorber to the rear.
