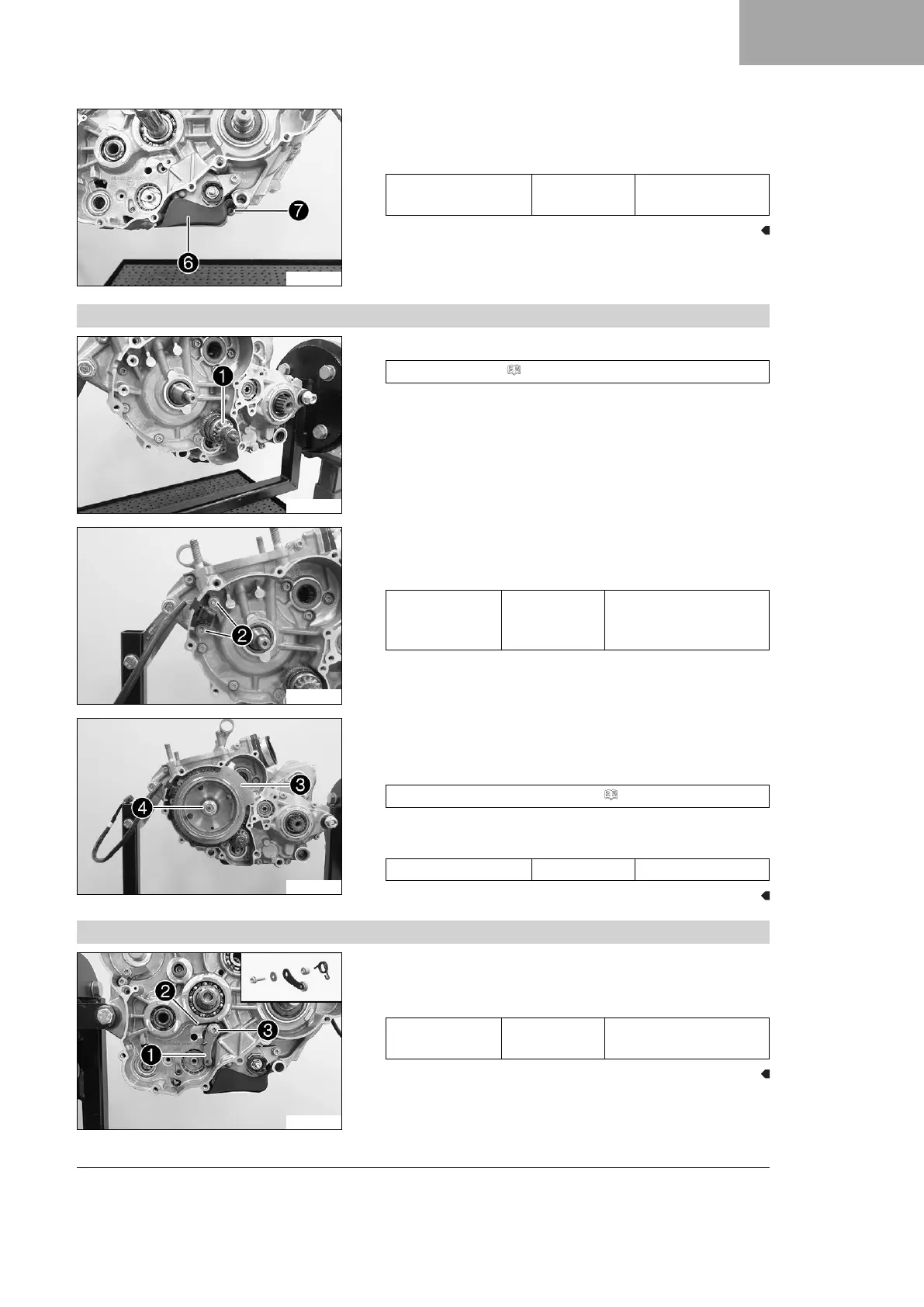

KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
255
D04478-11
–
Position cover
6
.
–
Mount and tighten screw
7
.
Guideline
Screw, starter motor
protection cap
M6 8 Nm (5.9 lbf ft)
18.6.9 Installing the rotor
D04477-11
–
Grease and mount Bendix
1
.
Lubricant (T625) ( p. 360)
D04476-11
– Position the crankshaft position sensor.
–
Mount and tighten screws
2
.
Guideline
Screw,
crankshaft
position sensor
M5 6 Nm (4.4 lbf ft)
Loctite
®
243™
D04474-11
– Ensure that the woodruff key is seated properly.
– Grease the cone.
–
Mount the rotor and hold it with special tool
3
.
Holding wrench (54629012200) ( p. 364)
–
Mount washer and nut
4
. Tighten the nut.
Guideline
Nut, rotor M12x1 60 Nm (44.3 lbf ft)
18.6.10 Installing the locking lever
D04472-10
–
Position locking lever
1
with the sleeve and spring
2
.
–
Mount and tighten screw
3
with the washer.
Guideline
Screw, locking
lever
M5 6 Nm (4.4 lbf ft)
Loctite
®
243™
