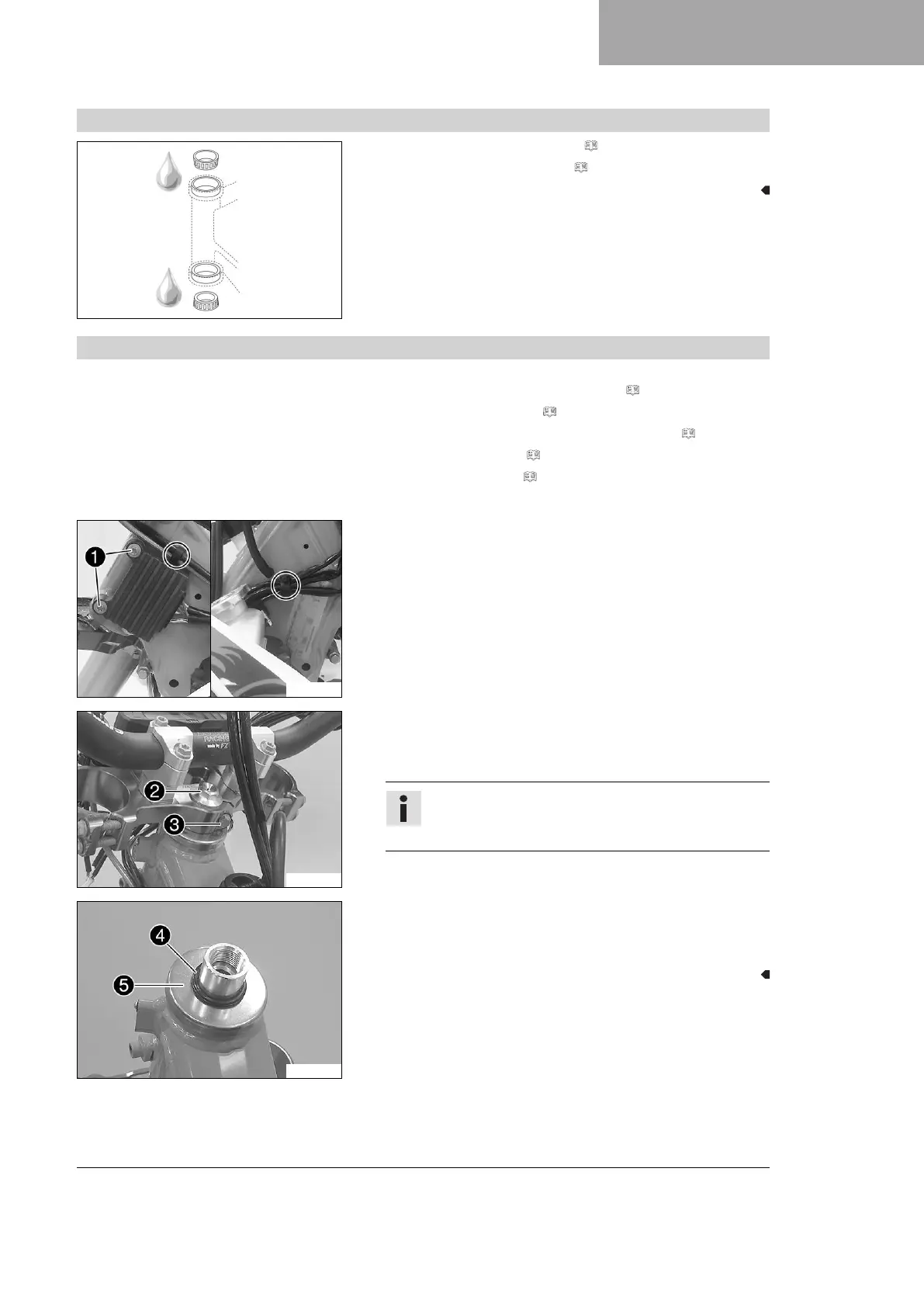

KTM 300 EXC TPI 2019 Repair Manual

FORK, TRIPLE CLAMP 6
61
6.11.9 Lubricating the steering head bearing
H02387-01
– Remove the lower triple clamp. ( p. 61)
– Install the lower triple clamp. ( p. 62)
6.11.10 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
– Remove the front wheel. ( p. 141)
– Remove the headlight mask with the headlight. ( p. 135)
– Remove the fork legs. ( p. 17)
– Remove front fender. ( p. 134)
– Remove the handlebar cushion.
E00923-10
Main work
–
Remove screws
1
and hang the voltage regulator to the side.
– Open the cable holder in front of the left and right radiator and
detach the wiring harness.
E00924-10
–
Remove screw
2
.
–
Remove screw
3
. Take off the upper triple clamp with the
handlebar and set it aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
E00925-10
–
Remove O-ring
4
. Remove protective ring
5
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
