KTM 300 EXC TPI 2019 Repair Manual

SHOCK ABSORBER, SWINGARM 9
105

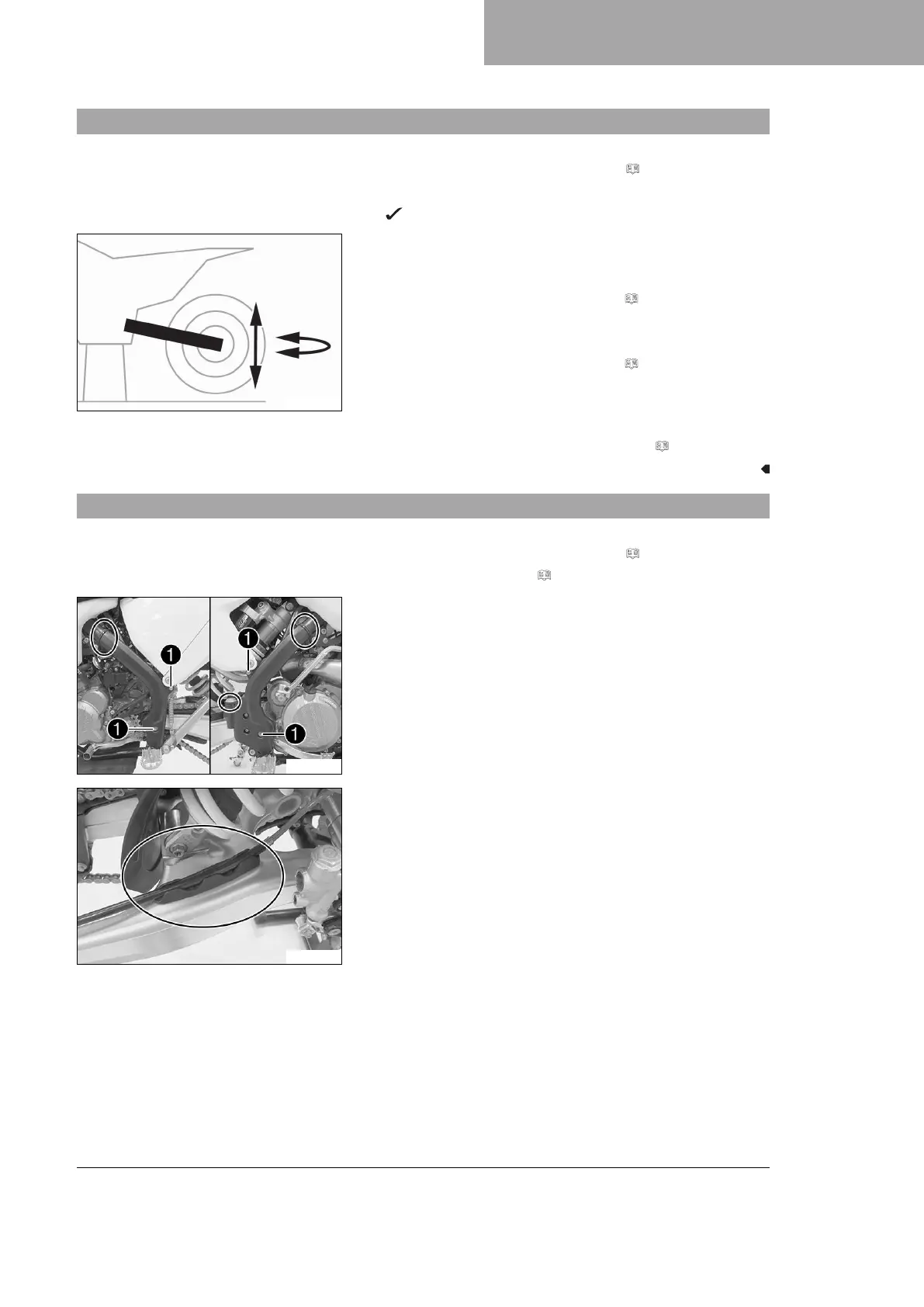

9.30 Checking the swingarm bearing for play
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
– Place a load on the front of the vehicle.
The rear wheel is not in contact with the ground.
H01898-01
Main work
– Move the swingarm up and down.
» If there is detectable play:
– Change the swingarm bearing. ( p. 108)
– Move the swingarm from one side to the other.
» If there is detectable play:
– Change the swingarm bearing. ( p. 108)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 12)
9.31 Removing the swingarm
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
– Remove the rear wheel. ( p. 144)
R02830-10
Main work
–
Remove screws
1
with the washers.
– Remove the cable ties.
– Take off the frame protector on both sides.
R02831-10
– Take the brake line out of the guide.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
