KTM 300 EXC TPI 2019 Repair Manual

9 SHOCK ABSORBER, SWINGARM
102
H01897-01
Main work
– Check the top and bottom heim joints.
– Move the swingarm up and down.
» If there is detectable play:
– Change the heim joint. ( p. 102)
Finishing work
– Remove load from the front of the vehicle.
– Remove the motorcycle from the lift stand. ( p. 12)

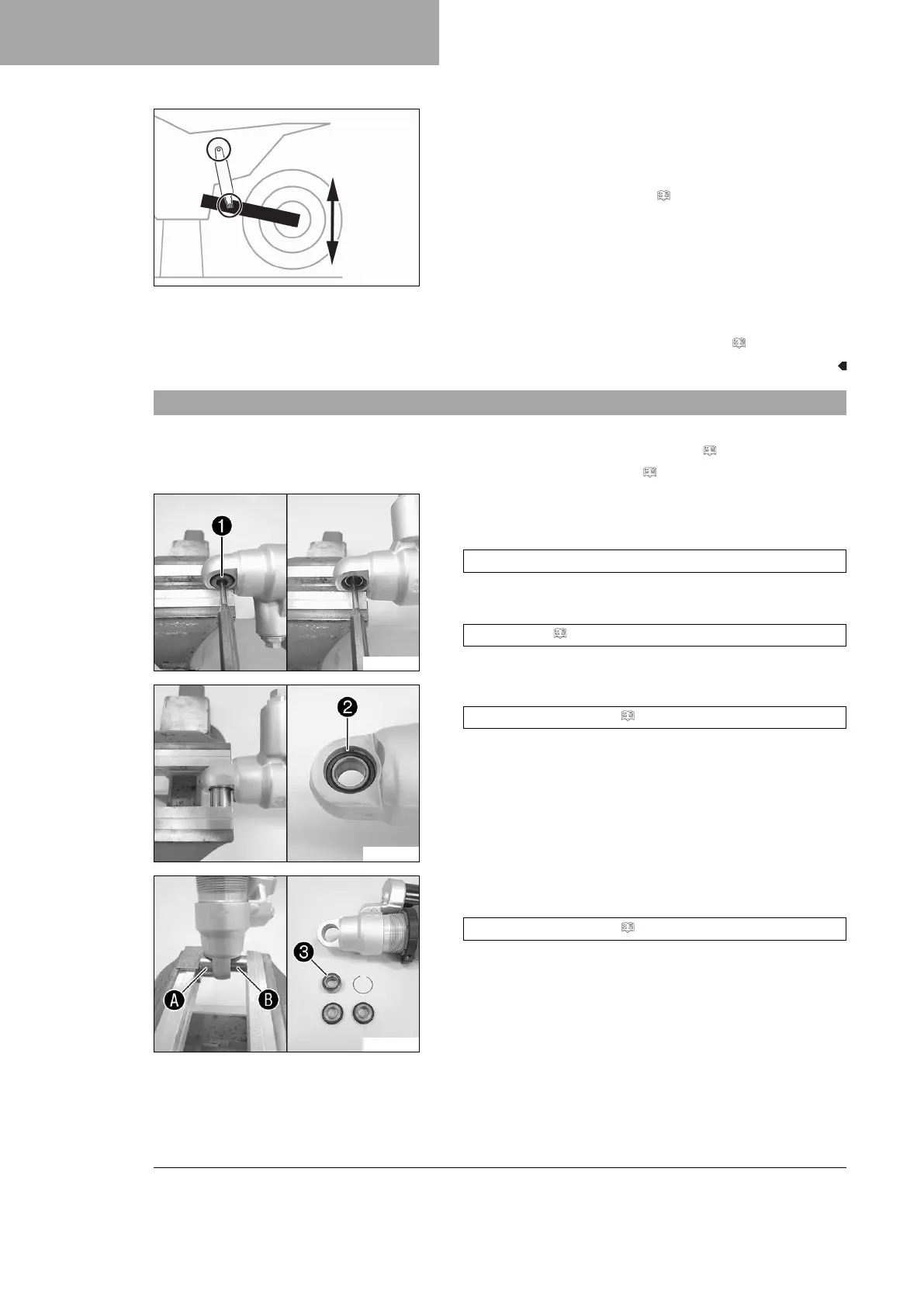

9.28 Changing the heim joint
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 12)
– Remove the shock absorber. ( p. 83)
B04455-10
Main work
– Clamp the shock absorber into the vise.
Guideline
Use soft jaws.
–
Remove both collar bushings
1
of the heim joint with a spe-
cial tool.
Drift (T120) ( p. 372)
B04456-10
– Press the heim joint against a lock ring using the special tool.
Pressing tool (T1207S) ( p. 373)
–
Remove second lock ring
2
.
B04457-10
–
Place special tool
A
underneath and press out heim joint
3
using special tool
B
.
Pressing tool (T1207S) ( p. 373)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
