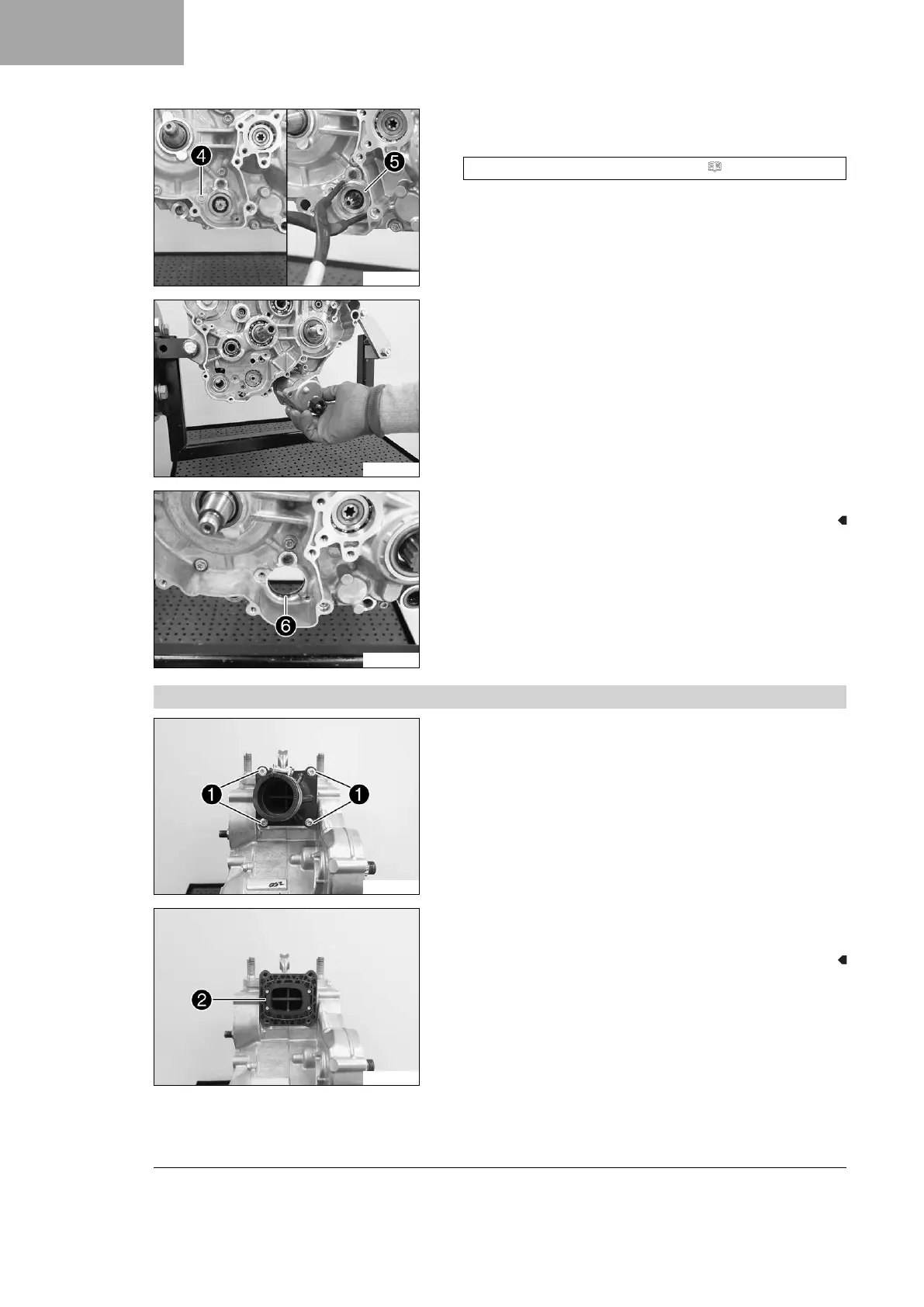

18 ENGINE

216

D04480-10

–

Remove screw

4

.

–

Remove spacer

5

using the special tool.

Footrest spring plier (58429083000) ( p. 367)

D04482-10

– Remove the starter motor.

D04484-10

–

Remove O-ring

6

.

18.4.24 Removing the reed valve housing

D04485-10

–

Remove screws

1

.

– Take off intake flange and gasket.

D04486-10

–

Remove reed valve housing

2

.

– Take off the gasket.
