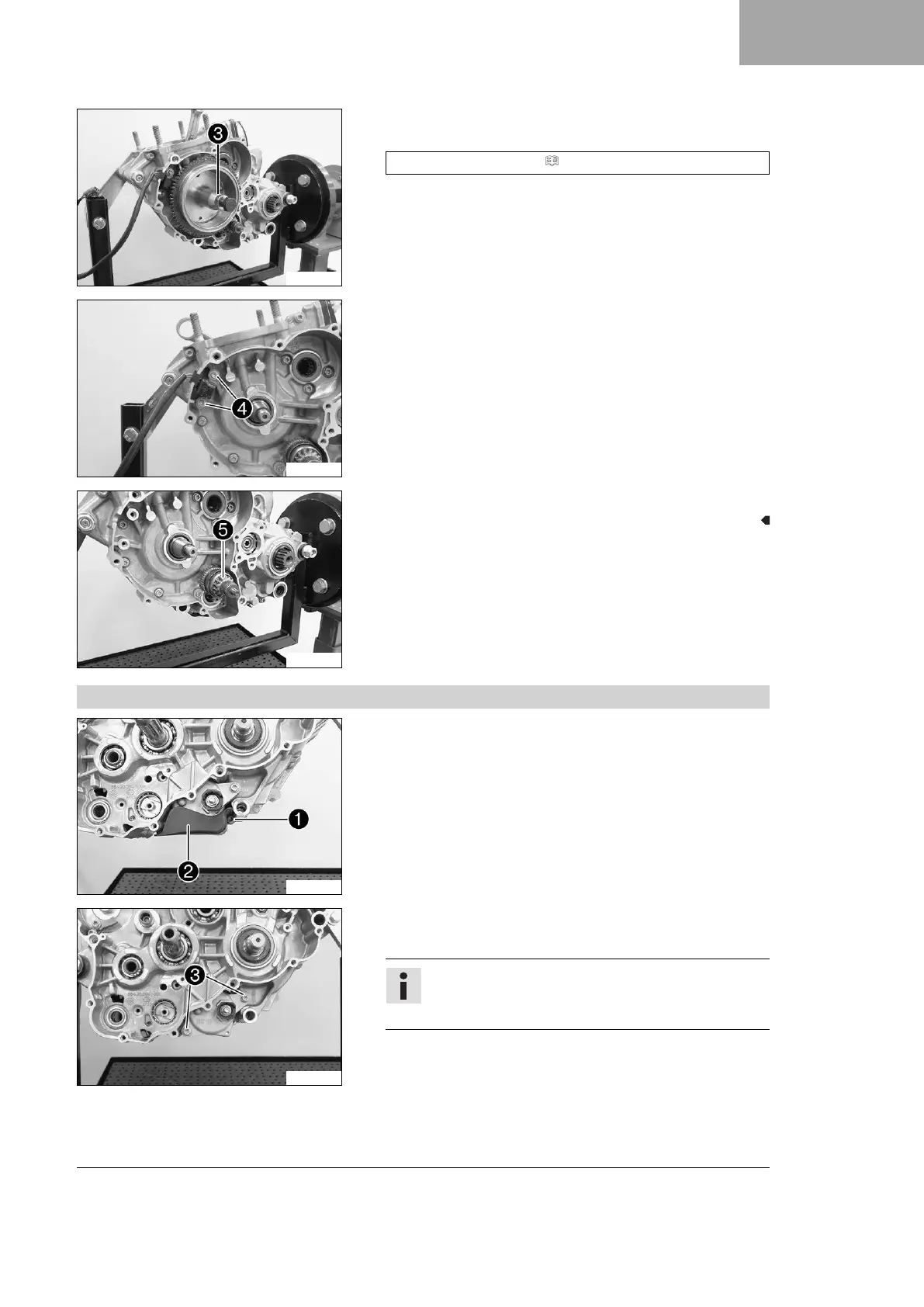

KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
215
D04475-10
–
Mount special tool
3
, apply counterpressure, and pull off the
rotor by screwing in the screw.
Puller (58012009000) ( p. 367)
D04476-10
–
Remove screws
4
.
– Take off the crankshaft position sensor.
D04477-10
–
Take off Bendix
5
.
18.4.23 Removing the starter motor
D04478-10
–
Remove screw
1
.
–
Take off cover
2
.
D04479-10
–
Remove screws
3
.
– Pull the starter motor out of the engine case as far as possible.
Info
It is not possible to completely remove the starter
motor.
