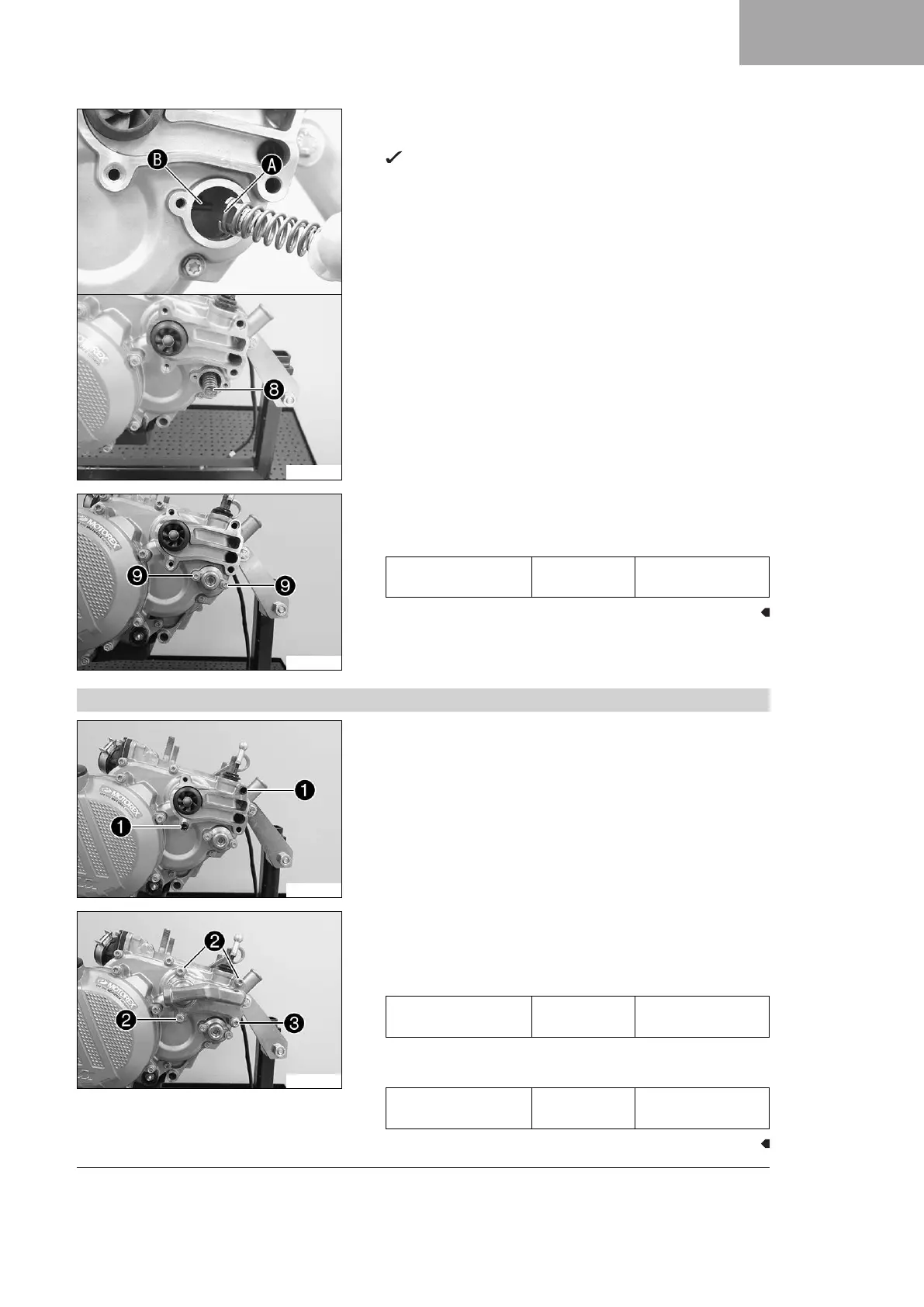

KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
263
R04643-10
–
Mount adjusting spring
8
with the auxiliary spring and spring
insert.
The recess
A
in the spring insert engages in angle
lever
B
.
R04639-11
– Position the cap.
–
Mount and tighten screws
9
.
Guideline
Screw, exhaust con-
trol cap
M5 5 Nm (3.7 lbf ft)
18.6.19 Installing the water pump cover
R04638-11
–
Mount dowels
1
.
D04437-11
– Mount the molded ring.
– Position the water pump cover.
–
Mount and tighten screws
2
.
Guideline
Screw, water pump
cover
M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screw
3
with the seal ring.
Guideline
Screw, water pump
cover
M6 10 Nm (7.4 lbf ft)
