KTM 300 EXC TPI 2019 Repair Manual

9 SHOCK ABSORBER, SWINGARM
86
B04471-10

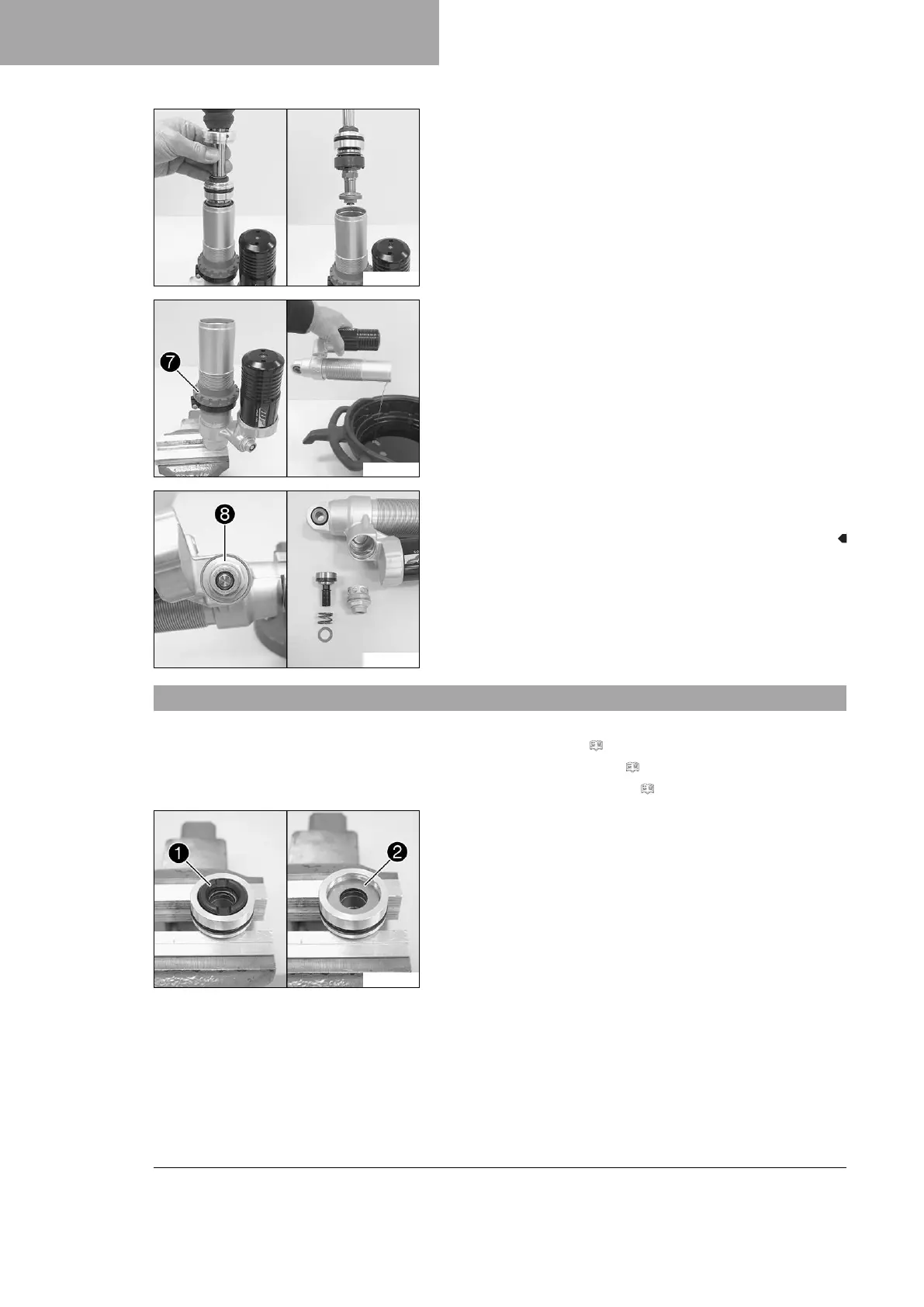

– Remove the piston rod.
B04476-10
–
Remove adjusting ring
7
with the clamping ring.
– Drain the oil.
B04477-10
–
Remove compression adjuster
8
. Remove the washer, spring,
and piston.
9.14 Disassembling the seal ring retainer
Preparatory work
– Remove the spring. ( p. 84)
– Disassemble the damper. ( p. 85)
– Disassemble the piston rod. ( p. 87)
B04492-10
Main work
–
Remove rebound rubber
1
.
–
Remove washer
2
.
