KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
203

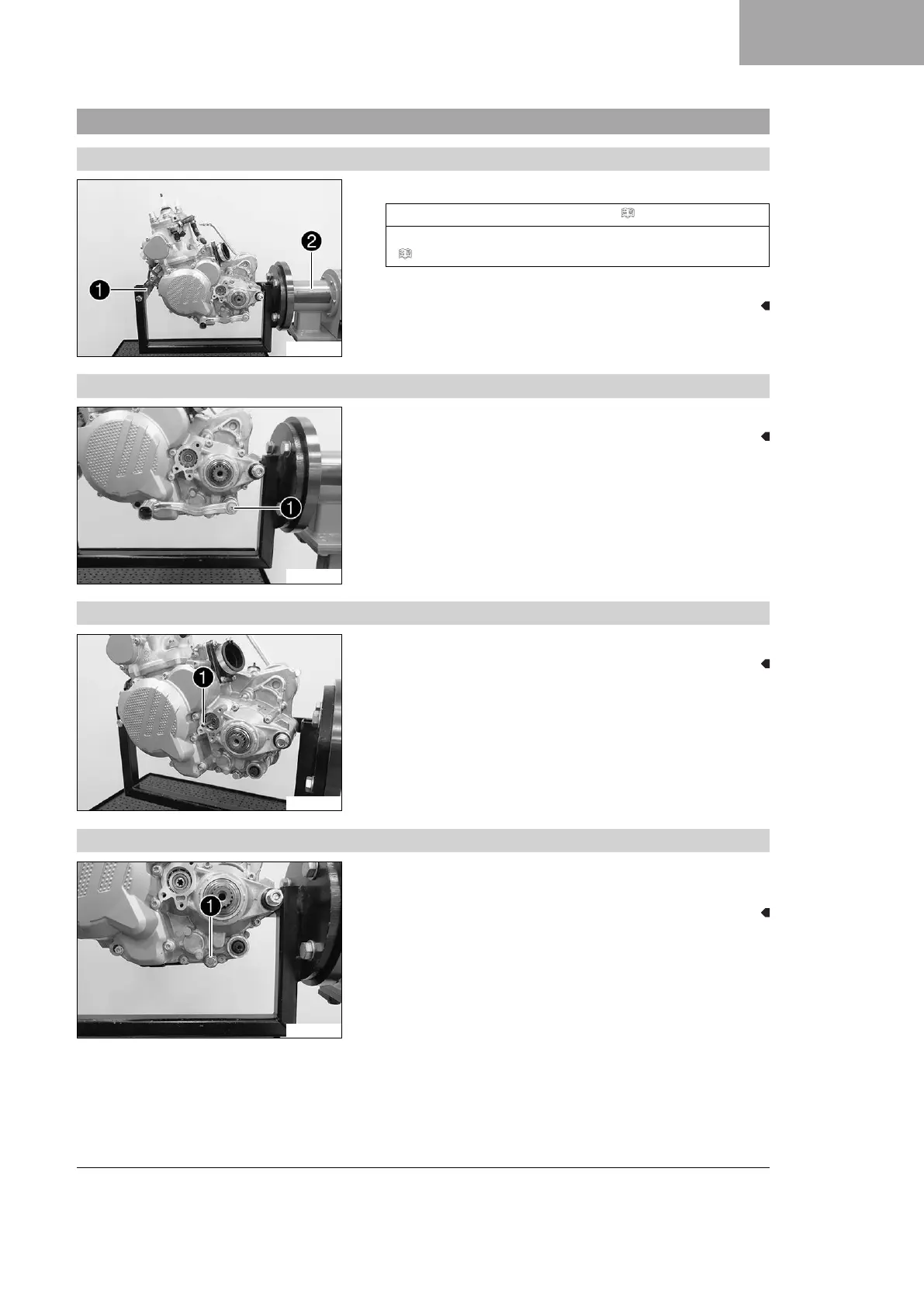

18.4 Engine disassembly
18.4.1 Clamping the engine into the engine work stand
D04395-10
–
Mount special tool
1
on engine work stand
2
.
Engine work stand (61229001000) ( p. 370)
Holder and fitting for work stand (55429002000)
( p. 365)
–
Mount the engine on special tool
1
.
18.4.2 Removing the shift lever
D04396-10
–
Remove screw
1
with the washers. Take off the shift lever.
18.4.3 Removing the clutch push rod
D04397-10
–
Remove clutch push rod
1
.
18.4.4 Draining the gear oil
D04398-10
–
Remove gear oil drain plug
1
with the magnet and seal ring.
– Let the gear oil drain fully.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
