KTM 300 EXC TPI 2019 Repair Manual

6 FORK, TRIPLE CLAMP
20
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

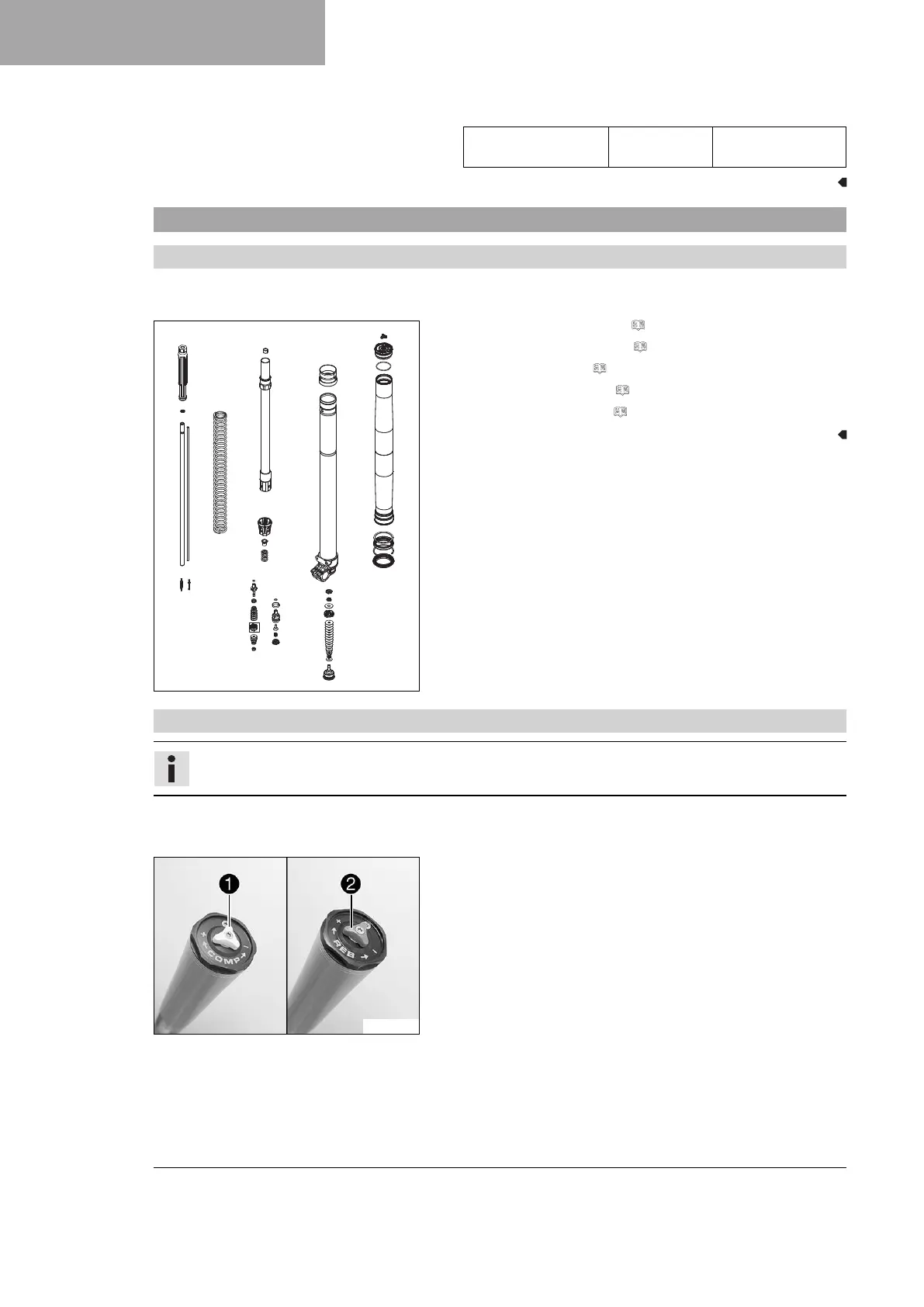

6.10 All standard EXC/XC-W models
6.10.1 Servicing the fork
Condition
The fork legs have been removed.
B03062-01
– Disassemble the fork legs. ( p. 20)
– Disassemble the cartridge. ( p. 23)
– Check the fork legs. ( p. 27)
– Assemble the cartridge. ( p. 29)
– Assemble the fork legs. ( p. 33)
6.10.2 Disassembling the fork legs
Info
The operations are the same on both fork legs.
Condition
The fork legs have been removed.
B04510-10
– Note down the current state of compression
damping
1
COMP (white adjuster on the left fork leg).
–
Note down the current state of rebound damping
2
REB (red
adjuster on the right fork leg).
– Open the adjusters of the rebound and compression damping
completely.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
