WIRING HARNESS, BATTERY 15
159
15.3 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
(All EXC models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
(All XC‑W models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
– Remove the seat. ( p. 121)

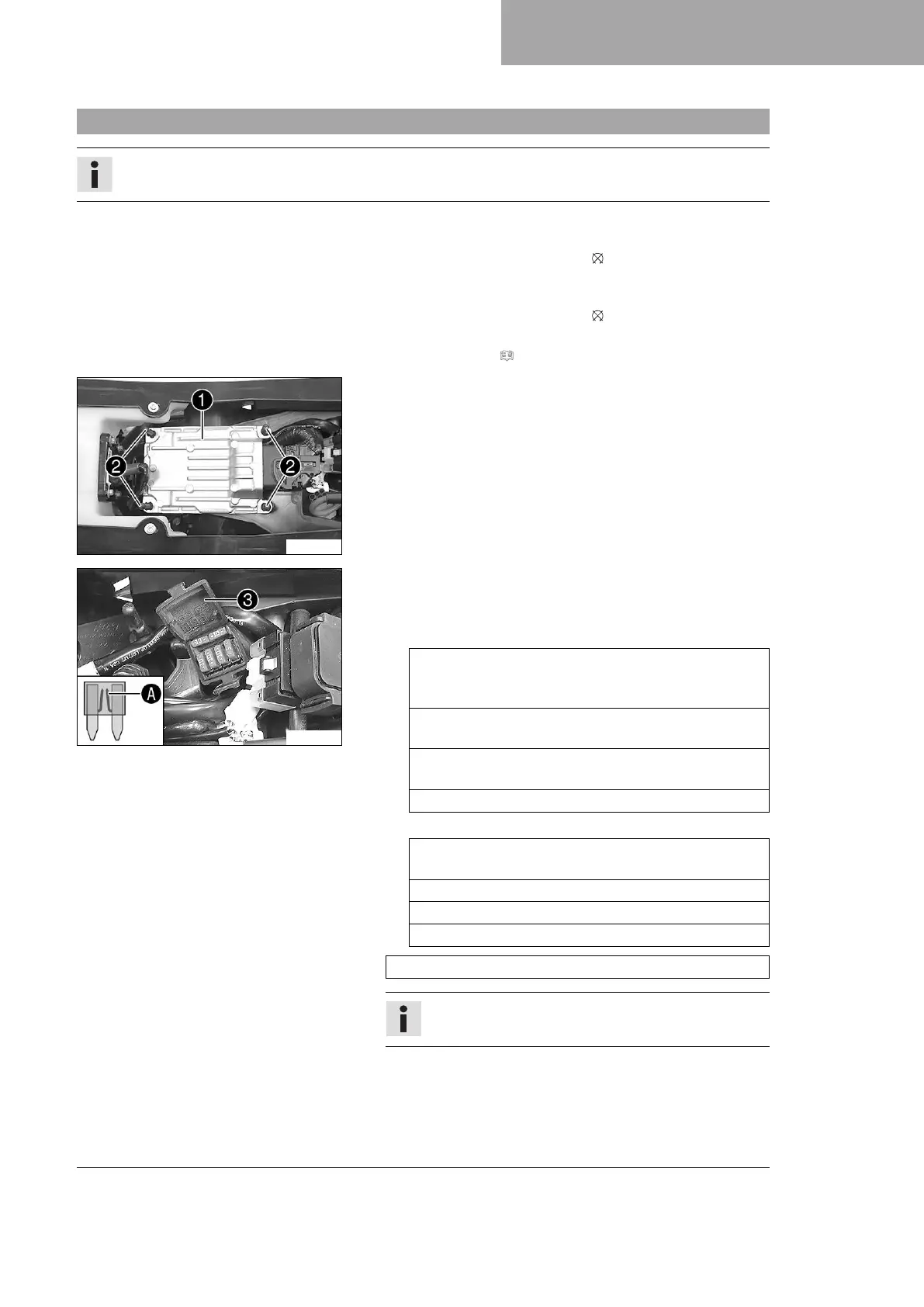

E00874-10
Main work
–
Pull the EFI control unit
1
upward off the rubber plugs
2
and hang to the side.
E00875-10
–
Open fuse box cover
3
.
– Remove the faulty fuse.
Guideline
(All EXC models)
Fuse 1 - 10 A - EFI control unit, lambda sensor,
oil pump, combination instrument, fuel injection,
diagnostics connector
Fuse 2 - 10 A - horn, brake light, radiator fan (optional),
turn signal (optional)
Fuse 3 - 10 A - high beam, low beam, parking light, tail
light, license plate lamp
Fuse 4 - 5 A - fuel pump
(All XC‑W models)
Fuse 1 - 10 A - EFI control unit, oil pump, combination
instrument, fuel injection, diagnostics connector
Fuse 2 - 10 A - radiator fan (optional)
Fuse 3 - 10 A - low beam, parking light, tail light
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
