LIGHTING SYSTEM, INSTRUMENTS 17
185
Finishing work
– Install the headlight mask with the headlight. ( p. 135)
– Check the headlight setting. ( p. 183)
– Set kilometers or miles. ( p. 185)
– Adjust the combination instrument function. ( p. 186)
– Set the clock. ( p. 187)

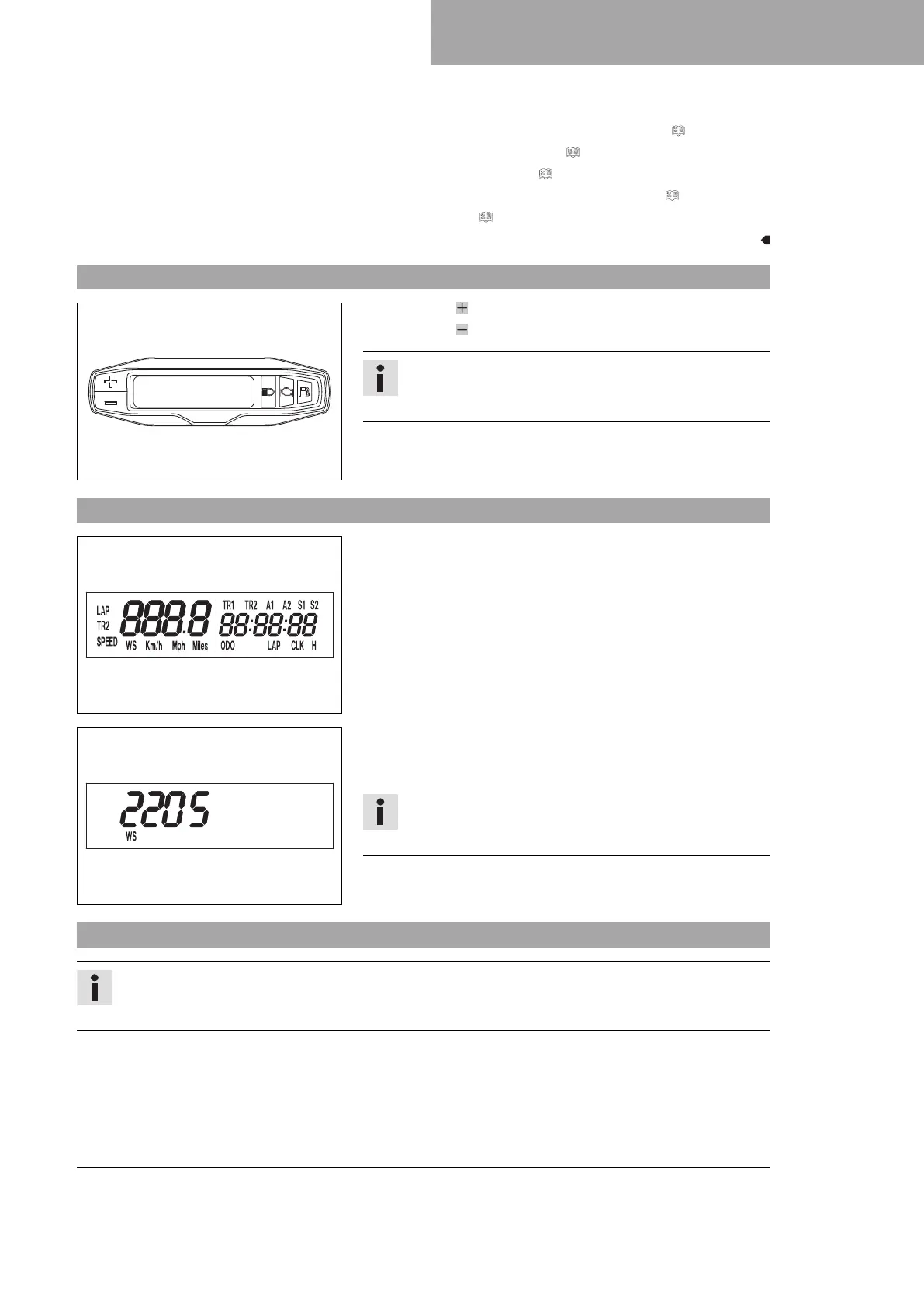

17.6 Combination instrument overview
V00799-01
– The button is used to select menus and make settings.
– The button is used to select menus and make settings.
Info
When the vehicle is delivered, only the SPEED/H and
SPEED/ODO display modes are activated.
17.7 Activation and test
400313-01
Activating combination instrument
The combination instrument is activated when one of the buttons
is pressed or an impulse comes from the wheel speed sensor.
Display test
To enable you to check that the display is functioning properly, all
display segments light up briefly.
400314-01
WS (wheel size)
After the display function check, the wheel circumference WS is
displayed briefly.
Info
The number 2205 equals the circumference of the 21"
front wheel with standard tires.
The display then changes to the last selected mode.
17.8 Setting the kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
