KTM 300 EXC TPI 2019 Repair Manual

23 IGNITION SYSTEM
308

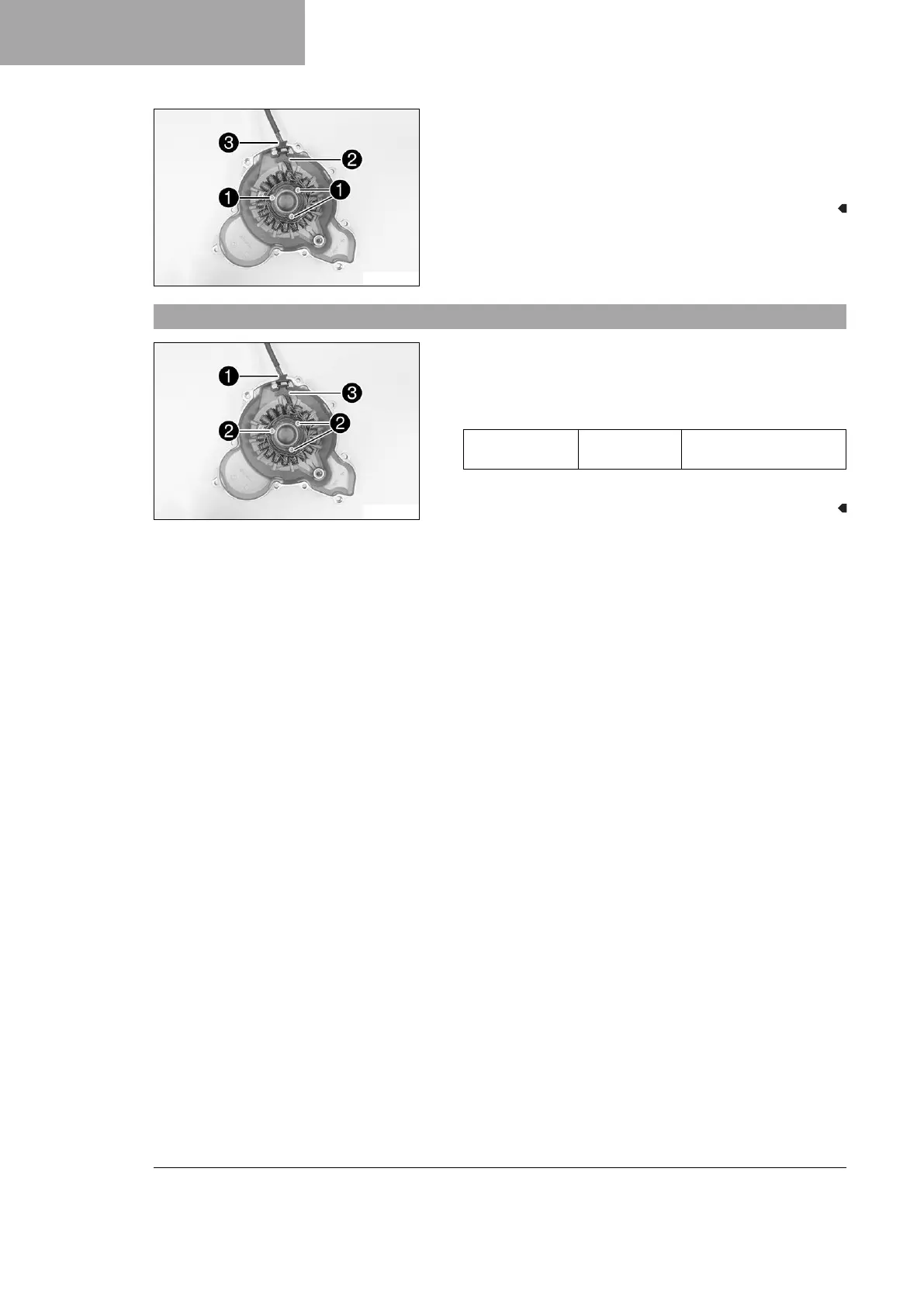

R02907-10
–
Remove screws
1
.
–
Remove retaining bracket
2
.
–
Remove cable sleeve
3
from the alternator cover.
– Remove the stator from the alternator cover.
23.9 Installing the stator
R02907-11
– Position the stator in the alternator cover.
–
Position cable sleeve
1
in the alternator cover.
–
Mount and tighten screws
2
.
Guideline
Screw, stator M5 6 Nm (4.4 lbf ft)
Loctite
®
243™
–
Mount retaining bracket
3
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
