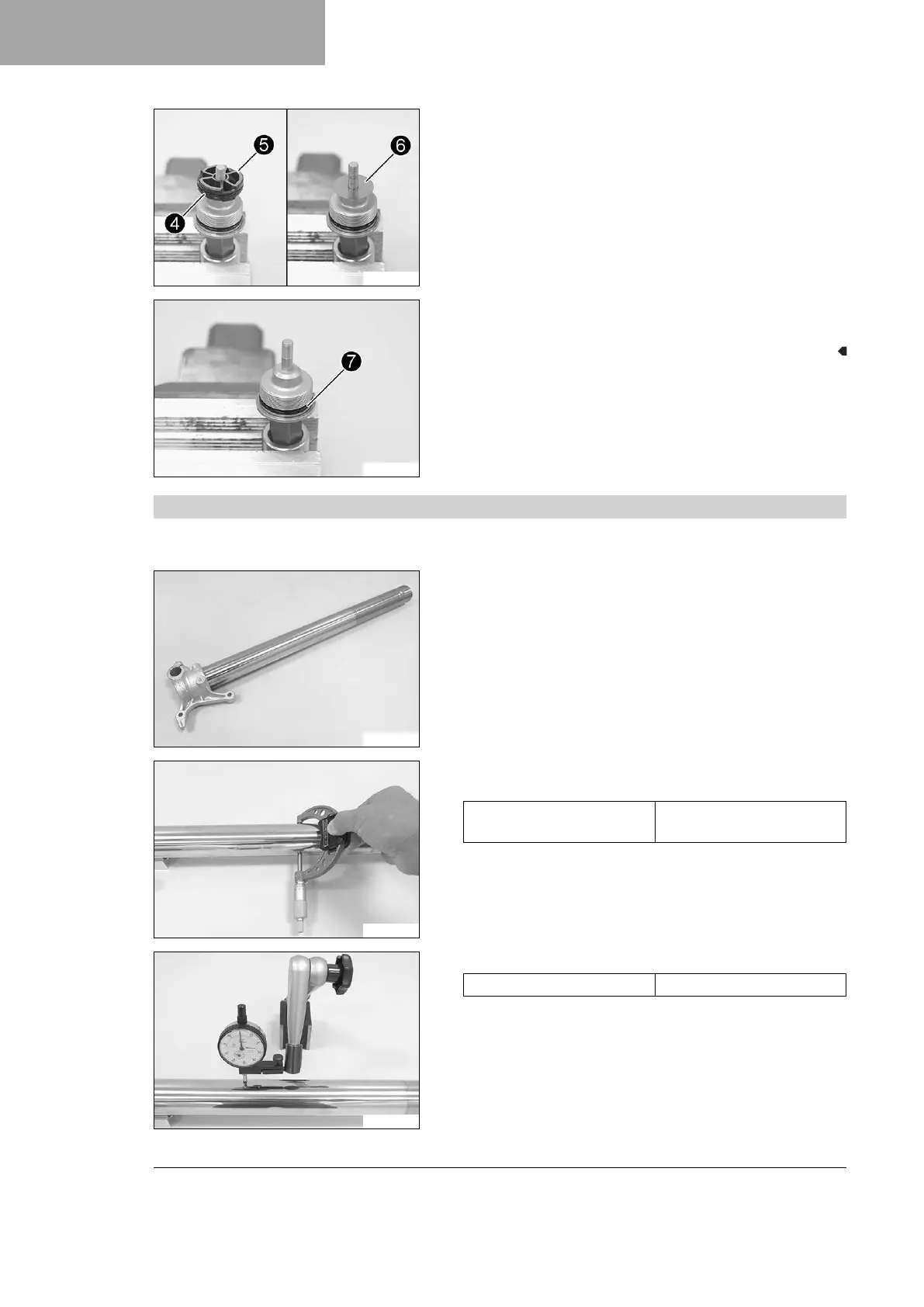

KTM 300 EXC TPI 2019 Repair Manual

6 FORK, TRIPLE CLAMP
50
B04506-10
–
Remove O-ring
4
.
–
Remove piston
5
.
–
Remove shim stack
6
.
B04507-10
–
Remove O-ring
7
from the tap compression.
– Extract the tap compression.
6.11.5 Checking the fork legs
Condition
The fork legs have been disassembled.
B03581-10
– Check the inner tube and the axle clamp for damage.
» If damage is found:
– Change the inner tube.
B03582-10
– Measure the outside diameter of the inner tube in several
places.
Outside diameter of the
inner tube
47.975 … 48.005 mm
(1.88878 … 1.88996 in)
» If the measured value is less than the specified value:
– Change the inner tube.
B03583-10
– Measure the run-out of the inner tube.
Inner tub run-out ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is greater than the specified value:
– Change the inner tube.
