KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
237
G01326-11

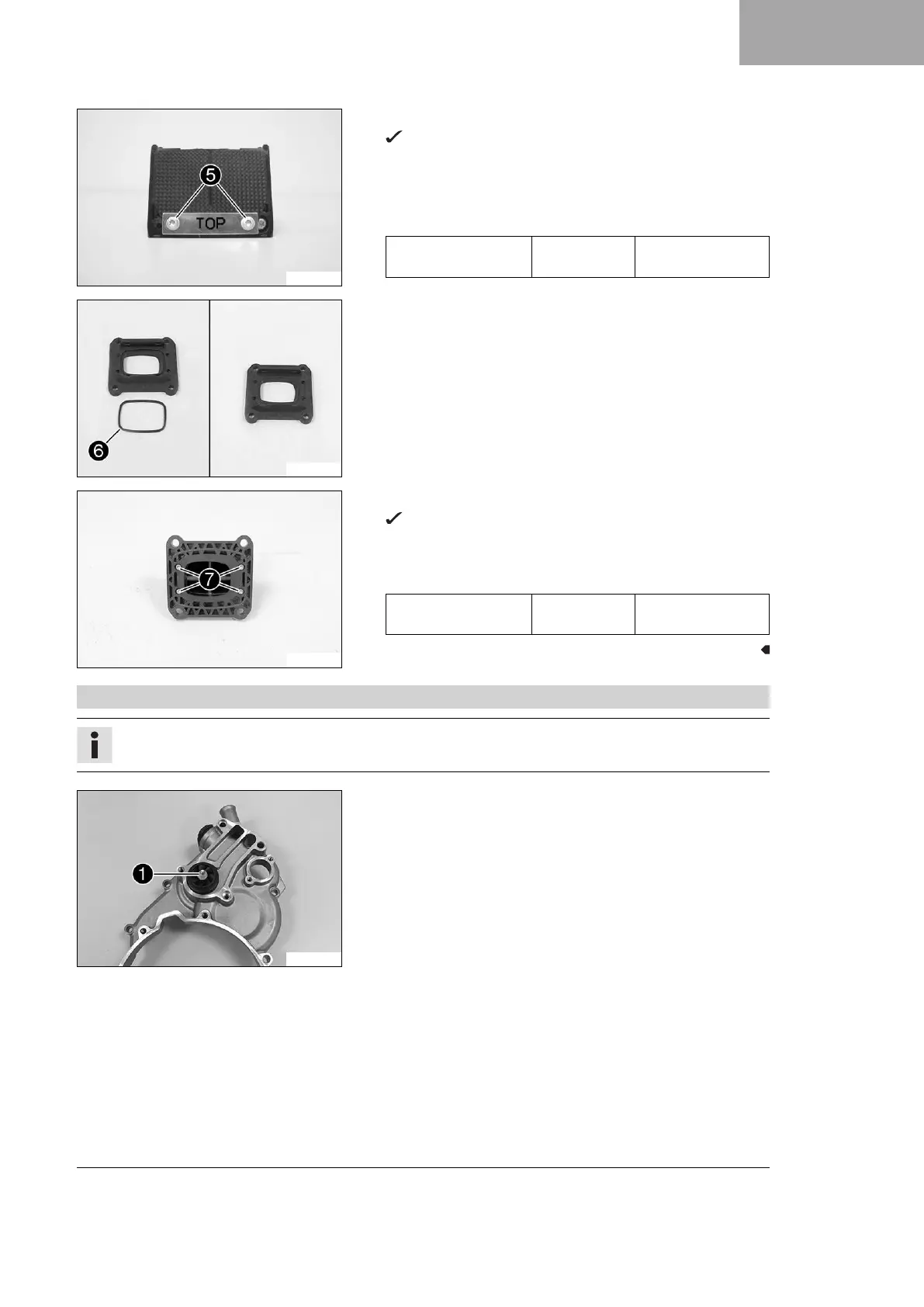

– Position the clamping plates on both sides.
After installation, the TOP marking must be visible as
shown.
–
Mount screws
5
on both sides and screw in all the way.
–
Loosen screws
5
and tighten again.
Guideline
Screw, outer mem-
brane sheets
EJOTDELTA PT
®
30x6
1 Nm (0.7 lbf ft)
311410-10
–
Position gasket
6
.
311407-11
– Position the reed valve housing in the support plate.
The outer recess is located on the right in the direction of
travel when installed.
–
Mount and tighten screws
7
.
Guideline
Screw, membrane
support plate
EJOTDELTA PT
®
30x12
1 Nm (0.7 lbf ft)
18.5.19 Working on the clutch cover
Info
Remove the outer clutch cover to avoid damage.
R04632-10
–
Remove nut
1
.
– Take off the water pump impeller.
