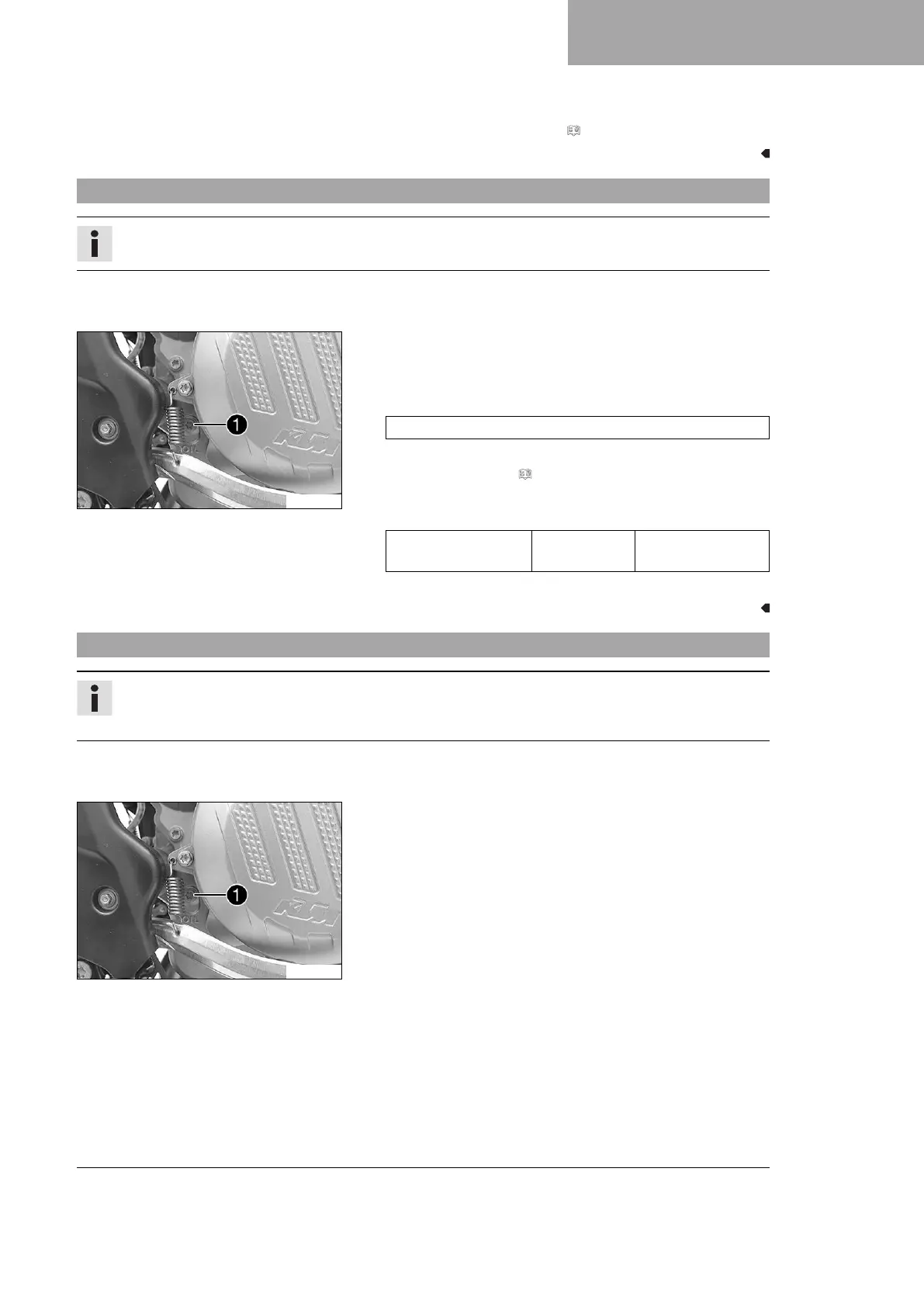

KTM 300 EXC TPI 2019 Repair Manual

LUBRICATION SYSTEM 22
295
(All Six Days models)
– Install the engine guard. ( p. 74)
22.2 Checking the gear oil level
Info
The gear oil level must be checked when the engine is cold.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
E00912-10
Main work
– Detach the foot brake lever spring.
–
Remove screw for checking gear oil level
1
.
– Check the gear oil level.
A small quantity of gear oil must run out of the drilled hole.
» If no gear oil runs out:
– Add gear oil. ( p. 295)
– Mount and tighten the gear oil monitoring screw.
Guideline
Screw, gear oil level
check
M6 10 Nm (7.4 lbf ft)
– Attach the foot brake lever spring.
22.3 Adding gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Gear oil must only be topped up when the engine is cold.
Preparatory work
– Park the motorcycle on a level surface.
E00912-10
Main work
– Detach the foot brake lever spring.
–
Remove screw for checking gear oil level
1
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
