KTM 300 EXC TPI 2019 Repair Manual

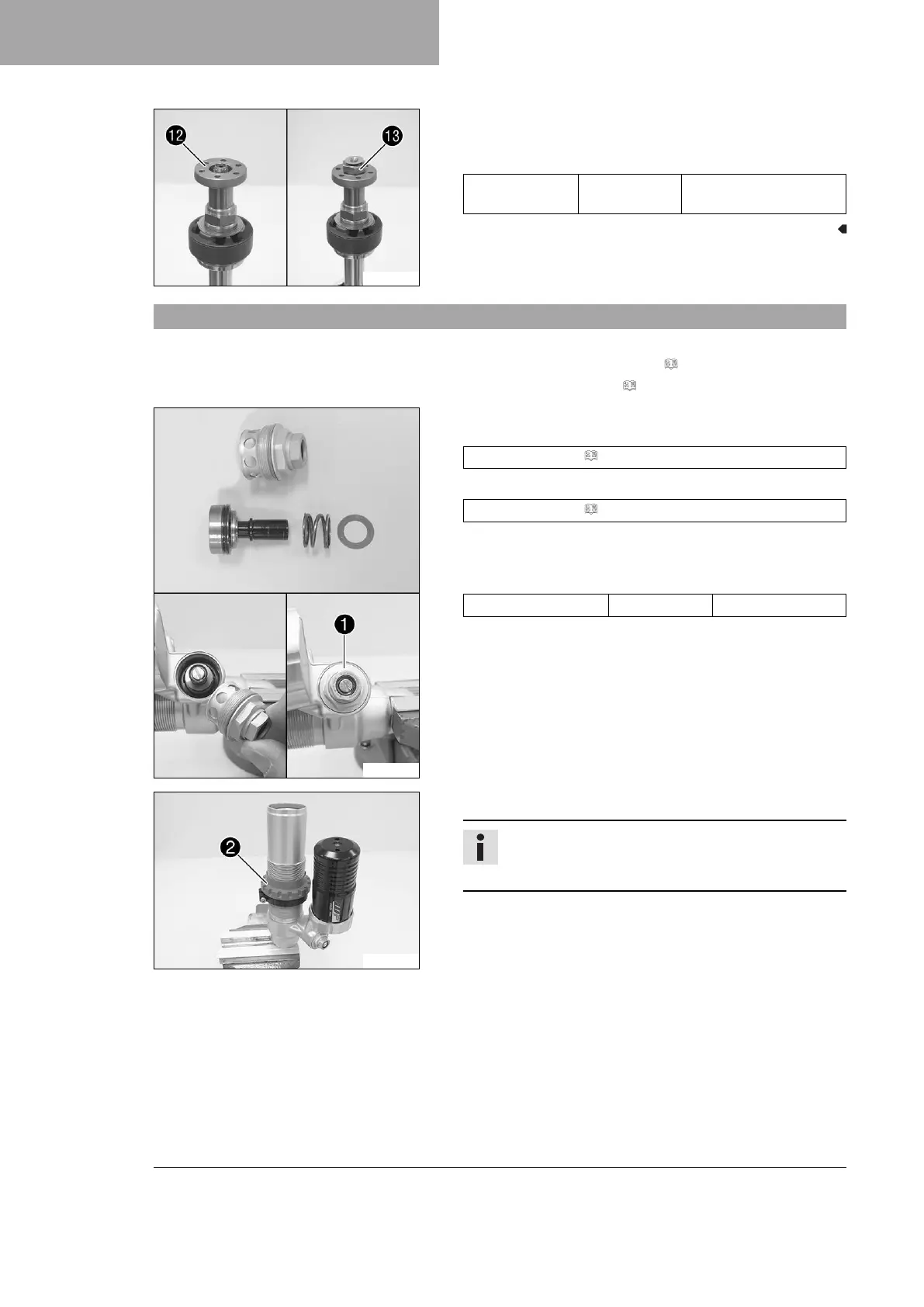

9 SHOCK ABSORBER, SWINGARM
94
B04491-10
–
Position piston
bm
with the groove facing upward.
–
Mount and tighten nut
bn
.
Guideline
Nut, piston rod M10x1 30 Nm (22.1 lbf ft)
Loctite
®
2701™
9.22 Assembling the damper
Preparatory work
– Assemble the seal ring retainer. ( p. 91)
– Assemble the piston rod. ( p. 92)
B05415-10
Main work
– Lubricate the O-rings of the compression adjuster.
Lubricant (T158) ( p. 360)
– Lubricate the thread.
Lubricant (T159) ( p. 360)
– Mount the piston with the spring and washer.
–
Mount and tighten compression adjuster
1
.
Guideline
Compression adjuster M31x1 35 Nm (25.8 lbf ft)
B04475-10
–
Mount adjusting ring
2
with the clamping ring.
Info
The adjusting ring cannot be mounted after the piston
rod has been mounted.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
