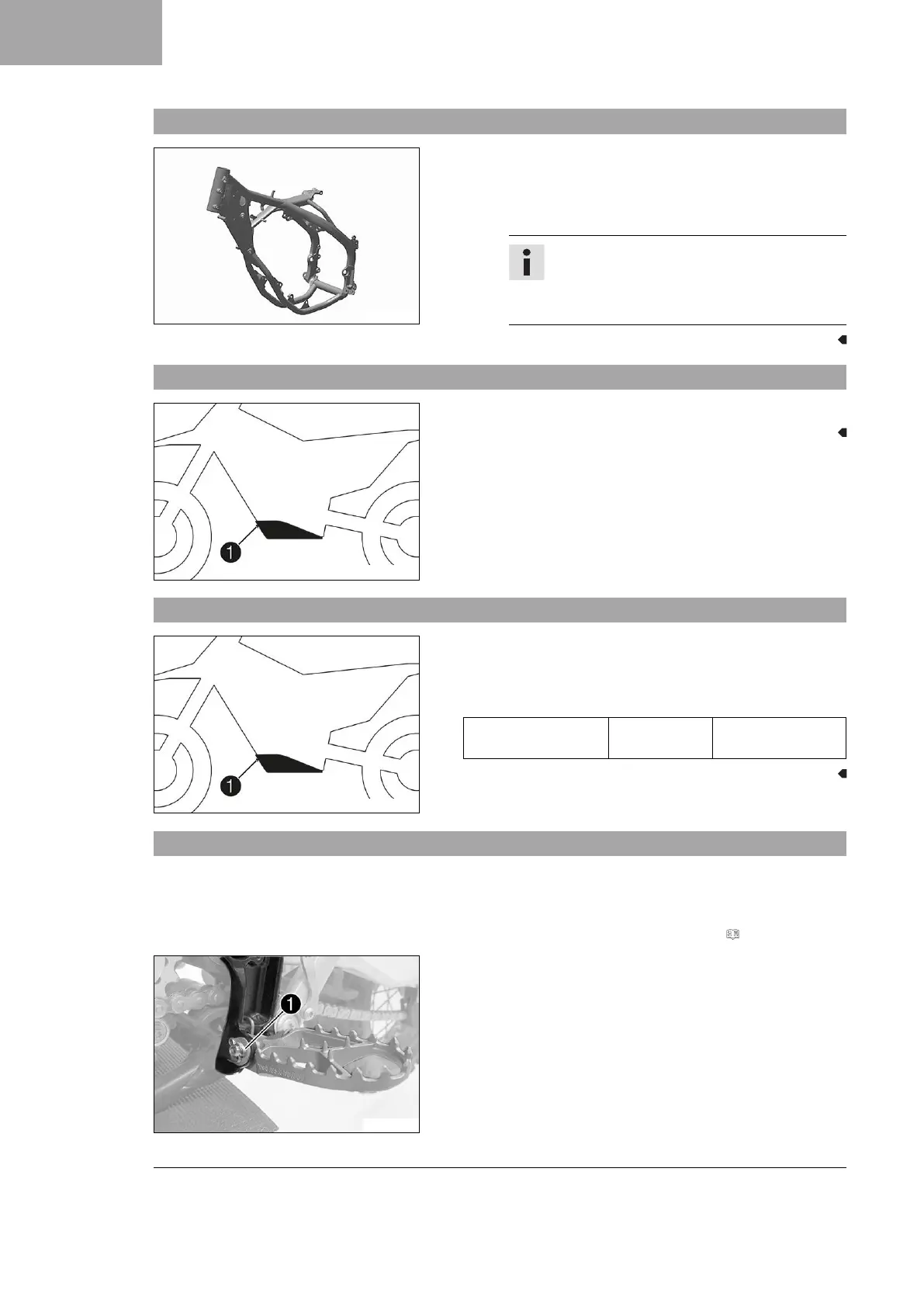

KTM 300 EXC TPI 2019 Repair Manual

8 FRAME
74
8.1 Checking the frame
S01316-10
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
8.2 Removing the engine guard (All Six Days models)
H01638-10
–
Remove screws
1
and engine guard.
8.3 Installing the engine guard (All Six Days models)
H01638-10
– Attach the engine guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
8.4 Changing the footrests
Condition
The frame protectors have been removed on the left and right.
Left footrest
– Raise the motorcycle with a lift stand. ( p. 12)
R00755-10
–
Remove split pin
1
and take off the washer.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
