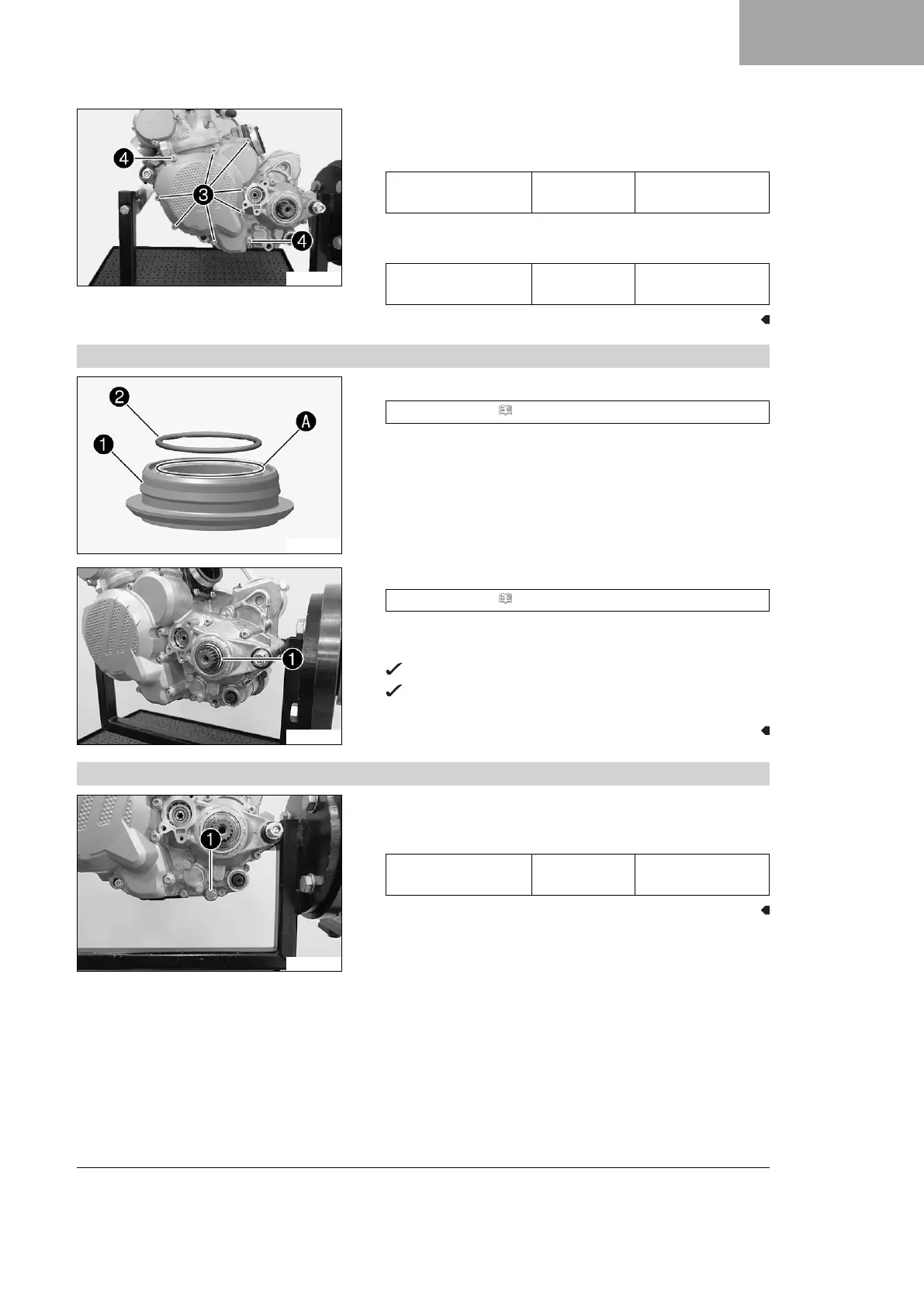

KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
273
D04401-11
– Position the alternator cover.
–
Mount and tighten screws
3
.
Guideline
Screw, alternator
cover
M6x20 8 Nm (5.9 lbf ft)
–
Mount and tighten screws
4
.
Guideline
Screw, alternator
cover
M6x25 8 Nm (5.9 lbf ft)
18.6.29 Installing the spacer
312160-10
–
Before mounting, grease spacer
1
in area
A
and O-ring
2
.
Long-life grease ( p. 360)
– Position the O-ring in the cut-out of the spacer.
D04399-10
– Grease the shaft seal ring.
Long-life grease ( p. 360)
–
Push spacer
1
with the O-ring onto the countershaft with a
twisting motion.
The cut-out with the O-ring must face inward.
The shaft seal ring rests against the spacer along its entire
circumference.
18.6.30 Installing the gear oil drain plug
D04398-10
–
Mount and tighten gear oil drain plug
1
with the magnet and
the new seal ring.
Guideline
Gear oil drain plug
with magnet
M12x1.5 20 Nm (14.8 lbf ft)
