KTM 300 EXC TPI 2019 Repair Manual

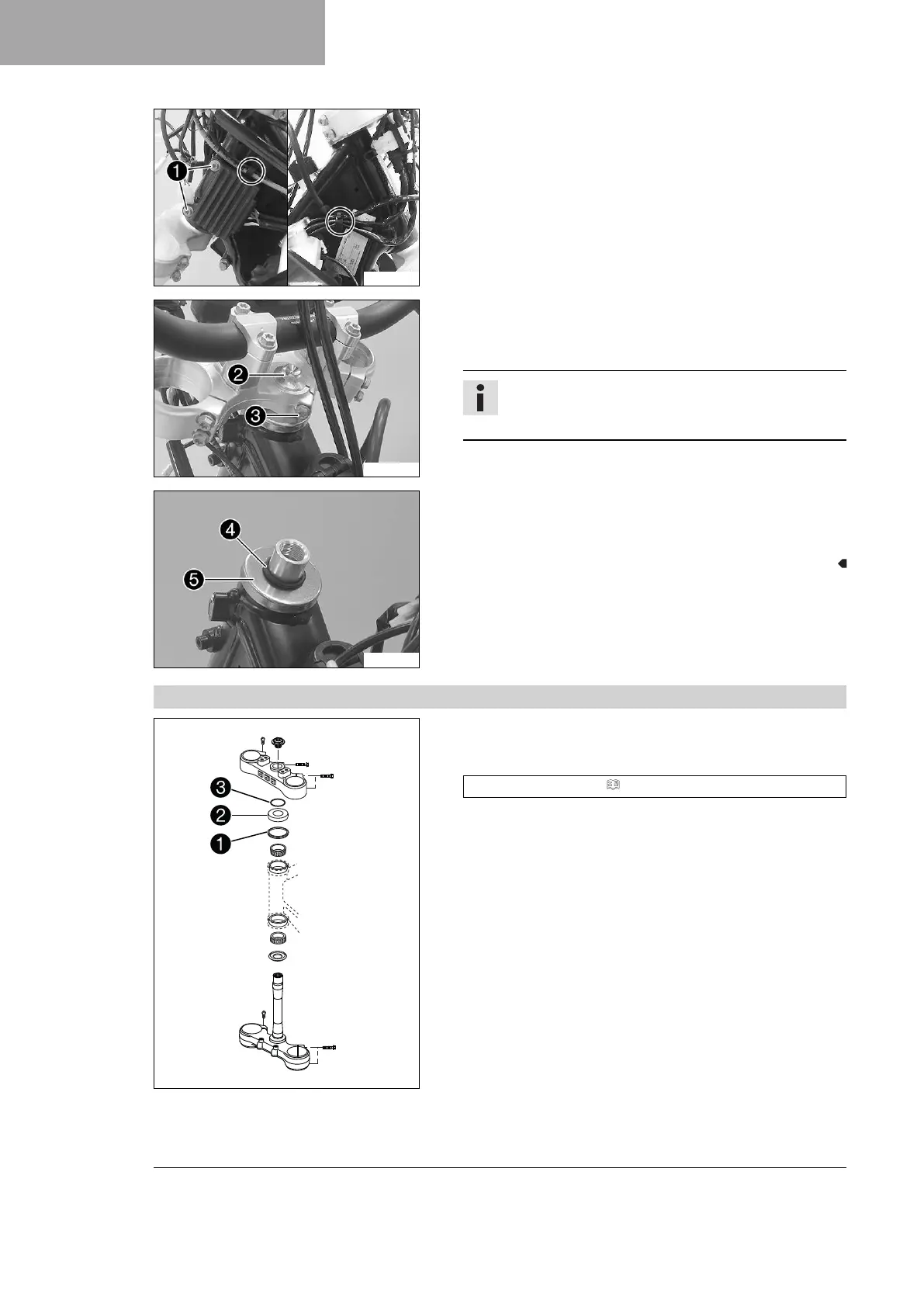

6 FORK, TRIPLE CLAMP
38
E00920-10
Main work
–
Remove screws
1
and hang the voltage regulator to the side.
– Open the cable holder in front of the left and right radiator and
detach the wiring harness.
E00921-10
–
Remove screw
2
.
–
Loosen screw
3
. Take off the upper triple clamp with the
handlebar and hang them to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
E00922-10
–
Remove O-ring
4
. Remove protective ring
5
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
6.10.11 Installing the lower triple clamp
V00359-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 360)
– Insert the lower triple clamp with the steering stem. Mount the
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Mount protective ring
2
and O-ring
3
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
