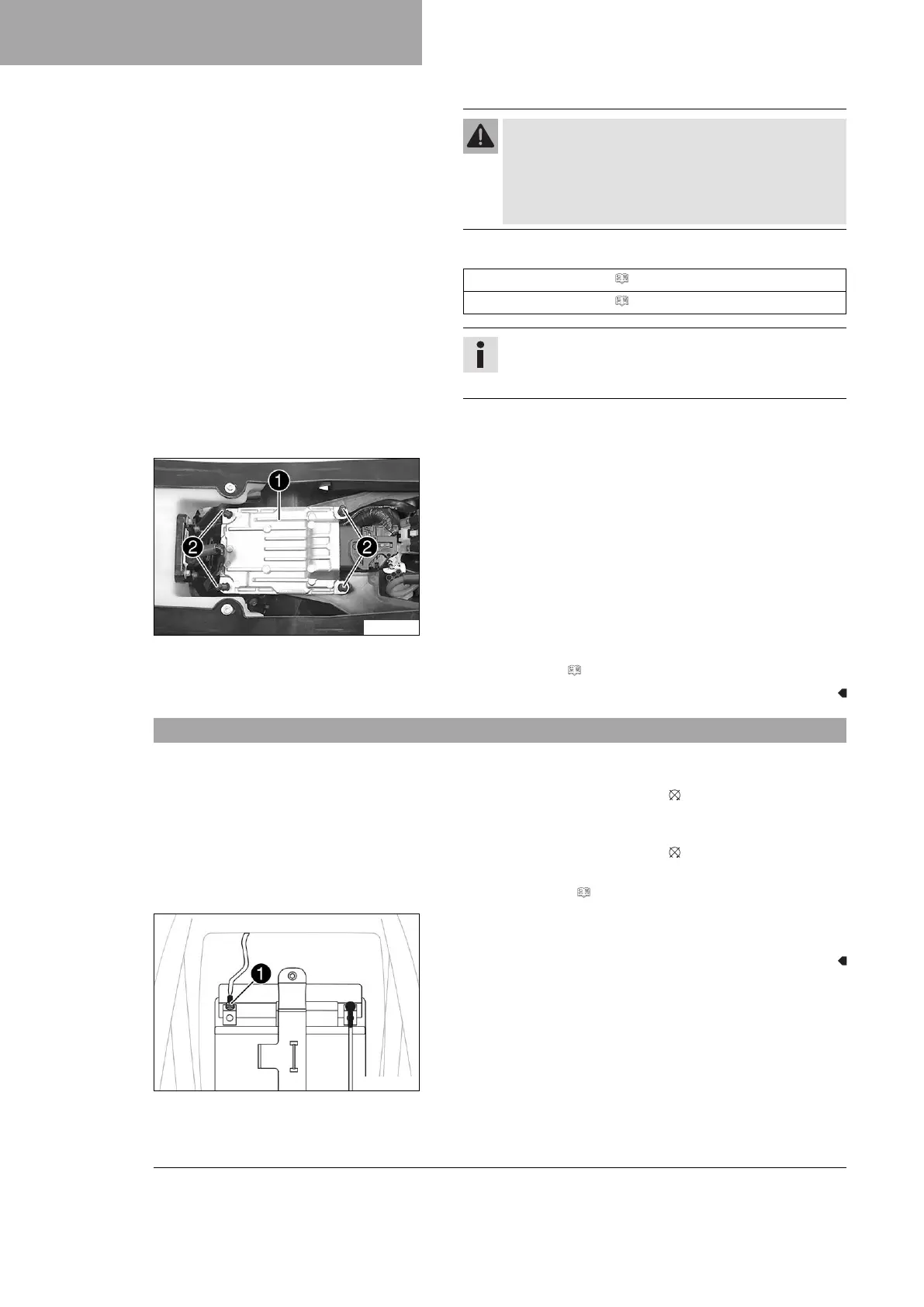

KTM 300 EXC TPI 2019 Repair Manual

15 WIRING HARNESS, BATTERY
160
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert spare fuse with the correct rating only.
Fuse (75011088010) ( p. 317)
Fuse (75011088005) ( p. 317)
Tip
Replace the spare fuse in the fuse box so that it is
available if needed.
– Check that the power consumer is functioning properly.
–
Close the fuse box cover
3
.
E00874-10
–
Mount the EFI control unit
1
on the rubber lugs
2
.
Finishing work
– Mount the seat. ( p. 121)
15.4 Disconnecting the negative cable of the battery
Preparatory work
(All EXC models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
(All XC‑W models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
– Remove the seat. ( p. 121)
R01414-10
Main work
–
Disconnect negative cable
1
of the battery.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
