Suzuki VZR1800 2008 User Manual

ENGINE 3-47

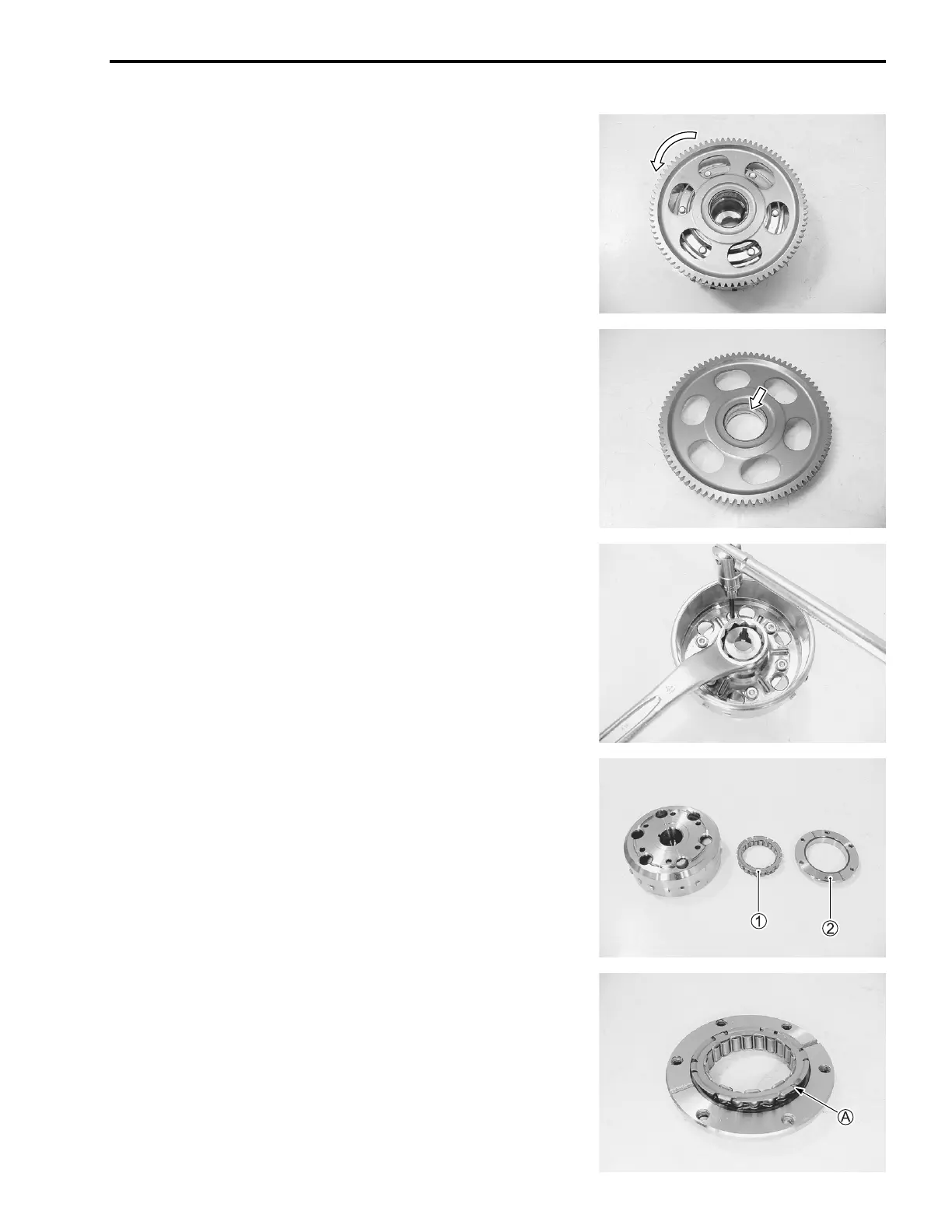

STARTER CLUTCH
STARTER DRIVEN GEAR INSPECTION
• Turn the starter driven gear by hand.
• Inspect the starter clutch for a smooth movement.
• Check that the gear turns only in one direction.
• Inspect the starter driven gear bushing for any damage.
If necessary, replace it with a new one.
DISASSEMBLY
• Remove the starter clutch securing bolts.
• Remove the one way clutch 1 and guide 2 from the genera-
tor rotor.
REASSEMBLY
• Install the starter clutch in the proper direction.
NOTE:
When installing the one way clutch to the guide, face the flange
side A of the one way clutch to the rotor.
• Apply engine oil to the starter clutch.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
