4-20 DRIVELINE/AXLE

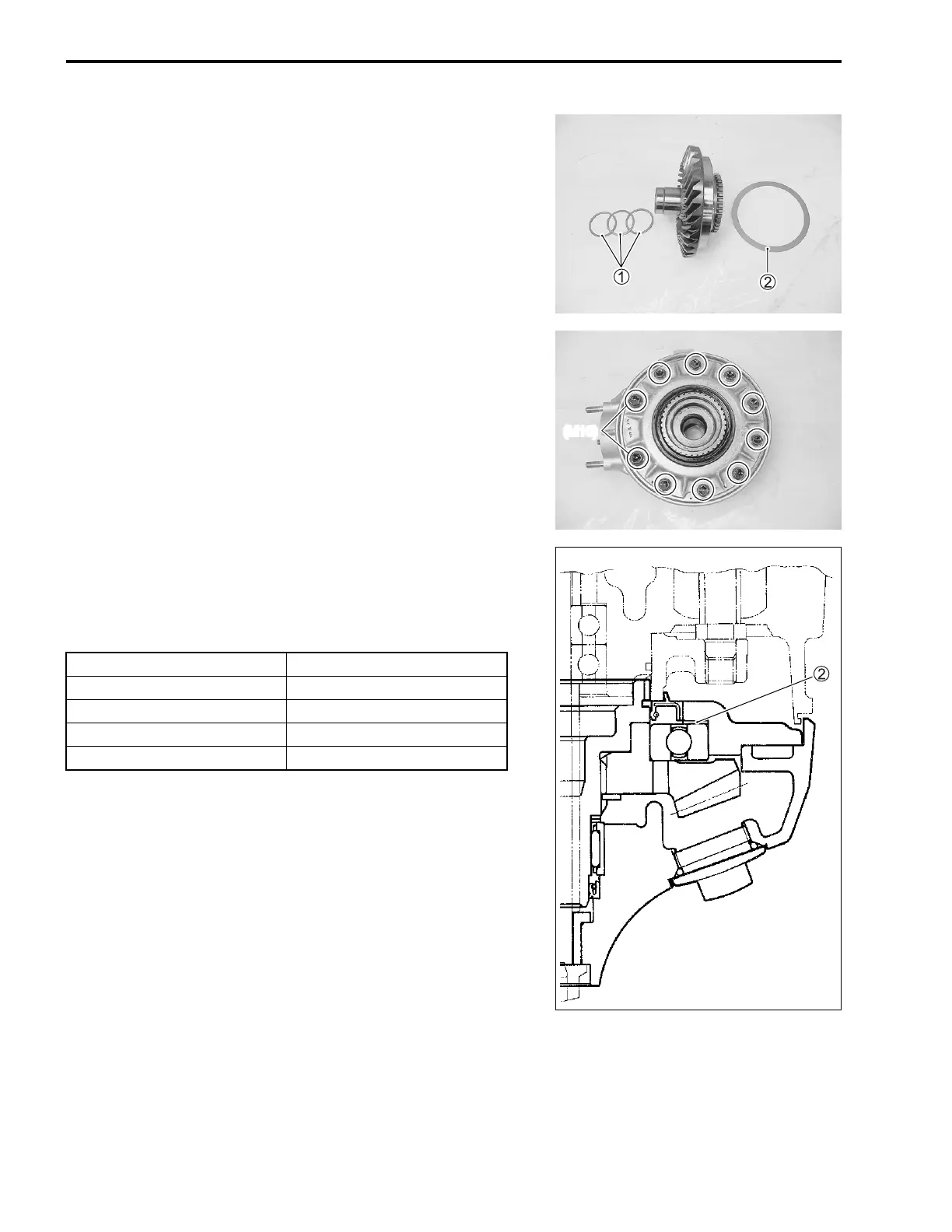

FINAL GEAR SHIMS ADJUSTMENT
FINAL GEAR BEARING CASE SHIM CLEARANCE
• Install the final driven gear, shims (1 and 2) and final gear
bearing case to the final gear case.
• Tighten the final gear case bolts to the specified torque.
! Final gear case bolt (M8): 23 N·m (2.3 kgf-m, 16.5 lb-ft)
(M10): 50 N·m (5.0 kgf-m, 36.0 lb-ft)
NOTE:
It is not necessary to apply SUZUKI BOND “1207B” and
THREAD LOCK to the matching surface and bolts at this stage.
• Measure the clearance between the shims and bearing. If it is
not within the specification, the shims must be changed.
Standard
% Final gear case shim clearance
Standard: 0.1 mm (0.04 in)
Shims 2 specifications
NOTE:
The shims 2 are available as a set (27327-38810).
(M10)
Part number Shim thickness
27327-38B00-035 0.35 mm (0.014 in)
27327-38B00-040 0.40 mm (0.016 in)
27327-38B00-050 0.50 mm (0.020 in)
27327-38B00-060 0.60 mm (0.024 in)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
