5-20 FI SYSTEM DIAGNOSIS

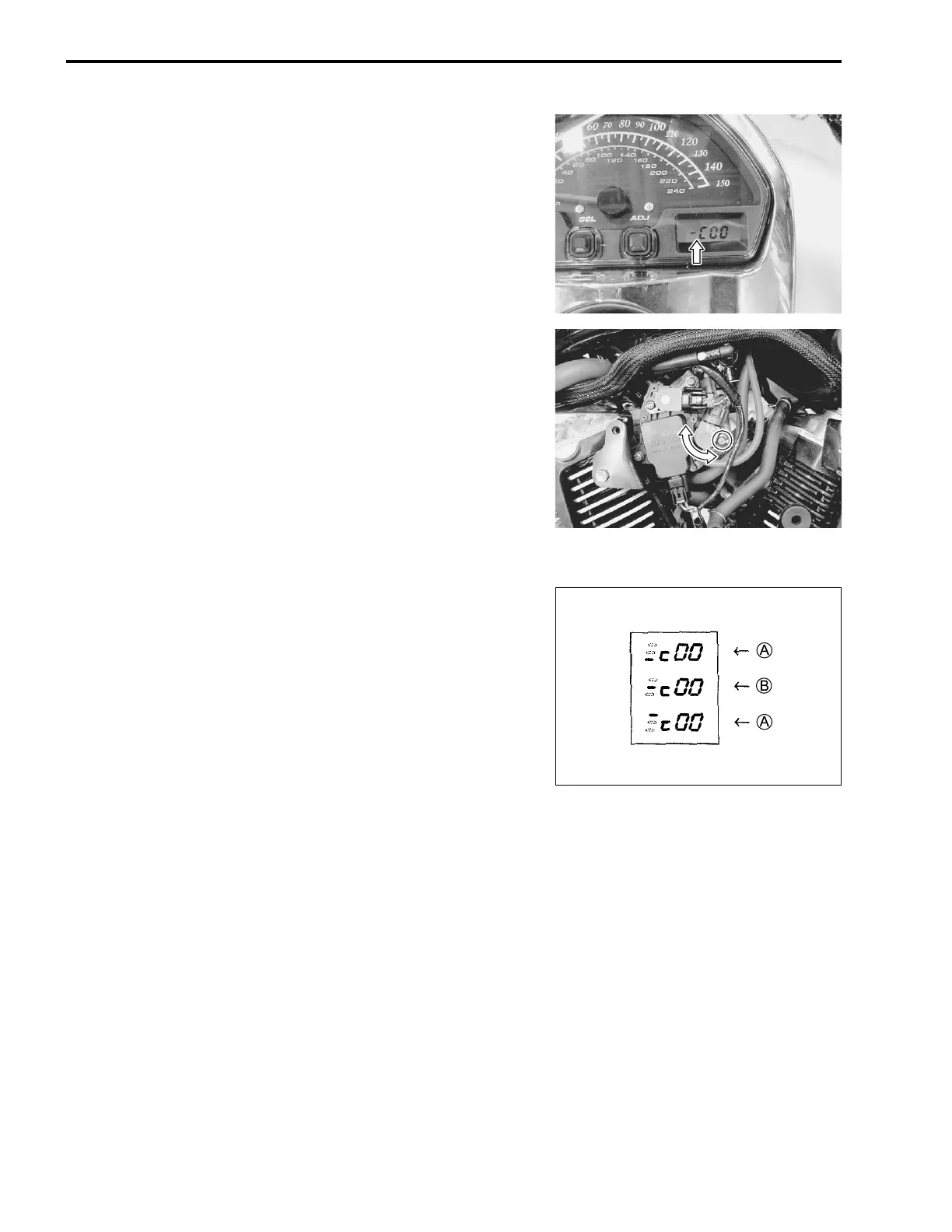

TPS ADJUSTMENT
1. Warm up the engine and check the engine idle r/min.
Adjust the engine rpm to 900 r/min if necessary. (#6-22)
2. Connect the special tool (Mode select switch) to the dealer
mode coupler at the wiring harness.
3. Remove the fuel tank. (#6-3)
4. Remove the right air cleaner box. (#6-13)
5. If the throttle position sensor adjustment is necessary, loosen
the screw and turn the throttle position sensor and bring the
line to the middle.
6. Then, tighten the screw to fix the throttle position sensor.
! 09930-11950: Torx wrench
09930-82720: Mode select switch
The LCD displays the line for 0.4 sec. at a time, and when such
a display repeats two times, it indicates the current position
where the sensor is fixed.
A Incorrect
B Correct position
