11-38 SERVICING INFORMATION

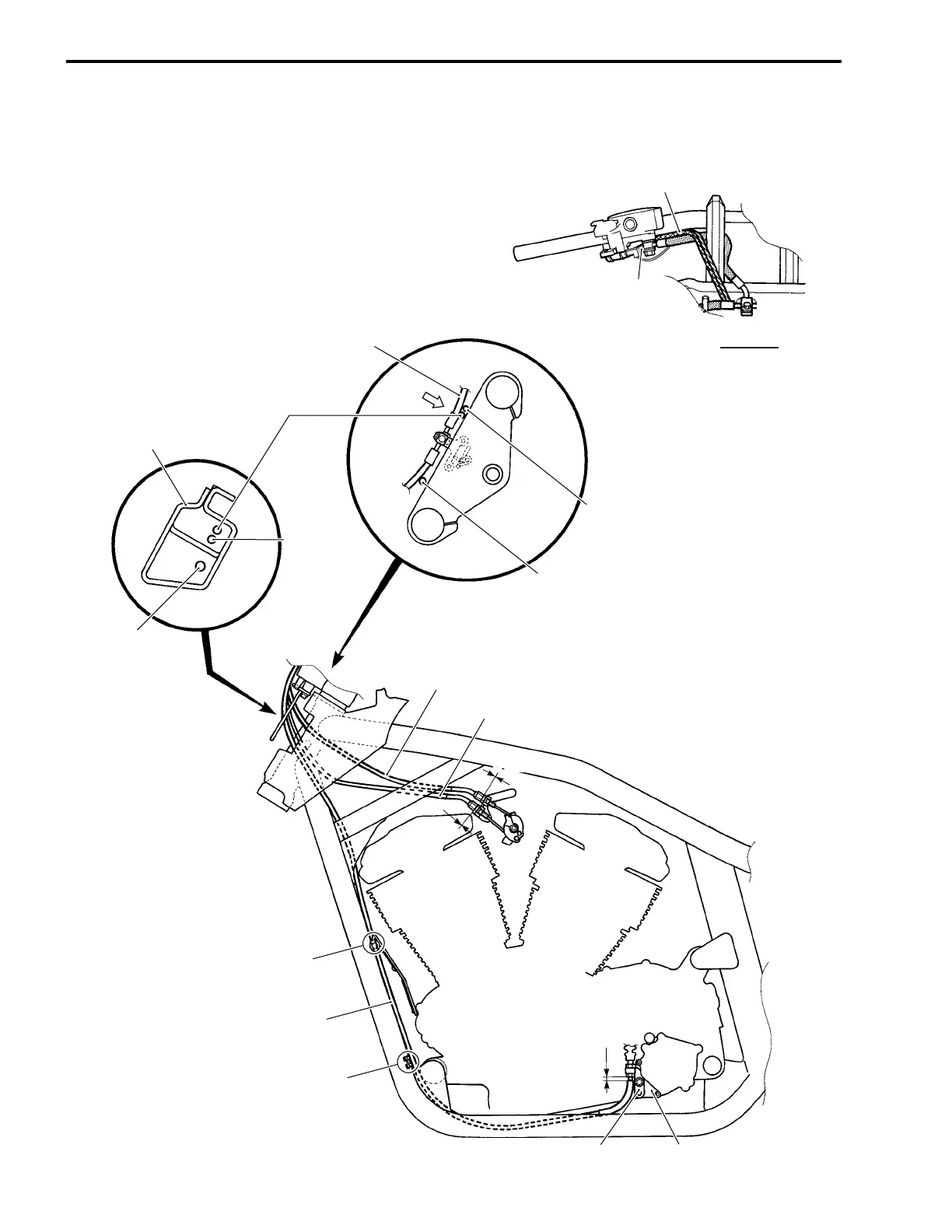

CABLE ROUTING
Throttle cable No.2 (returning cable)
Front brake hose
Throttle cable No.1
(pulling cable)
Throttle cable
No.2
(returning cable)
Cable guide
Clutch cable
Clutch cable
Throttle cable No.1 (pulling cable)
Throttle cable No.2 (returning cable)
0 mm
0 mm
Pass the clutch cable
inside of heat shield plate.
Pass the clutch cable
between nuts.
Clutch cable
0 mm
Clutch cable stopper No.2
Clutch cable stopper No.1
Pass the throttle cables behind
the right handlebar switch lead
wire and brake switch coupler.
Pass the throttle cable between
the handlebars and brake hose.
VIEW A
A

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
