3-52 ENGINE
WATER PUMP
!8-15
GEARSHIFT

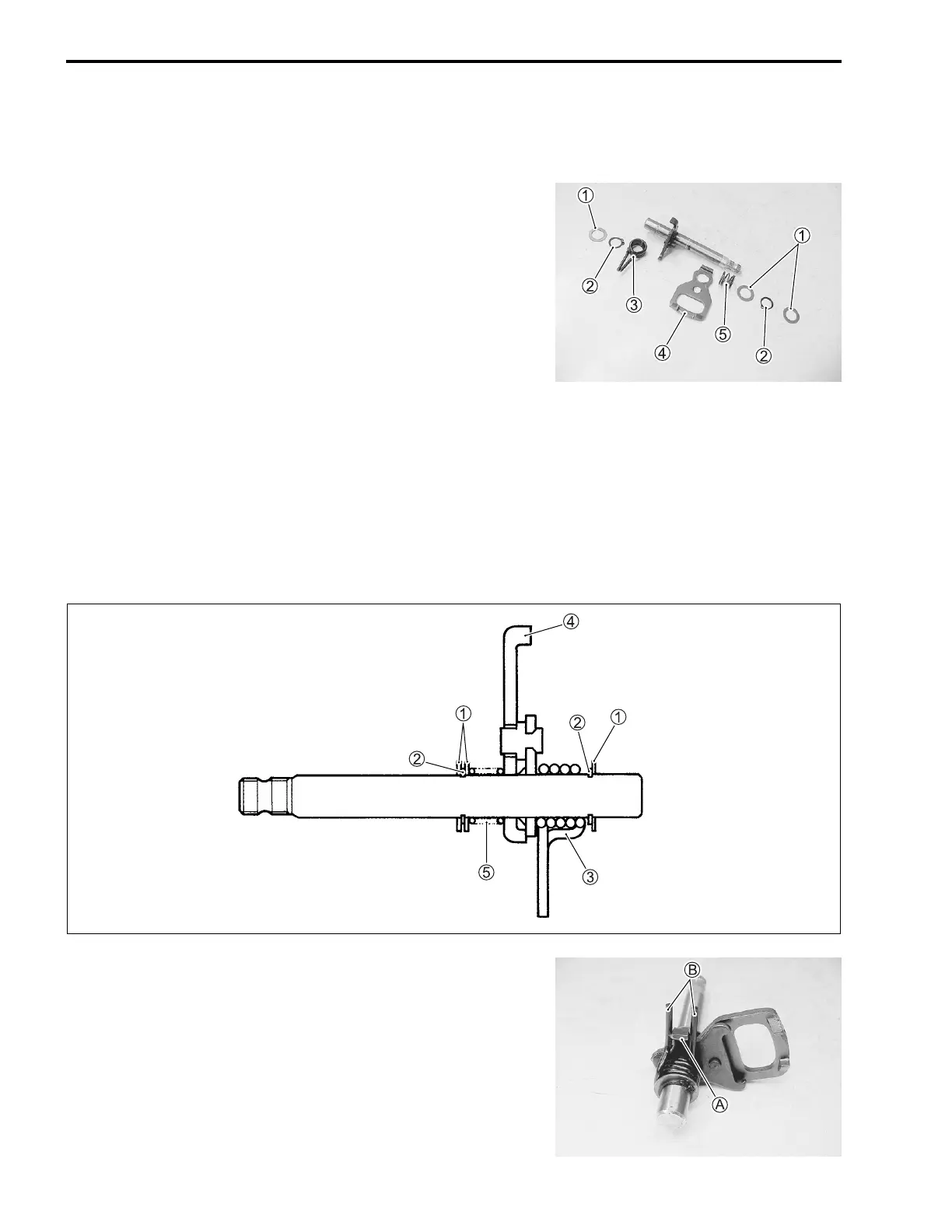

GEARSHIFT SHAFT/GEARSHIFT ARM DISASSEMBLY
• Remove the following parts from the gearshift shaft/gearshift
arm.
1 Washer 4 Gearshift cam drive plate
2 Snap ring 5 Plate return spring
3 Gearshift shaft return spring
GEARSHIFT SHAFT/GEARSHIFT ARM INSPECTION
• Inspect the gearshift shaft/gearshift arm for wear or bend.
• Inspect the return springs for damage or fatigue.
• Replace the arm or spring if there is anything unusual.
GEARSHIFT SHAFT/GEARSHIFT ARM REASSEMBLY
• Install the following parts to the gearshift shaft/gearshift arm
as shown in the illustration.
1 Washer 4 Gearshift cam drive plate
2 Snap ring 5 Plate return spring
3 Gearshift shaft return spring
NOTE:
When installing the gearshift shaft return spring, position the
stopper A of gearshift arm between the shaft return spring ends
B.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
