8-8 COOLING AND LUBRICATION SYSTEM
COOLING FAN
INSPECTION
• Remove the right frame head cover and right radiator cover.
(#9-6)

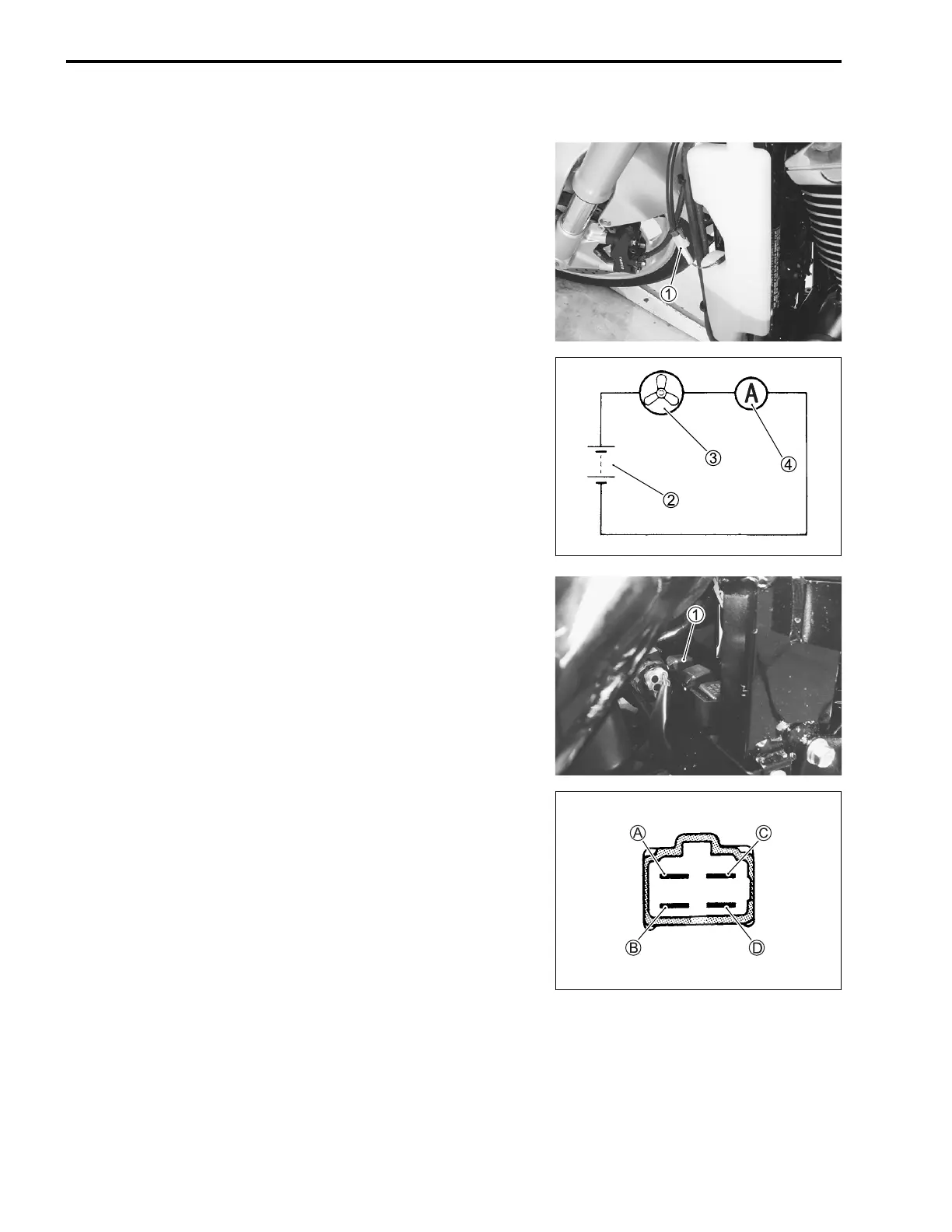

• Disconnect the cooling fan coupler 1.
• Test the cooling fan motor for load current with an ammeter
connected as shown in the illustration.
• The voltmeter is for making sure that the battery 2 applies 12
volts to the cooling fan motor 3. With the cooling fan motor
with electric motor fan running at full speed, the ammeter 4
should be indicating not 8.5 amperes and more.
• If the fan motor does not turn, replace the motor assembly
with a new one.(#8-5)
NOTE:
When making above test, it is not necessary to remove the cool-
ing fan.
COOLING FAN RELAY INSPECTION
Cooling fan relay is located in front of the battery.
• Remove the right frame side cover. (#9-5)
• Remove the cooling fan relay 1.
First check the insulation between A and B terminals with
tester. Then apply 12 volts to C and D terminals, + to C and
- to D, and check the continuity between A and B.
If there is no continuity, replace it with a new one.
% 09900-25008: Multi-circuit tester set
& Tester knob indication: Continuity test (')

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
