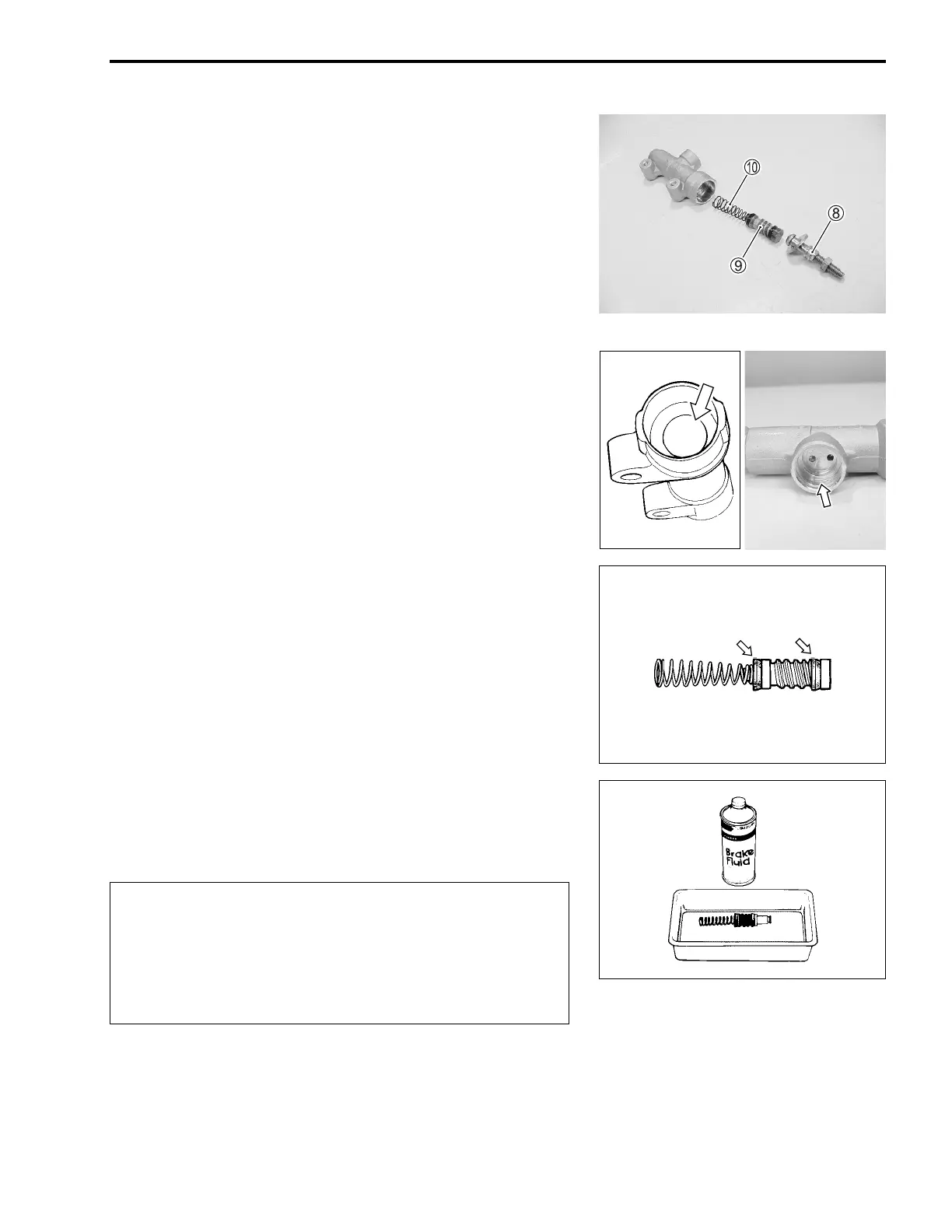

CHASSIS 9-71
• Remove the push rod 8, piston/primary cup 9 and spring 0.
MASTER CYLINDER INSPECTION
CYLINDER, PISTON
• Inspect the cylinder bore wall for any scratches or other dam-
age.
CUP SET
• Inspect the cup set.
MASTER CYLINDER REASSEMBLY
Reassemble the master cylinder in the reverse order of disas-
sembly. Pay attention to the following points:
$
- Specification and classification: DOT 4
* Clean the master cylinder components with fresh
brake fluid before reassembly. Never use cleaning
solvent or gasoline to clean them.
* Do not wipe the components with a rag.
* Apply brake fluid to the cylinder bore and all the
component to be inserted into the bore.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
