Suzuki VZR1800 2008 User Manual

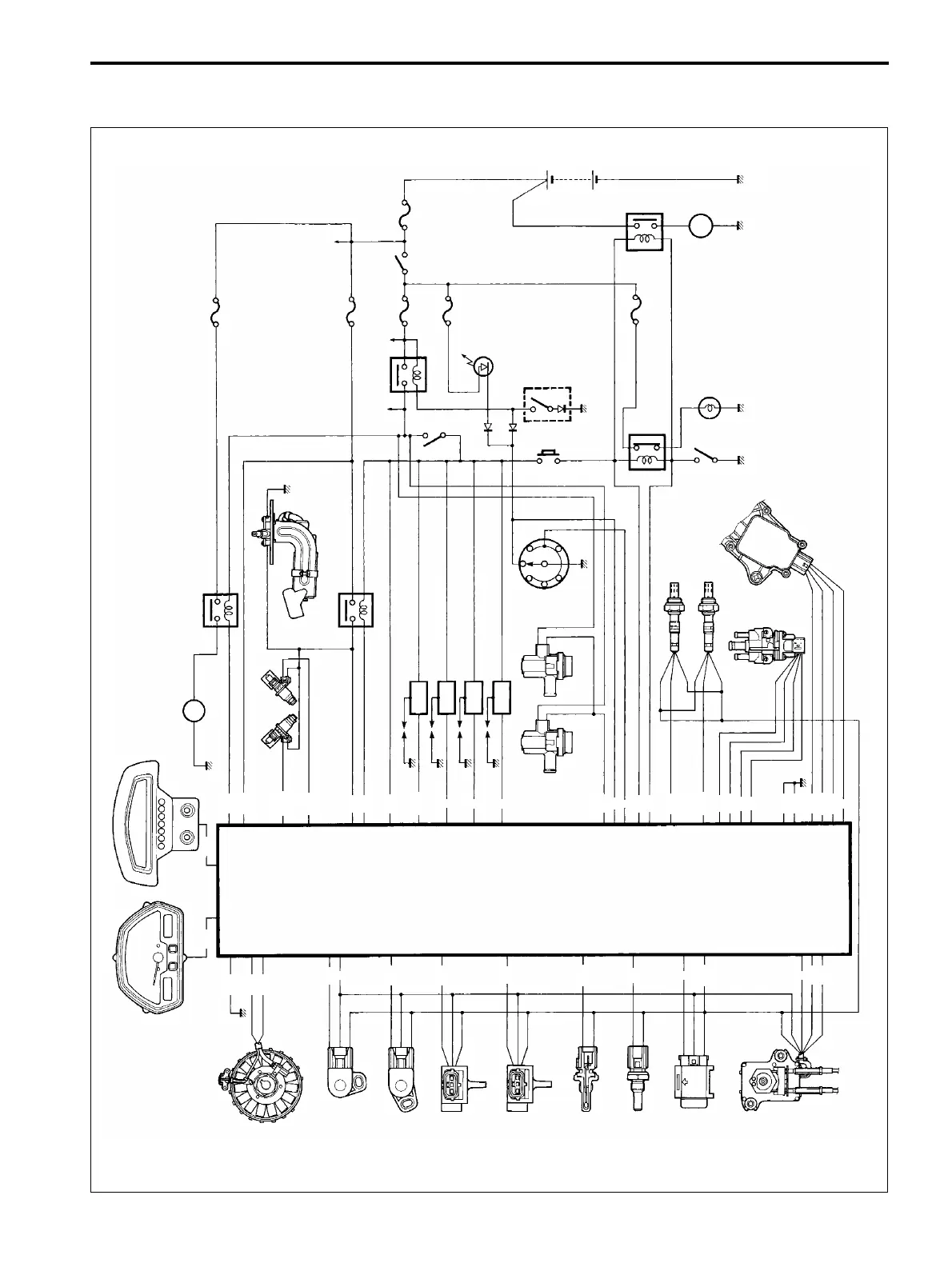

FI SYSTEM WIRING DIAGRAM
B/W
B/G B/G
G/W
G/Bl
R
P/B
Y/W
G/B
P/B
B/Bl
Dg
B
B/Br
Y
B/R R/B
B/W
Lg
W/Y
Lbl
W/Bl
W/G
B/Y
Y/G
P
Bl
R/Y
G
B
Y
W/Bl
O/G
Y/B Y/R
Gr/B
Gr/W
R/Bl
G/R
M
Ch
G
W/B
B/Lg
P/W
B/W
EXCVA
Tip-over sensor (TOS) Intake air temperature sensor (IATS) Engine coolant temperature sensor (ECTS) Intake air pressure sensor (IAPS) Secondary throttle position sensor (STPS) Throttle position sensor (TPS) Crankshaft position sensor (CKPS)
#2 #1
Speedometer
Tachometer
Fan relay
Fuel pump
Fuel pump relay
Ignition coil
PAIR solenoid valve
Gear position switch
#1 #1 #2 #2
Cooling fan motor
Fuel injector
5 S L Q P 9 J A 8 U X
6xc
F h g W ] G k | j i d s M b t B E Z m Y l z { 2 I 1 H
D 0 4 3
#1 #2
Oxygen sensor (O2S) (Except for E03, 28, 33)
Idle speed control valve (ISCV)
Clutch lever position switch
Headlight
Headlight relay
Starter button
Neutral indicator light
Side-stand relay
Ignition switch
15 A 10 A 15 A 30 A 15 A
Starter motor
Starter relay
Battery
Side-stand switch
Engine stop
switch
Secondary throttle valve actuator (STVA)
M
(Except for E03, 28, 33)
14- VZR1800 ('08-MODEL)12

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
