– 13 –

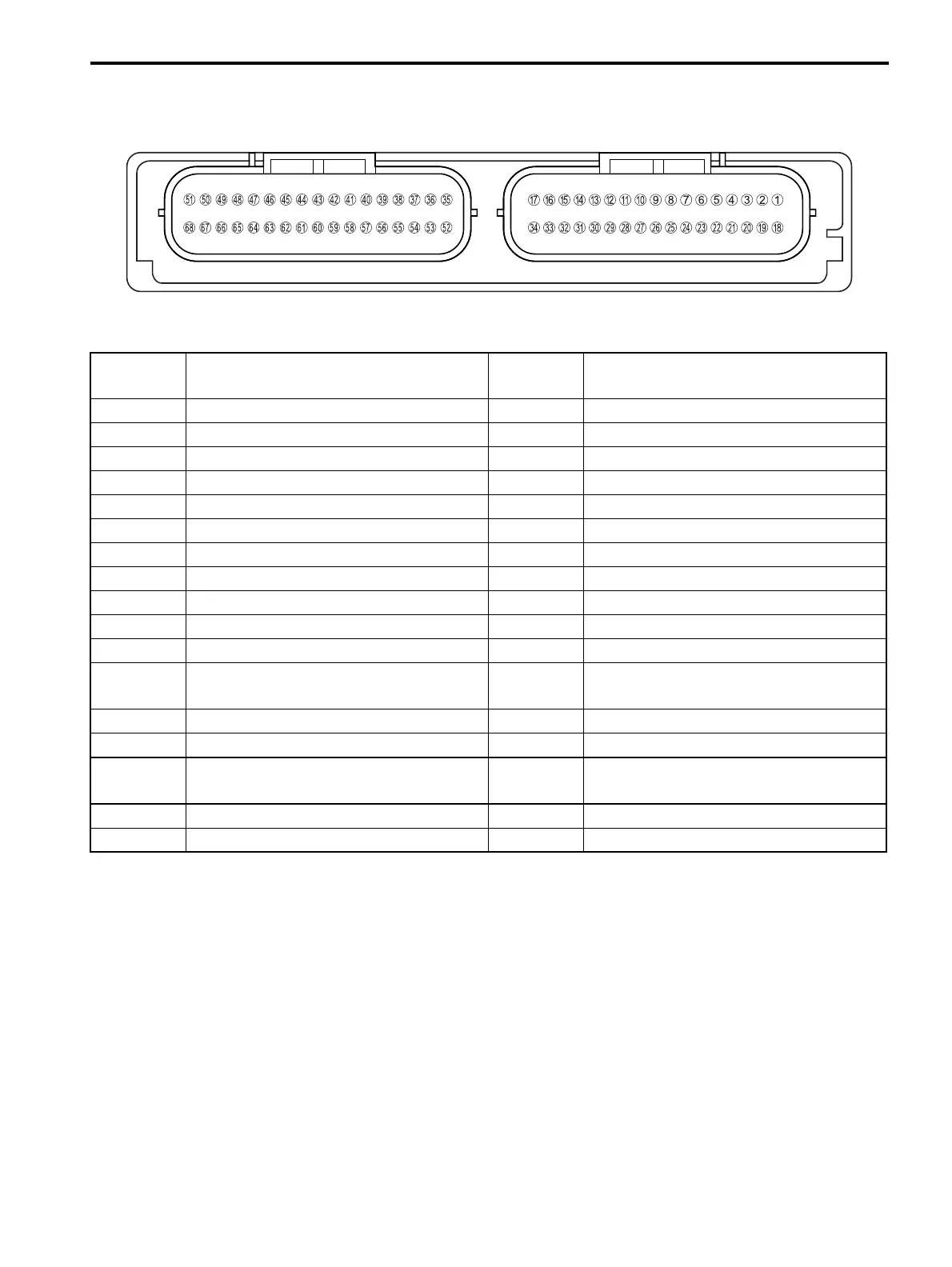

ECM TERMINAL
TERMINAL
NO.
CIRCUIT
TERMINAL
NO.
CIRCUIT
1 STVA signal (STVA. 2A) H STVA signal (STVA. 2B)
2 STVA signal (STVA. 1A) I STVA signal (STVA. 1B)
3 EXCVA power (MO–) J STP sensor signal (STP)
4 EXCVA power (MO+) K Ignition switch signal
5 EXCVA position sensor (MPS) L TO sensor signal (TOS)
6 Serial data for speedometer M GP switch signal (GP)
7 Blank N Blank
8 TP sensor signal (TP) O Blank
9 IAP sensor signal #1 (IAP. 1) P IAP sensor signal #2 (IAP. 2)
0 ECT sensor signal (ECT) Q IAT sensor signal (IAT)
A Power source for sensors (VCC) R Blank
B
O2 sensor signal #1 (O2S)
[For E-02, 19, 24, 51]
S Sensors ground (E2)
C Blank T Blank
D CKP sensor signal (CKP+) U CKP sensor signal (CKP–)
E
O2 sensor signal #2 (O2S)
[For E-02, 19, 24, 51]
V Serial data for self-diagnosis
F Power source for back-up W Power source for fuel injector (VM)
G Power source X ECM ground (E1)
VZR1800 ('08-MODEL)14-13

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
