ELECTRICAL SYSTEM 10-19
SIDE STAND/IGNITION INTERLOCK SYSTEM
PARTS INSPECTION
Check the interlock system for proper operation. If the interlock
system does not operate properly, check each component for
damage or abnormalities. If any abnormality is found, replace
the component with a new one.

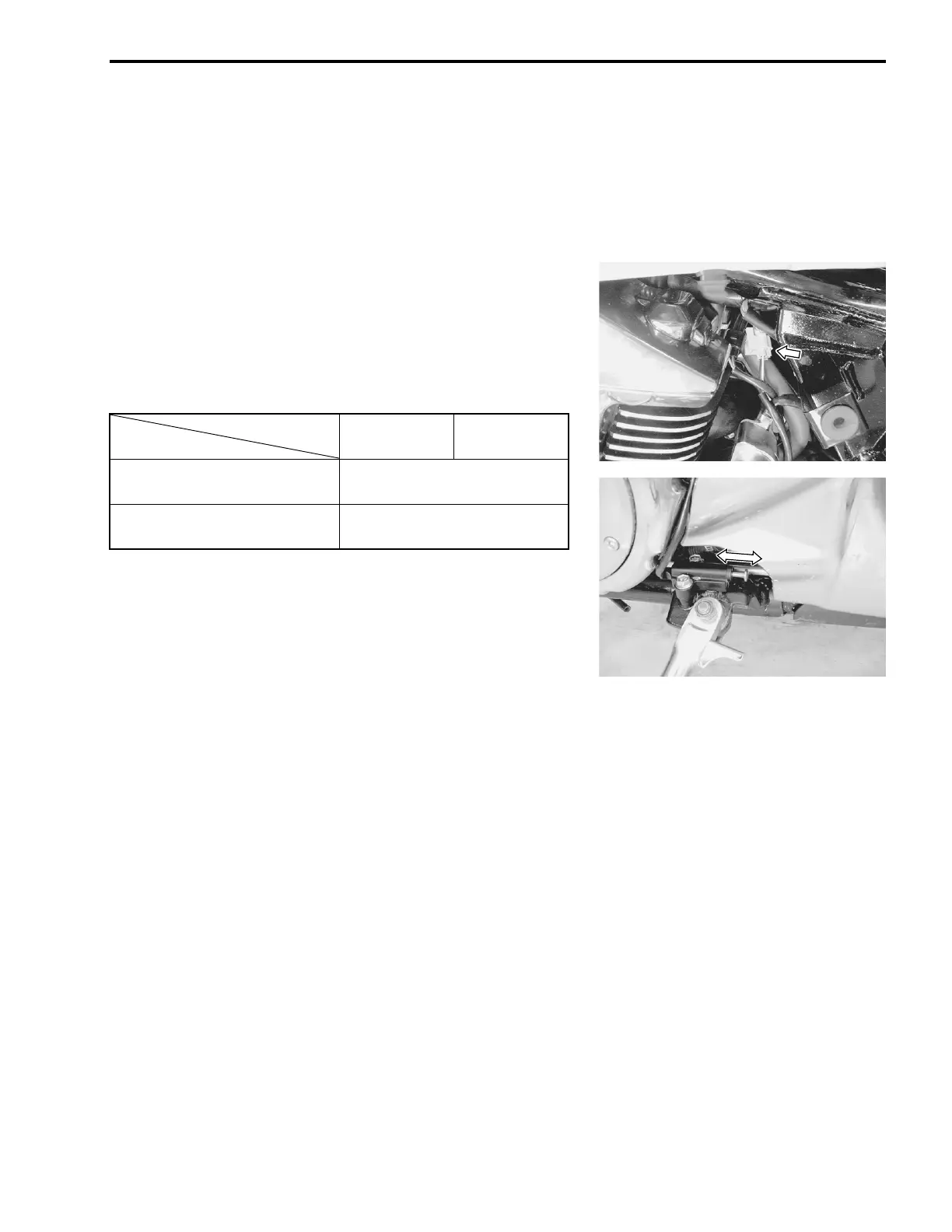

SIDE-STAND SWITCH
• Remove the left frame side cover. (!9-5)
• Disconnect the side-stand switch coupler and measure the
voltage between Green and Black/White lead wires.
" 09900-25008: Multi-circuit tester set
) Tester knob indication: Diode test (*)
NOTE:
If the tester reads 1.4 V and below when the tester probes are
not connected, replace its battery.
Green
(+ Probe)
Black/White
(- Probe)
ON
(Side-stand up)
0.4 – 0.6 V
OFF
(Side-stand down)
1.4 V and more
(Tester’s battery voltage)
