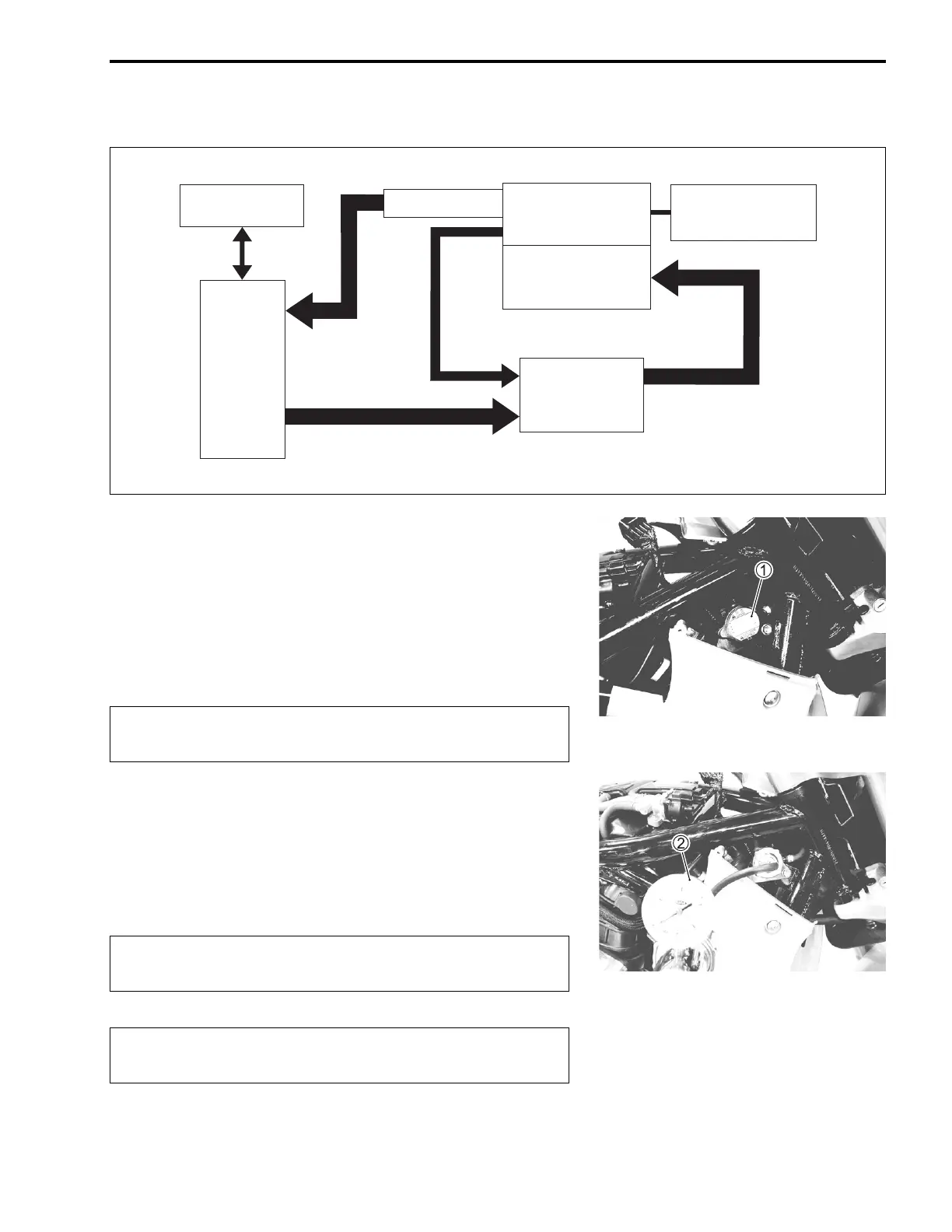

COOLING AND LUBRICATION SYSTEM 8-3
COOLING CIRCUIT
COOLING CIRCUIT INSPECTION
Before removing the radiator and draining the engine coolant,
inspect the cooling circuit for tightness.
• Remove the fuel tank. (#6-3)
• Remove the left frame head cover. (#9-6)
• Remove the radiator cap 1 and connect the tester 2 to the
filler.
"
• Give a pressure of about 110 kPa (1.1 kgf/cm², 15.6 psi) and
see if the system holds this pressure for 10 seconds.
• If the pressure should fall during this 10-second interval, it
means that there is a leaking point in the system. In such a
case, inspect the entire system and replace the leaking com-
ponent or part.
"
!
Do not remove the radiator cap when the engine is
hot.
WATER
PUMP
RADIATOR
ENGINE COOLANT
TEMPERATURE
SENSOR
THERMOSTAT
CYLINDER HEAD
CYLINDER
RESERVOIR
TANK
When removing the radiator cap tester, put a rag on
the filler to prevent spouting of engine coolant.
Do not allow the pressure to exceed the radiator cap
release pressure, or the radiator can be damaged.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
