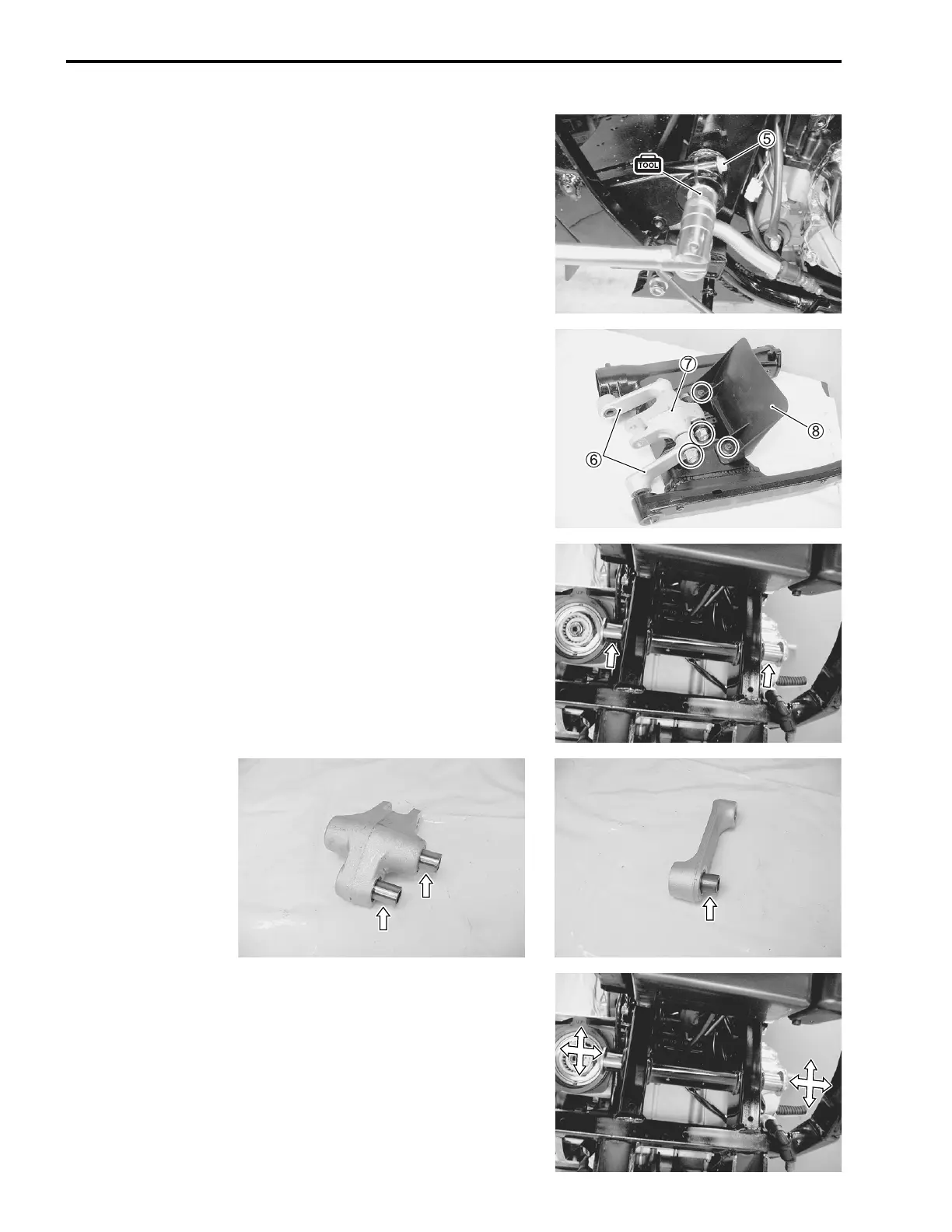

9-42 CHASSIS
• Loosen the swingarm pivot pinch bolt 5.
• Loosen the swingarm pivot shaft with the special tool.
% 09944-28320: Hexagon socket
• Draw out the swingarm pivot shaft.
• Remove the rear suspension assembly.
• Remove the cushion rods 6 and cushion lever 7.
• Remove the rear fender 8.
INSPECTION AND DISASSEMBLY
SPACER
• Remove the spacers from frame.
• Remove the spacers from the cushion lever.
• Remove the spacers from the cushion rod.
• Inspect the spacers for any flaws or other damage. If any
defects are found, replace the spacers with new ones.
FRAME BEARING
• Insert the spacer into bearing and check the play when mov-
ing the spacer up and down.
• If excessive play is noted, replace the bearing with a new one.
