CHASSIS 9-31
INSTALLATION

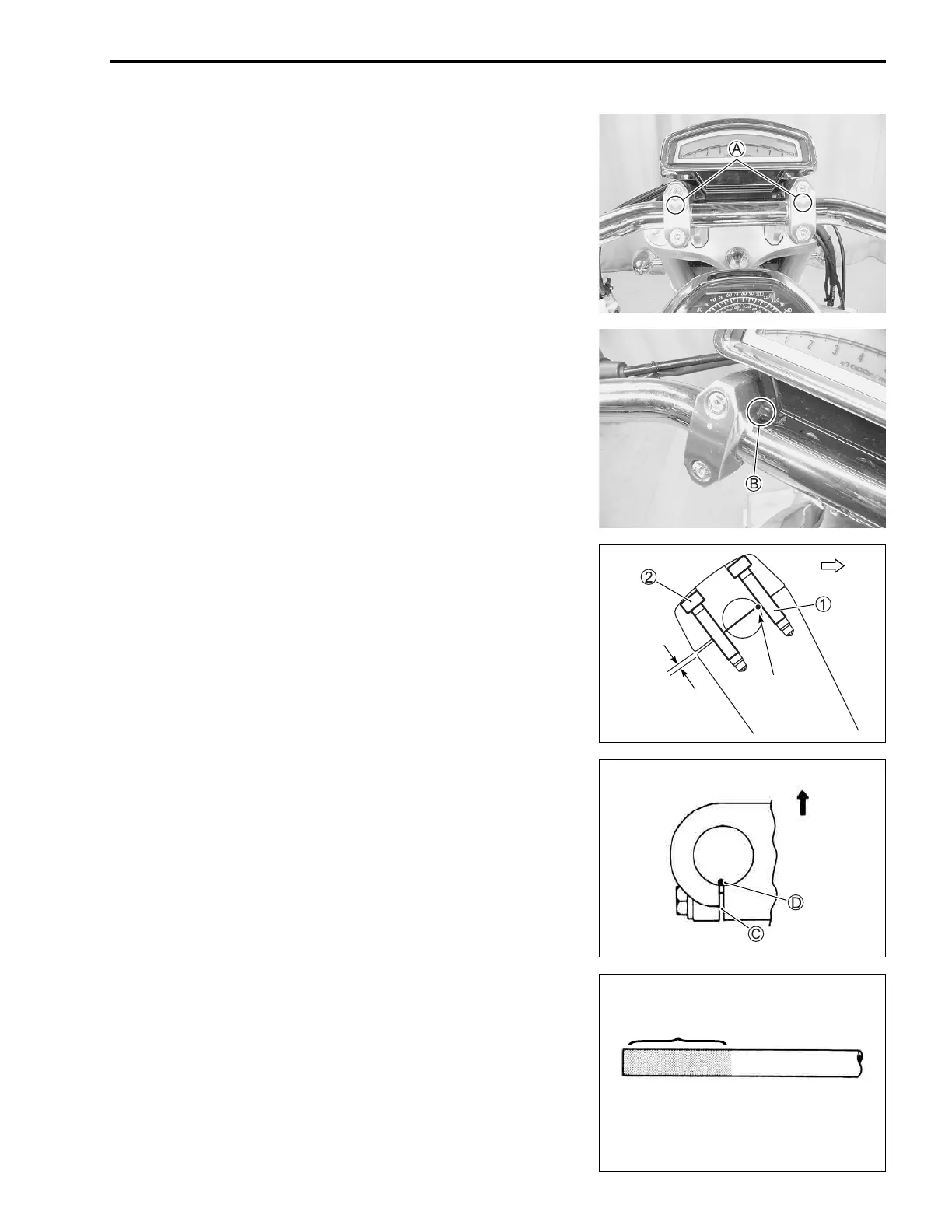

Install the handlebar in the reverse order of removal. Pay atten-
tion to the following points:
• When setting the handlebar clamp to the handlebar holder,
face the punched mark A to the forward.
• Align the punched mark B on handlebars with the handlebar
clamp mating surface as shown.
• First, tighten the handlebar clamp bolts 1 to the half of speci-
fied torque, and then tighten the handlebar clamp bolts 1 and
2 to the specified torque.
# Handlebar clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Install the clutch lever holder, align the holder’s mating sur-
face C with punched mark D on the handlebars.
• Apply a handle grip bond onto the left handlebars before
installing the handlebar grip.
Forward
Punch mark
Clearance
Up side
Handle grip bond
