7-4 EXHAUST SYSTEM
EXCVA AND EXCV INSTALLATION

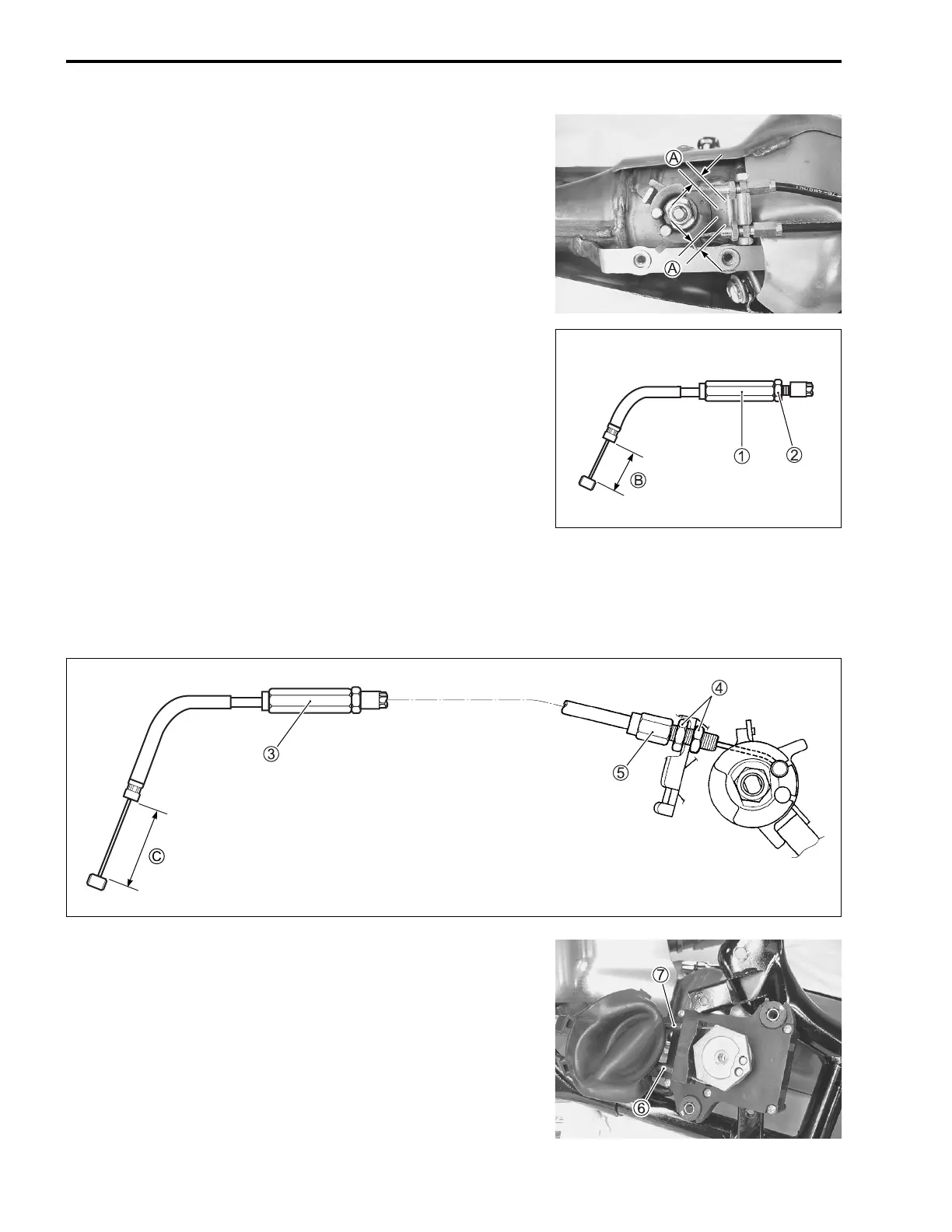

Install the EXCVA and EXCV in the reverse order of removal.
Pay attention to the following points:
• Connect the EXCV cables temporarily to the EXCV pulley.
• Adjust the clearance A between the adjuster end and EXCV
pulley to provide 4 mm (0.16 in) and more.
• Make the No. 1 cable straight and turn the No. 1 cable
adjuster 1 in or out until the inner cable length B becomes
42 – 43 mm (1.65 – 1.69 in).
• After adjusting the inner cable length B, tighten the lock nut
2.
No. 1 cable: 11276-48G0
• Make the No. 2 cable straight and turn in the cable adjuster 3 fully.
No. 2 cable: 11277-48G0
• Loosen the lock nuts 4 and turn the No. 2 cable adjuster 5 in or out until the inner cable length C
becomes 58 – 59 mm (2.28 – 2.32 in).
• After adjusting the inner cable length C, tighten the lock nuts 4.
• Connect the No. 1 cable 6 and No. 2 cable 7 to the EXCVA
pulley.
