Suzuki VZR1800 2008 User Manual

9-6 CHASSIS

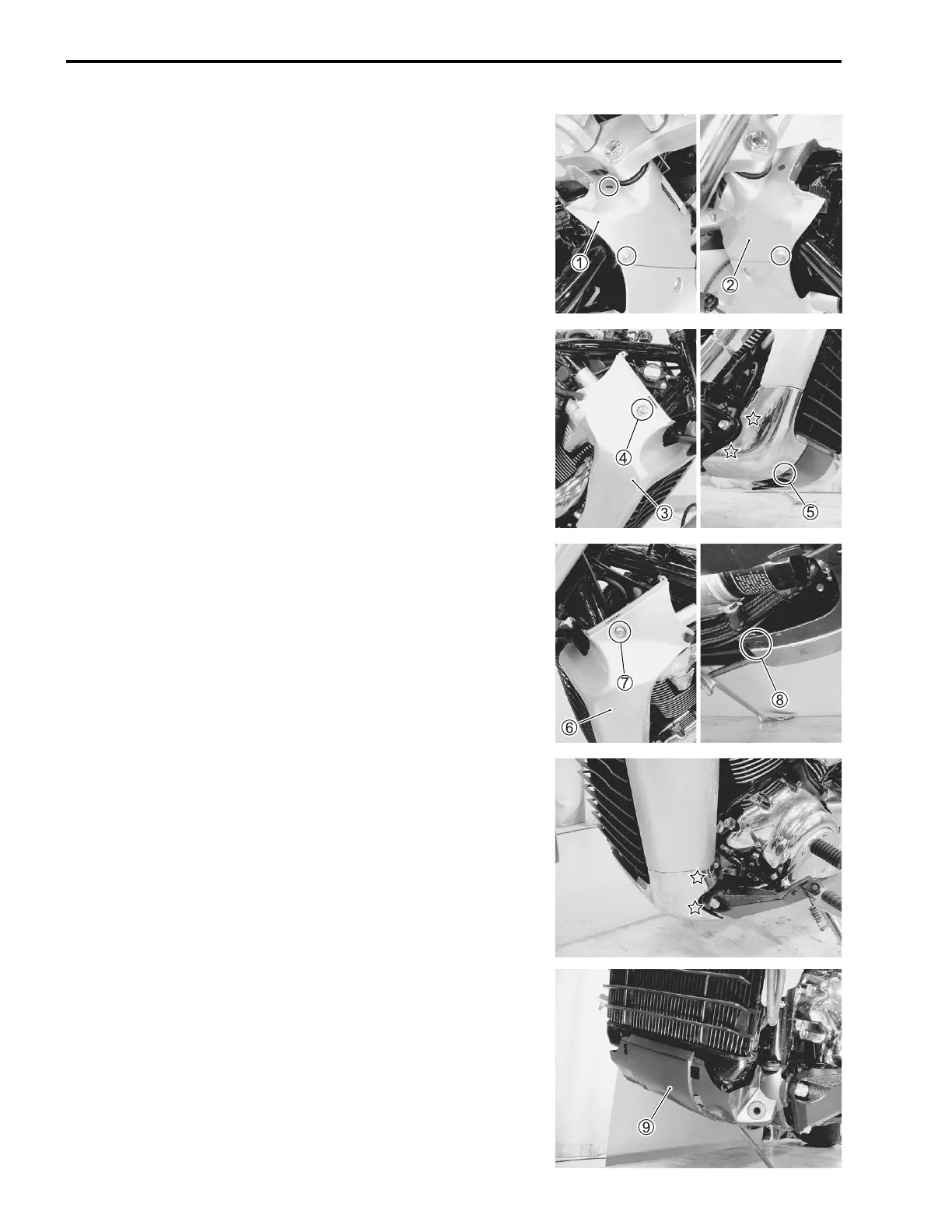

FRAME HEAD COVER AND RADIATOR
COVER
REMOVAL
• Remove the fuel tank. (!6-3)
• Remove the right frame head cover 1 and left frame head
cover 2.
• Remove the right radiator cover 3 by removing the bolt 4
and fastener 5.
NOTE:
“"” indicates hook location.
• Remove the left radiator cover 6 by removing the bolt 7 and
fastener 8.
NOTE:
“"” indicates hook location.
• Remove the radiator bottom cover 9.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
