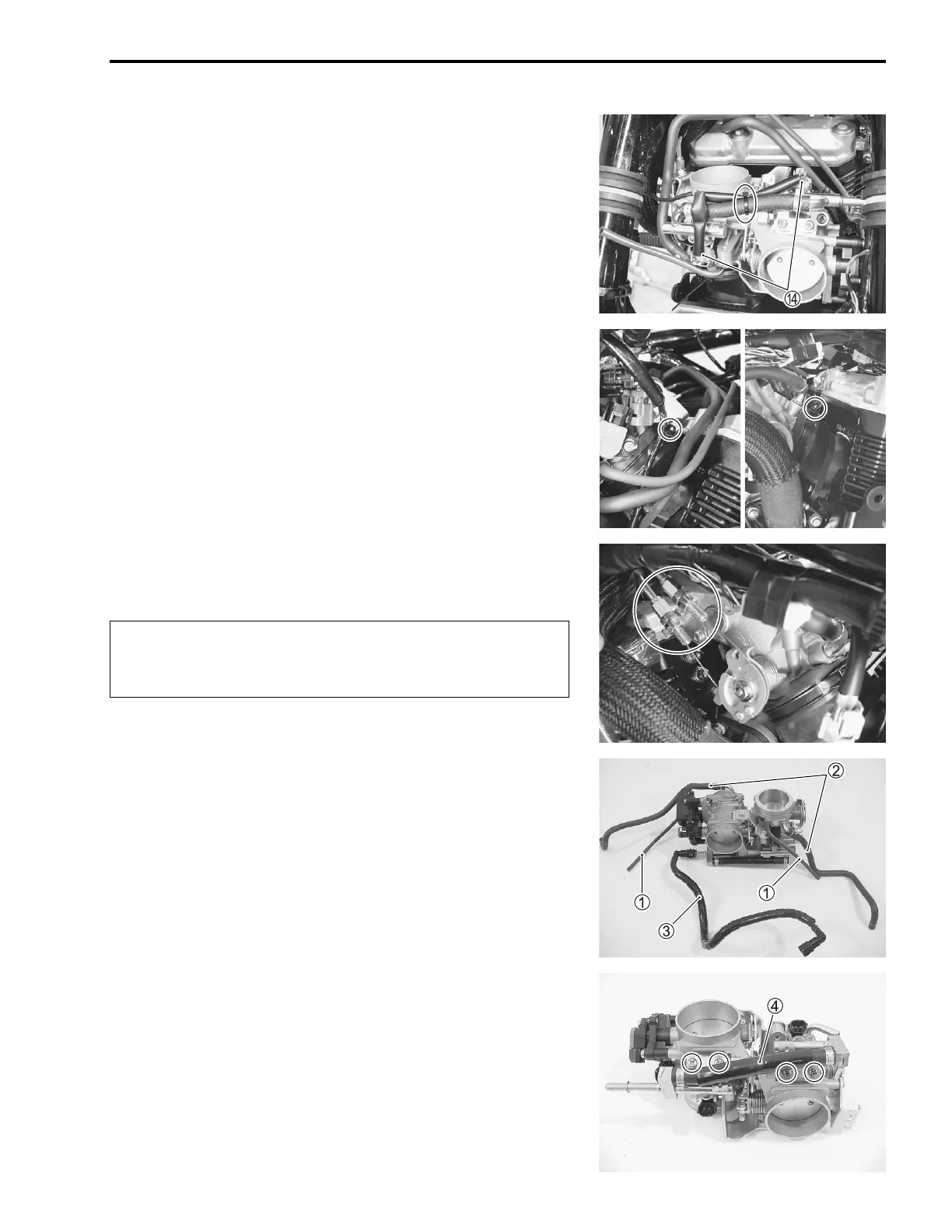

FUEL SYSTEM AND THROTTLE BODY 6-15
• Disconnect the clamp and fuel injector lead wire couplers D.
• Loosen the throttle body clamp screws at the intake pipe side.
• Disconnect the throttle cables from their drum.
• Remove the throttle body assembly.
"
THROTTLE BODY DISASSEMBLY
• Disconnect the IAP sensor vacuum hoses 1, ISC valve
hoses 2 and fuel feed hoses 3.
• Remove the fuel delivery pipes and hose assembly 4.
Do not snap the throttle valve from full open to full
close after disconnecting the throttle cables. It may
cause damage to the throttle valve and throttle body.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
