Suzuki VZR1800 2008 User Manual

– 18 –

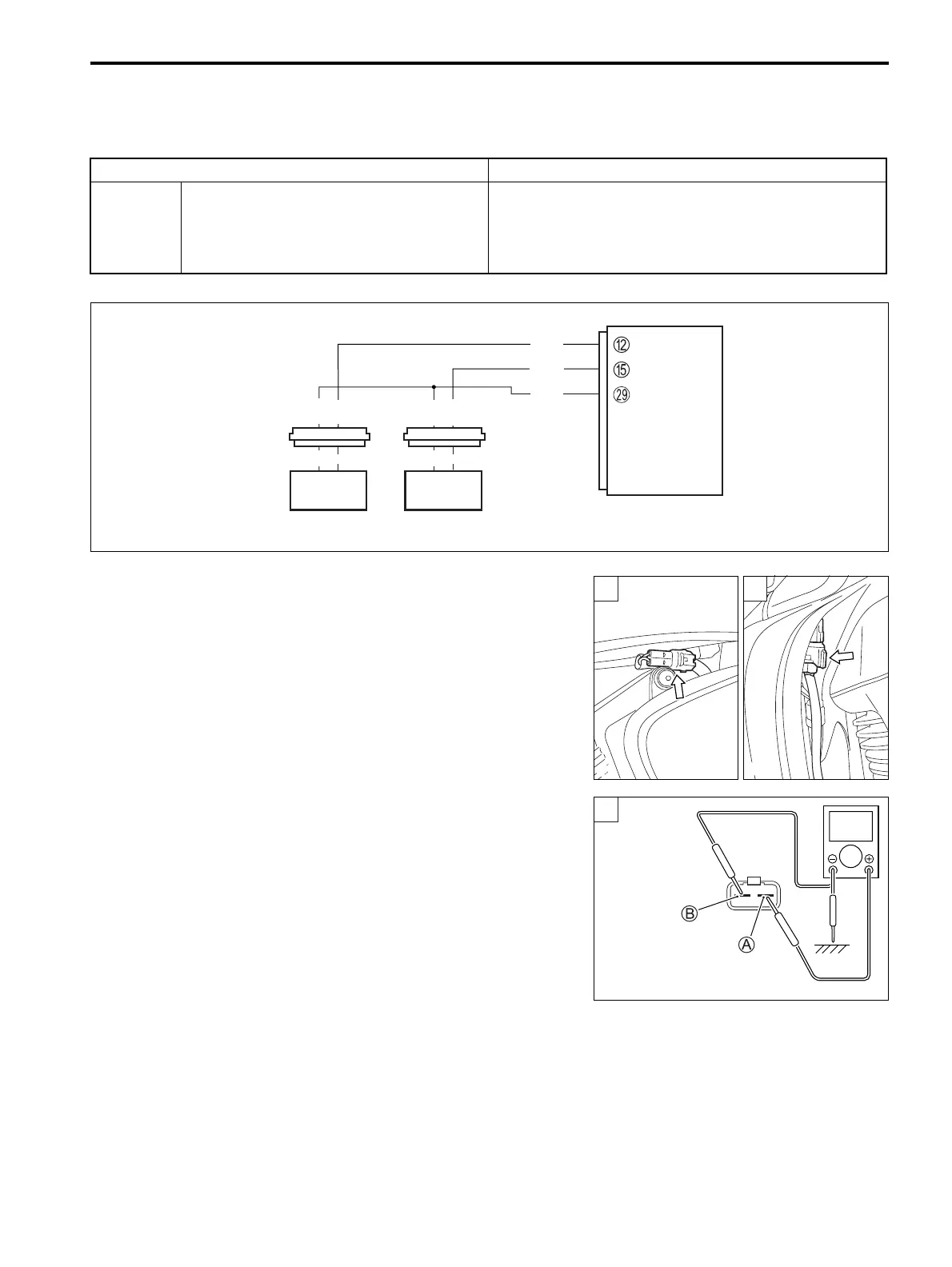

“C44” (P0156) or “C64” (P0130) O2 SENSOR (O2S) CIRCUIT
MALFUNCTION (FOR E-02, 19, 24, 51)
INSPECTION
Step 1
(When indicating C44/P0156 for O2 sensor #2)
(When indicating C64/P0130 for O2 sensor #1)
1) Turn the ignition switch OFF.
2) Check the O2 sensor for loose or poor contacts.
If OK, then check the O2 sensor lead wire continuity.
3) Disconnect the O2 sensor coupler.
4) Check the continuity between W/G (#1) or W/Bl (#2) wire A
and ground.
5) Also, check the continuity between W/G (#1) or W/Bl (#2)
wire A and B/Br wire B. If the sound is not heard from the
tester, the circuit condition is OK.
 09900-25008: Multi-circuit tester set
 Tester knob indication: Continuity test ()
DETECTED CONDITION POSSIBLE CAUSE
C44/C64
(P0156/
P0130)
O2 sensor output voltage is not input to
ECM during engine operation and run-
ning condition.
(Sensor voltage < 0.45 V)
• O2 sensor circuit open or shorted to ground.
• Fuel system malfunction.
• ECM malfunction.
ECM
O2 sensor #1
(Rear)
O2 sensor #2
(Front)
O2S. R
O2S. F
E2
B/Br
W/Bl
W/G
Gr
B
Gr
B
B/Br
W/G
B/Br
W/Bl
1
#2
1
#1
1
?
VZR1800 ('08-MODEL) 14-19

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
